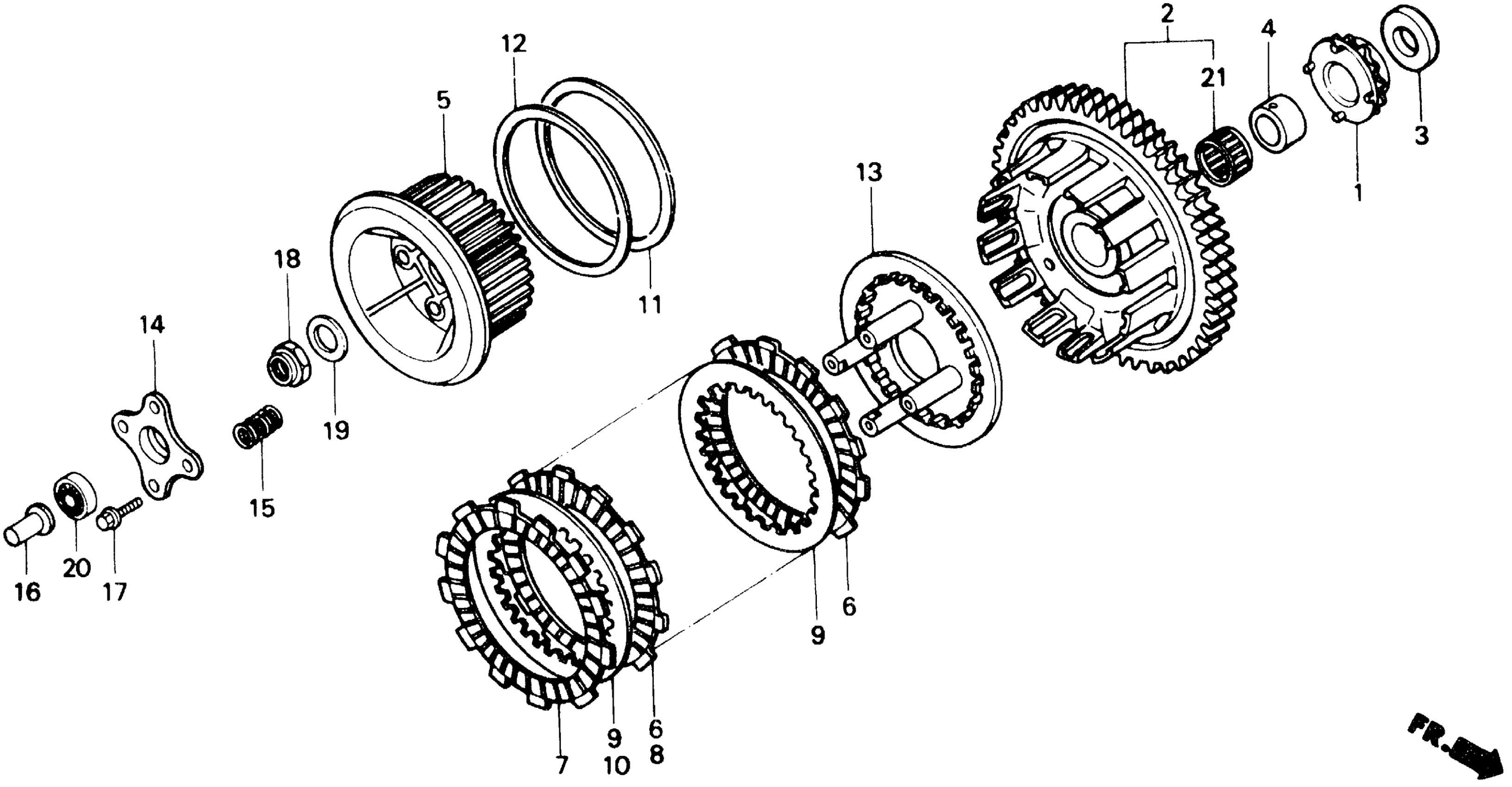

Honda CBR600FA (88) HURRICANE 600, JPN, VIN# JH2PC190-JM100004 TO JH2PC190-JM105415 CLUTCH Diagram

#

Description
Price

1

SPROCKET (25T) This part replaces 15131-KT8-000.

15131-MY9-790

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE)

22100-MN4-020

Unavailable

3

COLLAR (22X38X5.5) (NOT AVAILABLE)

22117-MN4-000

Unavailable

4

GUIDE, CLUTCH (OUTER) (NOT AVAILABLE)

22118-MN4-000

Unavailable

5

CENTER SET, CLUTCH This part replaces 22120-MN4-010.

04103-MY9-305

Unavailable

6

DISK, CLUTCH FRICTION | Use from Engine SN 2113254

22201-KY2-000

$14.84

6

DISK, CLUTCH FRICTION

22201-KY2-000

$14.84

6

DISK, CLUTCH FRICTION This part replaces 22201-MA6-000.

22201-KY2-000

$14.84

7

DISK, CLUTCH FRICTION

22201-MA7-000

$15.90

8

DISK, CLUTCH FRICTION This part replaces 22201-MN4-000.

22201-MT6-601

$16.54

8

DISK, CLUTCH FRICTION

22201-MT6-601

$16.54

9

PLATE, CLUTCH | Use up to Engine SN 2109928 This part replaces 22321-MN4-000.

22321-GHB-811

$12.02

9

PLATE, CLUTCH | Use from Engine SN 2109929 This part replaces 22321-MN4-000.

22321-GHB-811

$12.02

9

PLATE, CLUTCH | Use up to Engine SN 2109928 This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

9

PLATE, CLUTCH | Use from Engine SN 2109929 This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

9

PLATE, CLUTCH | Use up to Engine SN 2109928 This part replaces 22321-374-000.

22321-GHB-811

$12.02

9

PLATE, CLUTCH | Use from Engine SN 2109929 This part replaces 22321-374-000.

22321-GHB-811

$12.02

10

PLATE B, CLUTCH (2.0) | Use from Engine SN 2109929

22322-MN4-000

$16.72

11

SPRING, CLUTCH PLATE

22325-MN4-000

$10.43

12

SEAT, JUDDER SPRING

22326-MN4-000

Unavailable

13

PLATE, CLUTCH PRESSURE

22350-MN4-000

Unavailable

14

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-MN4-010

Unavailable

15

SPRING, CLUTCH

22401-MN4-000

$5.51

16

ROD, CLUTCH LIFTER (NOT AVAILABLE) This part replaces 22847-KT8-010.

22847-KY2-000

Unavailable

17

BOLT, FLANGE (6X25) BOLT, FLANGE (6X28)

90003-MM4-000

$3.15

18

NUT, LOCK (20MM)

90241-KM9-000

$11.62

19

WASHER, LOCK

90432-121-000

$4.21

20

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$17.08

21

BEARING, NEEDLE (30X37X24) (TOYO) (NOT AVAILABLE)

91024-MN4-003

Unavailable
