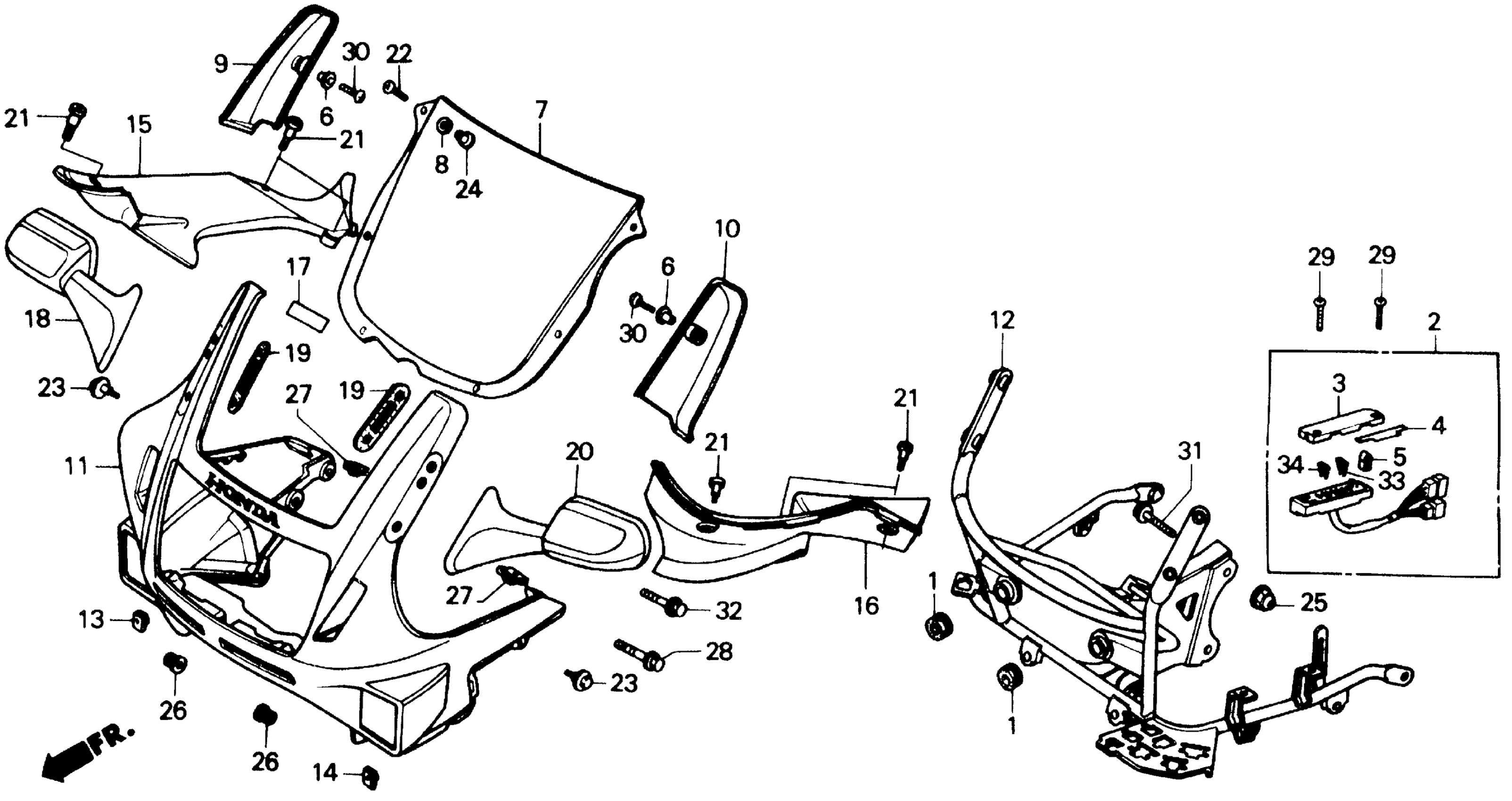

Honda CBR600FA (87) HURRICANE 600, JPN, VIN# JH2PC190-HM000014 TO JH2PC190-HM008281 UPPER COWL Diagram

#

Description
Price

1

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.80

2

BOX ASSY., FUSE This part replaces 38200-MN4-671.

38200-MN4-405

Unavailable

3

COVER, FUSE (NOT AVAILABLE)

38201-KT8-003

Unavailable

4

LABEL, FUSE (NOT AVAILABLE)

38215-MB0-910

Unavailable

5

PULLER, FUSE (DAIICHI)

38235-SA5-004

Unavailable

6

COLLAR, HEADLIGHT SETTING

61304-379-690

$11.00

7

SCREEN,SET WIND This part replaces 64200-MN4-000.

64110-MN4-405

Unavailable

8

RUBBER B, WINDSCREEN

64212-KM3-000

$3.46

9

COVER, R. COWL STAY (NOT AVAILABLE)

64215-MN4-000

Unavailable

10

COVER, L. COWL STAY (NOT AVAILABLE)

64216-MN4-000

Unavailable

11

COWL SET, FR. (UPPER) *NH193P* (WL) (PEARL CRYSTAL WHITE) (NOT AVAILABLE) | Pearl crystal white NH193P;

64222-MN4-670ZA

Unavailable

11

COWL SET, FR. (UPPER) *NH1* (WL) (BLACK) (NOT AVAILABLE) | Black NH1;

64222-MN4-670ZB

Unavailable

12

STAY, COWL (UPPER) (NOT AVAILABLE)

64501-MN4-000

Unavailable

13

NUT, CLIP (6MM) (SOURCE: VINTAGE PARTS INC.)

64527-KT8-710

Unavailable

14

NUT, CLIP (6MM) (SOURCE: VINTAGE PARTS INC.)

64527-MN4-000

Unavailable

15

PANEL, R. (INNER) *R134* (FIGHTING RED) (NOT AVAILABLE) | Pearl crystal white NH193P;

64580-MN4-000ZB

Unavailable

15

PANEL, R. (INNER) *R110* (MONZA RED) (NOT AVAILABLE) | Black NH1;

64580-MN4-000ZC

Unavailable

16

PANEL, L. (INNER) *R134* (FIGHTING RED) (NOT AVAILABLE) | Pearl crystal white NH193P;

64590-MN4-000ZB

Unavailable

16

PANEL, L. (INNER) *R110* (MONZA RED) (NOT AVAILABLE) | Black NH1;

64590-MN4-000ZC

Unavailable

17

LABEL, WINDSCREEN CAUTION (NOT AVAILABLE)

87522-463-930

Unavailable

18

MIRROR, R. BACK *NH1* (BLACK) (NOT AVAILABLE) | Black NH1;

88110-MN4-003ZB

Unavailable

18

MIRROR, R. BACK *NH196* (ROSS WHITE) (NOT AVAILABLE) | Pearl crystal white NH193P;

88110-MN4-003ZC

Unavailable

19

RUBBER, MIRROR SETTING (NOT AVAILABLE)

88112-MM5-000

Unavailable

20

MIRROR, L. BACK *NH1* (BLACK) (NOT AVAILABLE) | Black NH1

88120-MN4-003ZB

Unavailable

20

MIRROR, L. BACK *NH196* (ROSS WHITE) (NOT AVAILABLE) | Pearl crystal white NH193P;

88120-MN4-003ZC

Unavailable

21

SCREW, PAN (5X14)

90107-MN4-000

$4.66

22

SCREW, SCREEN SETTING

90111-MB6-000

$2.33

23

BOLT, FLANGE (6MM) | Use from Frame SN HM006706

90111-187-000

$5.59

23

BOLT, FLANGE (6MM) | Use up to Frame SN HM006705

90116-ME9-000

$3.35

24

NUT, SCREEN SETTING (NOT AVAILABLE)

90202-MB6-000

Unavailable

25

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

25

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

26

NUT, INSERT (5X0.8)

90316-MJ1-000

$3.53

27

NUT, SPRING (5MM) | Use up to Frame SN HM000108

90320-692-000

$5.98

27

NUT, SPRING (5MM) | Use from Frame SN HM000109

90322-MM5-000

$5.74

28

BOLT-WASHER (6X20)

93404-06020-08

$1.62

29

SCREW, PAN (4X10) SCREW, PAN (5X10)

93500-04010-0A

$1.49

30

SCREW, PAN (5X14)

93500-05014-0G

$3.67

31

BOLT, FLANGE (8X40) This part replaces 95800-08040-08.

95801-08040-08

$2.17

31

BOLT, FLANGE (8X40)

95801-08040-08

$2.17

32

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

32

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

33

FUSE, BLADE (10A)

98200-31000

$1.49

34

FUSE, BLADE (15A)

98200-31500

$1.49
