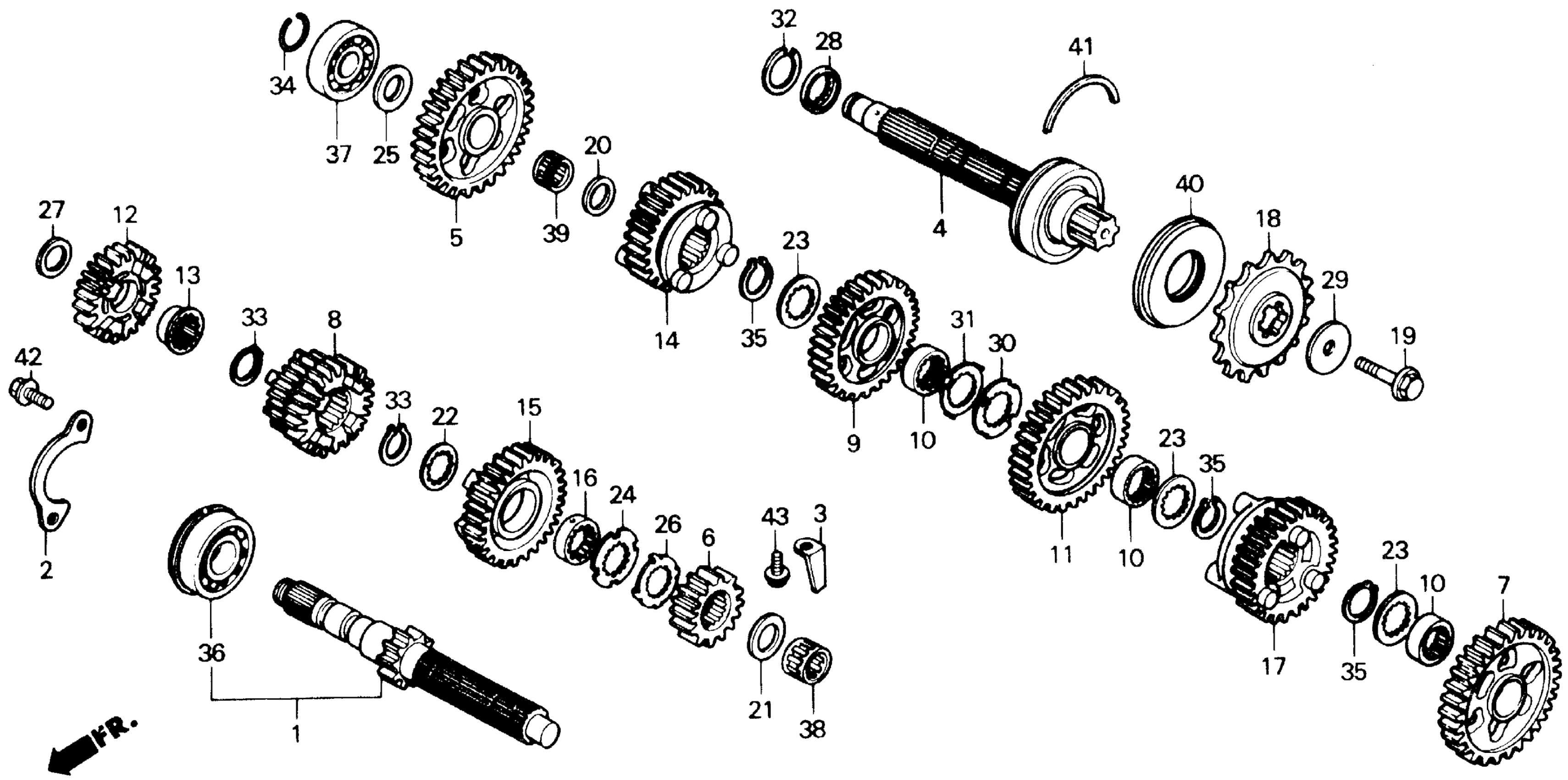

Honda CBR600FA (87) HURRICANE 600, JPN, VIN# JH2PC190-HM000014 TO JH2PC190-HM008281 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (SOURCE: VINTAGE PARTS INC.)

23210-MN4-000

Unavailable

2

PLATE, BEARING SETTING (NOT AVAILABLE)

23213-MN4-000

Unavailable

3

PLATE B, BEARING SETTING (NOT AVAILABLE)

23214-MN4-000

Unavailable

4

COUNTERSHAFT (NOT AVAILABLE)

23220-MN4-000

Unavailable

5

GEAR, COUNTERSHAFT LOW (42T) (NOT AVAILABLE)

23421-MN4-000

Unavailable

6

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE) | Use up to Engine SN 2020218 This part replaces 23431-MN4-000.

23431-MN4-020

Unavailable

6

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE) This part replaces 23431-MN4-010.

23431-MN4-020

Unavailable

7

GEAR, COUNTERSHAFT SECOND (38T) (SOURCE: VINTAGE PARTS INC.)

23441-MN4-000

Unavailable

8

GEAR, MAINSHAFT THIRD & FOURTH (20T/22T) (NOT AVAILABLE) This part replaces 23451-MN4-000.

23451-MT6-600

Unavailable

9

GEAR, COUNTERSHAFT THIRD (36T) (NOT AVAILABLE)

23461-MN4-000

Unavailable

10

COLLAR, SPLINE (28X10) (SOURCE: VINTAGE PARTS INC.)

23462-MN4-000

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (33T) (NOT AVAILABLE)

23481-MN4-000

Unavailable

12

GEAR, MAINSHAFT FIFTH (22T) (NOT AVAILABLE) This part replaces 23491-MN4-000.

23491-MN4-010

Unavailable

13

COLLAR (25X28X11) (NOT AVAILABLE)

23495-MN4-000

Unavailable

14

GEAR, COUNTERSHAFT FIFTH (28T) (SOURCE: VINTAGE PARTS INC.) This part replaces 23501-MN4-000.

23501-MN4-010

Unavailable

14

GEAR, COUNTERSHAFT FIFTH (28T) (SOURCE: VINTAGE PARTS INC.)

23501-MN4-010

Unavailable

15

GEAR, MAINSHAFT SIXTH (23T) (NOT AVAILABLE) | Use up to Engine SN 2000553 This part replaces 23511-MN4-000.

23511-MN4-020

Unavailable

15

GEAR, MAINSHAFT SIXTH (23T) (NOT AVAILABLE) | Use from Engine SN 2000554 This part replaces 23511-MN4-010.

23511-MN4-020

Unavailable

16

COLLAR, SPLINE (25X12) (SOURCE: VINTAGE PARTS INC.)

23512-MN4-000

Unavailable

17

GEAR, COUNTERSHAFT SIXTH (26T) (NOT AVAILABLE) | Use up to Engine SN 2000553 This part replaces 23521-MN4-000.

23521-MN4-020

Unavailable

17

GEAR, COUNTERSHAFT SIXTH (26T) (NOT AVAILABLE) | Use from Engine SN 2000554 to 2001214 This part replaces 23521-MN4-010.

23521-MN4-020

Unavailable

17

GEAR, COUNTERSHAFT SIXTH (26T) (NOT AVAILABLE) | Use from Engine SN 2001215 This part replaces 23521-MN4-600.

23521-MN4-020

Unavailable

18

SPROCKET, DRIVE (15T) This part replaces 23801-MN4-000.

23801-MAL-600

Unavailable

19

BOLT, SPECIAL (10MM) (SOURCE: VINTAGE PARTS INC.)

90037-MN4-000

Unavailable

20

WASHER, THRUST (22.2MM)

90401-KE7-000

$4.20

21

WASHER, THRUST (17X31.5) (SOURCE: VINTAGE PARTS INC.)

90403-MN4-000

Unavailable

22

WASHER, SPLINE (25X31X1.5) (NOT AVAILABLE)

90451-MN4-000

Unavailable

23

WASHER, SPLINE (28X34X1.5) This part replaces 90452-MN4-000.

90451-MM5-000

$5.62

23

WASHER, SPLINE (28X34X1.5)

90451-MM5-000

$5.62

24

WASHER, SPLINE (25X1.2) (SOURCE: VINTAGE PARTS INC.)

90453-MN4-000

$5.34

25

WASHER, THRUST (20MM)

90454-428-000

$2.53

26

WASHER, LOCK (25MM) (NOT AVAILABLE)

90455-MN4-000

Unavailable

27

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

28

WASHER, SPECIAL SPLINE (NOT AVAILABLE)

90457-MN4-000

Unavailable

29

WASHER (10.2MM)

90459-438-000

$5.83

30

WASHER, SPLINE (28X1.6) (SOURCE: VINTAGE PARTS INC.)

90464-MM5-000

Unavailable

31

WASHER, LOCK (28MM) This part replaces 90465-MM5-000.

90465-MM5-010

Unavailable

32

CIRCLIP (OUTER) (28MM) (SOURCE: VINTAGE PARTS INC.)

90601-MN4-000

Unavailable

33

CIRCLIP (25MM)

90601-107-000

$3.74

34

CLIP (20MM) (NOT AVAILABLE)

90602-MN4-000

Unavailable

35

CIRCLIP (28MM)

90603-MN4-000

$4.11

36

BEARING, RADIAL BALL (6305) (NTN CORP.) (NOT AVAILABLE)

91002-MN4-003

Unavailable

37

BEARING, RADIAL BALL (6004) (KOYO) (NOT AVAILABLE) This part replaces 91004-MN4-003.

91004-MN4-004

Unavailable

37

BEARING, RADIAL BALL (6004) (KOYO) (NOT AVAILABLE)

91004-MN4-004

Unavailable

38

BEARING, NEEDLE (17X27X14.8) (TOYO)

91022-MN4-003

$10.08

39

BEARING, NEEDLE (22X26X11) This part replaces 91025-MN4-003.

91026-MB4-003

$14.48

39

BEARING, NEEDLE (22X26X11)

91026-MB4-003

$14.48

40

OIL SEAL (37X68X7.5) (ARAI) (NOT AVAILABLE)

91216-MN4-003

Unavailable

41

RING, BEARING SETTING (68MM) (SOURCE: VINTAGE PARTS INC.)

95015-26800

$4.92

42

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

43

BOLT, FLANGE (6X14) This part replaces 95701-06014-09.

95701-06014-00

$1.49

43

BOLT, FLANGE (6X14) This part replaces 95801-06014-09.

95701-06014-00

$1.49

43

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
