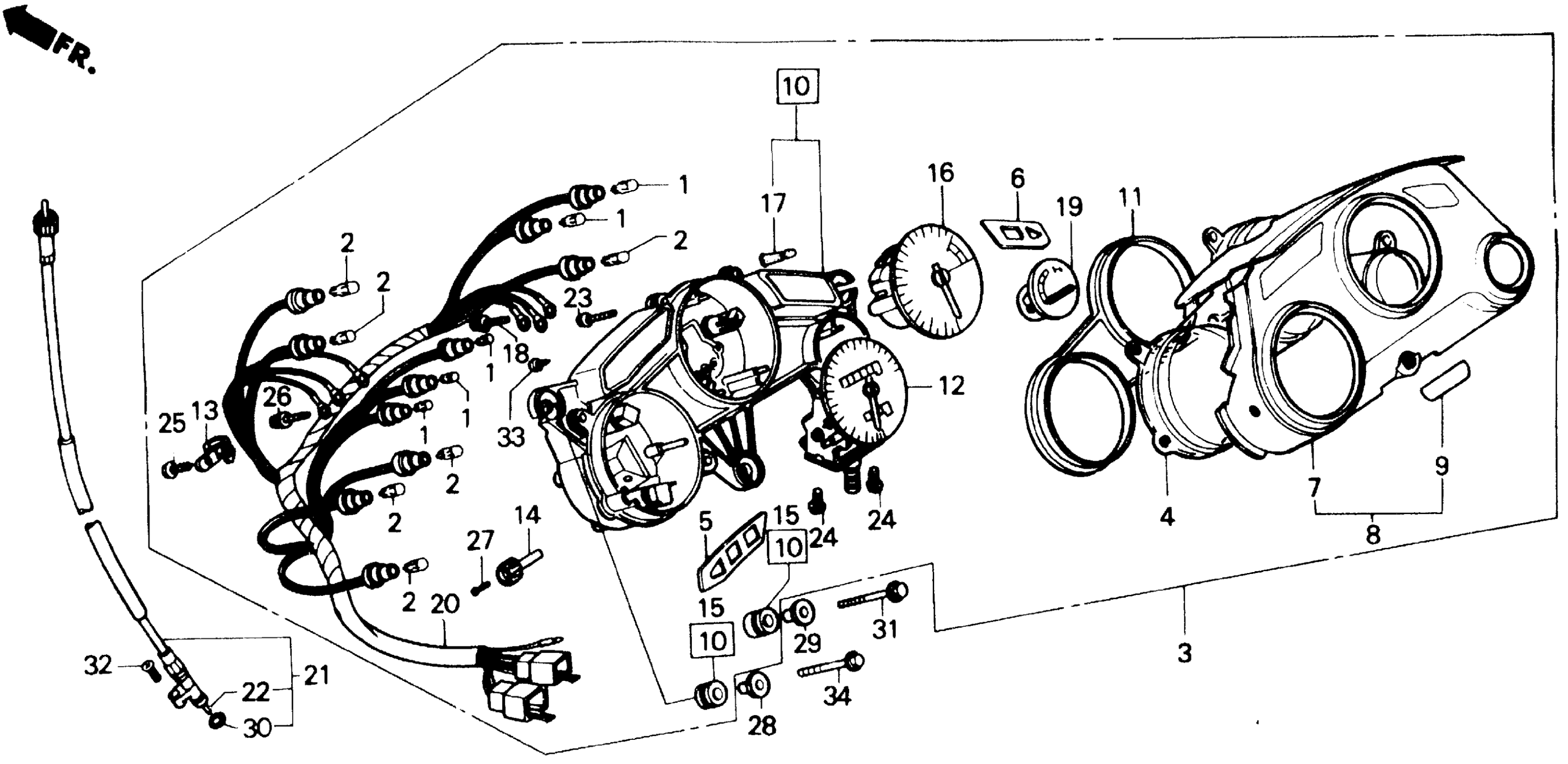

Honda CBR600FA (87) HURRICANE 600, JPN, VIN# JH2PC190-HM000014 TO JH2PC190-HM008281 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

2

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

2

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

2

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

3

METER ASSY., COMBINATION (NOT AVAILABLE)

37100-MN4-671

Unavailable

4

LENS ASSY., METER This part replaces 37102-MN4-008.

37102-MV9-601

Unavailable

5

LENS, L. SMOKE (SOURCE: VINTAGE PARTS INC.)

37103-MN4-008

Unavailable

6

LENS, R. SMOKE (NOT AVAILABLE)

37104-MN4-008

Unavailable

7

VISOR ASSY. (NOT AVAILABLE) This part replaces 37110-MN4-008.

37110-MT6-601

Unavailable

10

CASE ASSY., METER This part replaces 37120-MN4-601.

37120-MN4-930

Unavailable

11

PLATE ASSY., REFLECTING This part replaces 37130-MN4-008.

37130-MV9-601

Unavailable

12

SPEEDOMETER (MPH) (NOT AVAILABLE) This part replaces 37200-MN4-671.

37200-MT6-671

Unavailable

13

CLAMP

37215-KM1-670

$1.88

14

KNOB, TRIP METER (NOT AVAILABLE)

37220-445-008

Unavailable

15

RUBBER, METER MOUNTING

37244-MB2-008

$6.87

16

TACHOMETER This part replaces 37250-MN4-651.

37250-MN4-601

Unavailable

18

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

19

METER, TEMPERATURE (NOT AVAILABLE) This part replaces 37400-MN4-008.

37400-MT6-601

Unavailable

20

SOCKET (NOT AVAILABLE) This part replaces 37612-MN4-008.

37612-MN4-831

Unavailable

21

CABLE ASSY., SPEEDOMETER

44830-MN4-000

Unavailable

22

CABLE (INNER) (NOT AVAILABLE)

44831-MN4-000

Unavailable

23

SCREW, TAPPING (4X3) This part replaces 90032-ML7-671.

90133-SG0-A01

Unavailable

24

SCREW, FLANGE (4X8) (NOT AVAILABLE)

90101-GC8-008

Unavailable

25

SCREW, TAPPING (4X14)

90102-SB2-003

$4.05

26

SCREW-WASHER (3X10)

90108-GN2-008

$2.41

27

SCREW, PAN (2X6)

90158-KM7-911

$1.92

28

COLLAR (19X6.2X18) (NOT AVAILABLE)

90501-MN4-000

Unavailable

29

COLLAR (19X6.2X14.5) (NOT AVAILABLE)

90502-MN4-000

Unavailable

30

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

30

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

30

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

31

BOLT, RECESSED (6X25) This part replaces 92300-06025-0A.

92301-06025-0A

$1.49

31

BOLT, RECESSED (6X25)

92301-06025-0A

$1.49

32

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

33

SCREW, TAPPING (4X20)

93903-24520

$1.49

34

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

34

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
