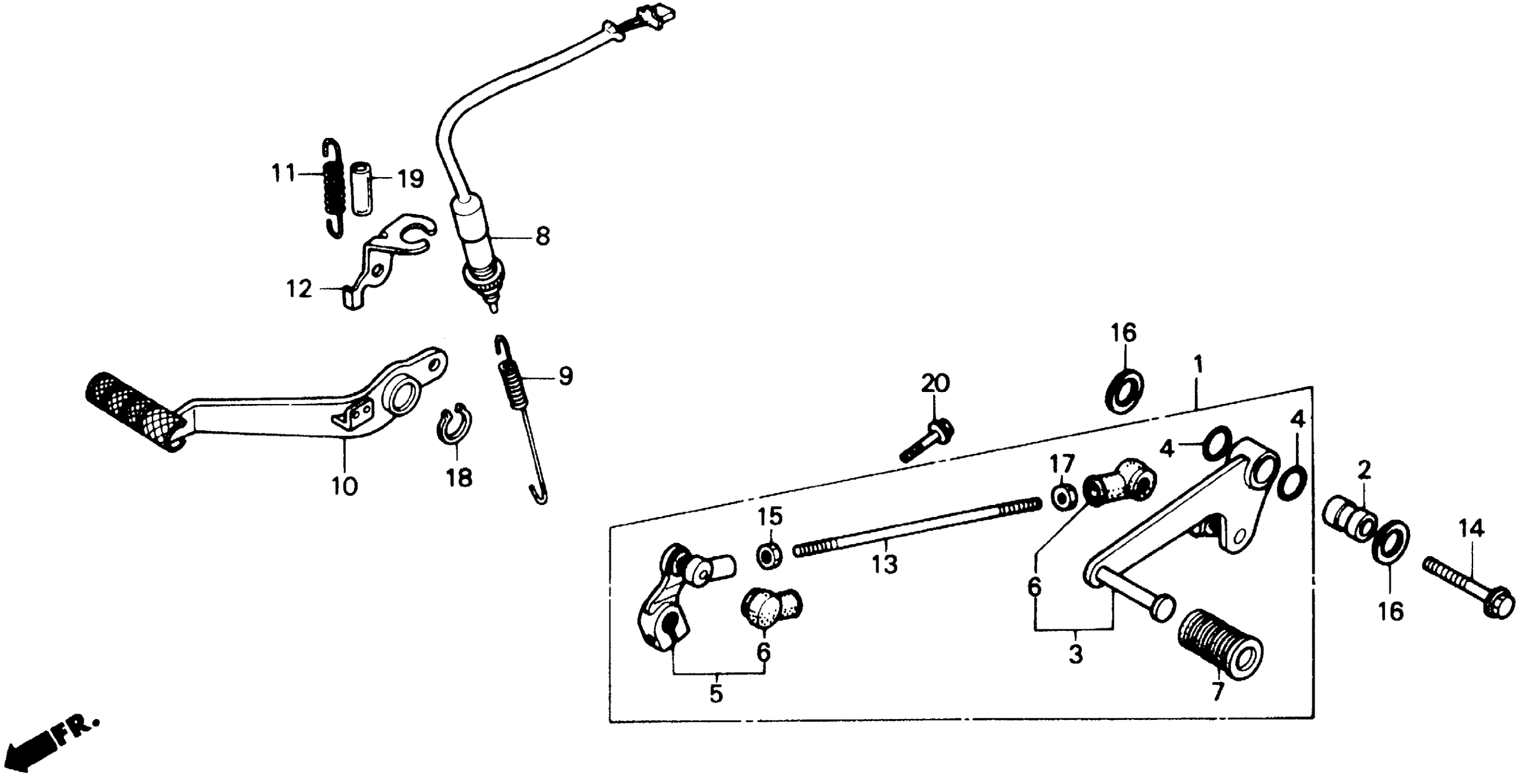

Honda CBR600FA (87) HURRICANE 600, JPN, VIN# JH2PC190-HM000014 TO JH2PC190-HM008281 PEDAL Diagram

#

Description
Price

1

PEDAL ASSY., CHANGE (NOT AVAILABLE) This part replaces 24700-MN4-000.

24700-MT6-000

Unavailable

2

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MB0-000

$12.16

3

PEDAL, GEARSHIFT (NOT AVAILABLE)

24705-MN4-000

Unavailable

5

ARM, CHANGE (NOT AVAILABLE)

24710-MN4-000

Unavailable

6

COVER, DUST

24724-422-000

$6.68

7

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

8

SWITCH ASSY., RR. STOP This part replaces 35350-MF2-880.

35350-KR0-405

$19.25

8

SWITCH ASSY., RR. STOP

35350-KR0-405

$19.25

8

SWITCH ASSY., RR. STOP This part replaces 35350-MF2-881.

35350-KR0-405

$19.25

9

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-KT8-000

Unavailable

10

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-KT8-000

Unavailable

11

SPRING, BRAKE PEDAL RETURN (NOT AVAILABLE)

46514-MN4-000

Unavailable

12

BRACKET, RR. BRAKE STOP SWITCH (NOT AVAILABLE) This part replaces 50352-KT8-000.

50352-MT6-000

Unavailable

13

BOLT, TIE ROD

90065-MN4-000

Unavailable

14

BOLT, FLANGE (8X35) (NOT AVAILABLE)

90122-GR2-010

Unavailable

15

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

17

NUT, HEX. (6MM)

94002-06020-0S

$1.49

18

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

19

BULK HOSE, VINYL (13X15X8000) (13X15X40)

95003-43008-10M

$60.69

20

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

20

BOLT, FLANGE (6X20) This part replaces 95900-06020-00.

95701-06020-00

$1.55

20

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
