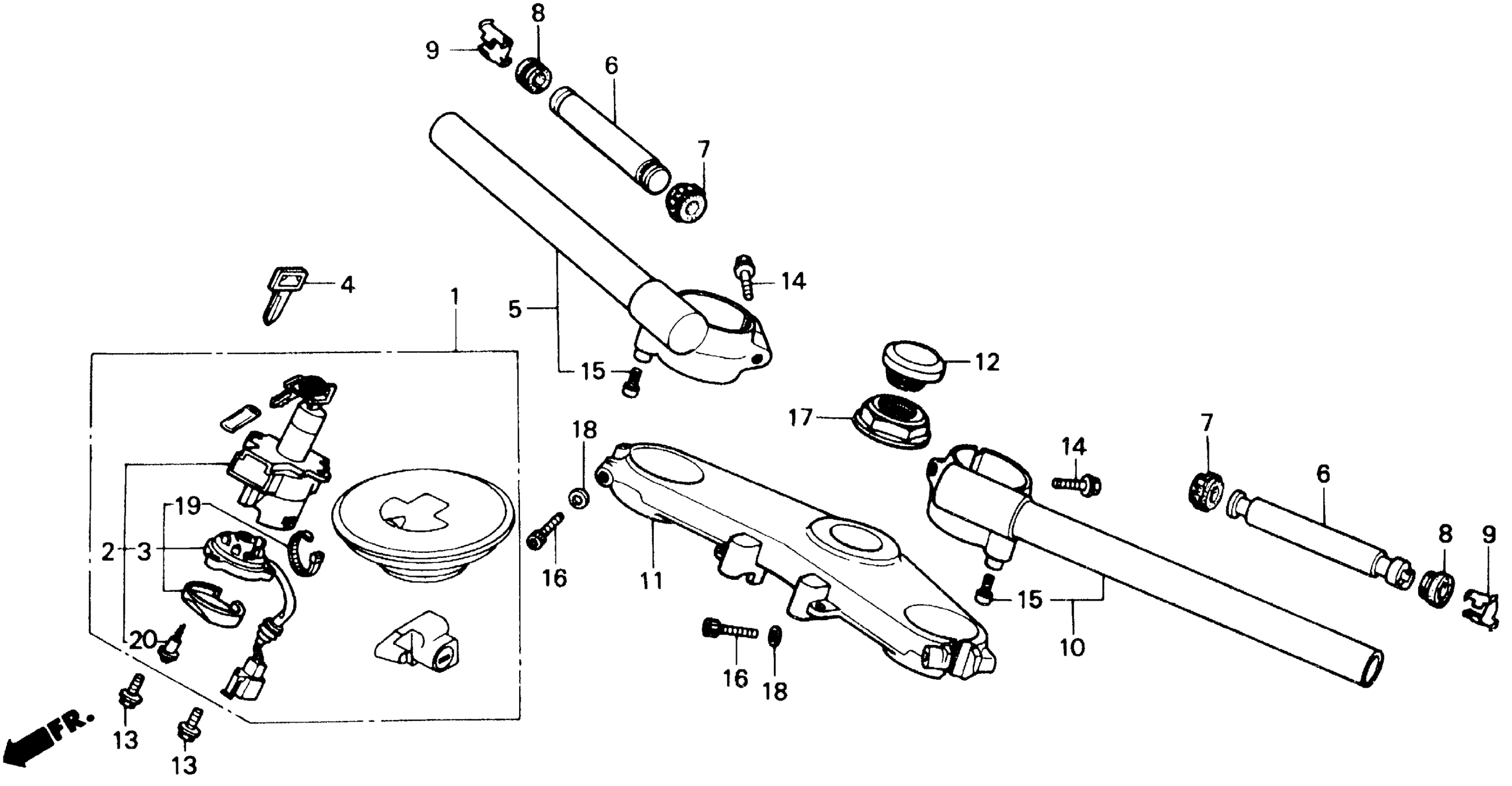

Honda CBR600FA (87) HURRICANE 600, JPN, VIN# JH2PC190-HM000014 TO JH2PC190-HM008281 HANDLEBAR Diagram

#

Description
Price

1

LOCK SET This part replaces 35010-MN4-670.

35010-MN4-671

Unavailable

2

SWITCH ASSY. This part replaces 35100-MN4-670.

35100-MN4-672

Unavailable

3

BASE, CONTACT This part replaces 35101-MN4-000.

35101-MN4-010

Unavailable

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$10.10

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$10.10

5

HANDLEBAR, R. This part replaces 53100-KT8-000.

53100-MT6-000

Unavailable

5

HANDLEBAR, R.

53100-MT6-000

Unavailable

6

WEIGHT B, HANDLEBAR (NOT AVAILABLE)

53104-MN4-000

Unavailable

7

RUBBER A, HANDLE WEIGHT

53106-MJ0-000

$3.92

8

RUBBER B, HANDLE WEIGHT

53107-MJ0-000

$3.77

9

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$5.14

10

HANDLEBAR, L. (SOURCE: VINTAGE PARTS INC.) This part replaces 53150-KT8-000.

53150-MT6-000

Unavailable

10

HANDLEBAR, L. (SOURCE: VINTAGE PARTS INC.)

53150-MT6-000

Unavailable

11

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-KT8-000

Unavailable

12

CAP, STEERING STEM NUT

53232-MJ4-670

$13.43

13

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

14

BOLT, SPECIAL FLANGE (8X35) (NOT AVAILABLE)

90108-KT8-710

Unavailable

15

BOLT, TORX (8X10) (SOURCE: VINTAGE PARTS INC.)

90111-MJ6-700

Unavailable

16

BOLT, SOCKET (7X46) (SOURCE: VINTAGE PARTS INC.)

90151-MB2-000

Unavailable

17

NUT, STEERING STEM

90304-MK3-000

$16.34

18

WASHER, PLAIN (7MM) (SOURCE: VINTAGE PARTS INC.)

90511-MB2-000

Unavailable

19

BAND, SELF-LOCK

91058-MG9-681

$2.21

20

SCREW, TAPPING (3X16)

91059-MG9-681

$2.39
