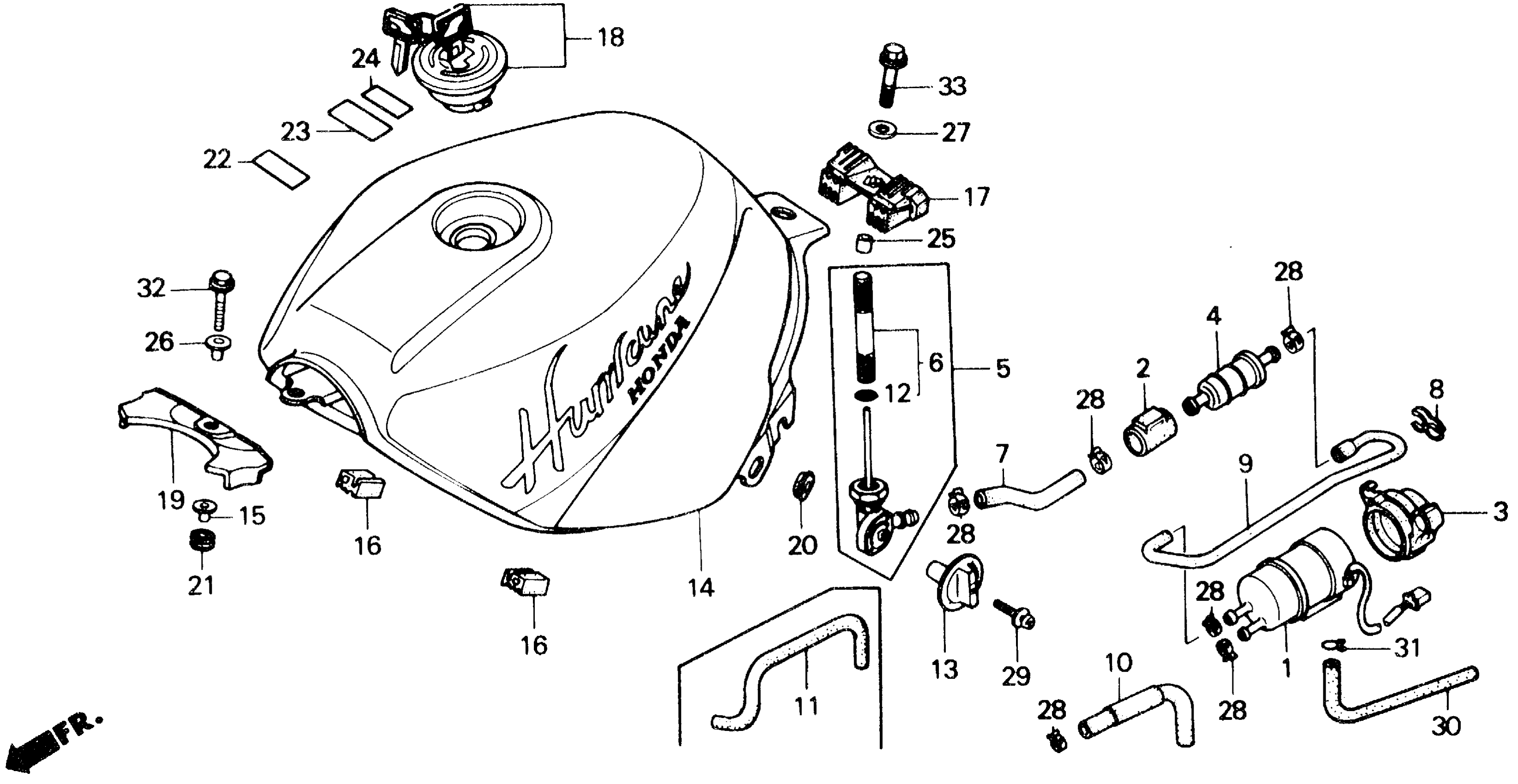

Honda CBR600FA (87) HURRICANE 600, JPN, VIN# JH2PC190-HM000014 TO JH2PC190-HM008281 FUEL TANK Diagram

#

Description
Price

1

PUMP ASSY., FUEL (NOT AVAILABLE)

16710-MN4-005

Unavailable

2

HOLDER, STRAINER

16711-MF2-000

$17.60

3

CUSHION, FUEL PUMP (NOT AVAILABLE)

16720-KT8-000

Unavailable

4

FILTER, FUEL

16900-MG8-003

$23.49

5

PETCOCK ASSY. This part replaces 16950-KT8-005.

16950-KAF-900

Unavailable

5

PETCOCK ASSY.

16950-KAF-900

Unavailable

5

PETCOCK ASSY. This part replaces 16950-MT6-005.

16950-KAF-900

Unavailable

6

SCREEN SET, FUEL STRAINER

16952-KAZ-000

$28.67

6

SCREEN SET, FUEL STRAINER This part replaces 16952-KT7-005.

16952-KAZ-000

$28.67

7

TUBE A, FUEL (NOT AVAILABLE) This part replaces 16955-KT8-000.

16955-KT8-010

Unavailable

8

CLAMP, FUEL TUBE (NOT AVAILABLE)

16956-KM9-000

Unavailable

9

TUBE B, FUEL (NOT AVAILABLE) This part replaces 16956-MN4-000.

16956-MT6-600

Unavailable

10

TUBE C, FUEL (NOT AVAILABLE) This part replaces 16957-MN4-000.

16957-MT6-010

Unavailable

12

O-RING

16958-KM9-005

$3.89

13

LEVER, PETCOCK (NOT AVAILABLE)

16965-MN4-670

Unavailable

14

TANK SET, FUEL *NH193P* (WL) (PEARL CRYSTAL WHITE) (NOT AVAILABLE) | Pearl crystal white NH193P;

17506-MN4-670ZA

Unavailable

14

TANK SET, FUEL *NH1* (WL) (BLACK) (NOT AVAILABLE) | Black NH1;

17506-MN4-670ZB

Unavailable

15

COLLAR, FUEL TANK SETTING

17535-KE7-000

$3.31

16

CUSHION, FUEL TANK

17611-ML7-000

$8.53

17

RUBBER, RR. FUEL TANK

17613-473-000

$25.42

18

CAP, FUEL FILLER (NOT AVAILABLE)

17620-MN4-007

Unavailable

19

COVER, CABLE GUIDE (NOT AVAILABLE)

17911-MN4-000

Unavailable

20

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

21

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

22

LABEL, FR. FORK CAUTION (NOT AVAILABLE)

87517-KM9-640

Unavailable

23

MARK, DRIVE CAUTION (TYPEG)

87560-ME9-670ZA

$5.22

25

COLLAR (8MM)

90324-300-000

$4.35

26

COLLAR, GEARSHIFT LEVER SETTING This part replaces 90522-MF5-000.

90522-170-700

$1.84

26

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

27

WASHER (8.3MM)

90534-011-000

$1.49

28

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

29

SCREW-WASHER (5X30)

93891-05030-07

$1.49

32

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

32

BOLT, FLANGE (8X25) This part replaces 95900-08025-00.

95701-08025-00

$1.79

32

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

33

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

33

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
