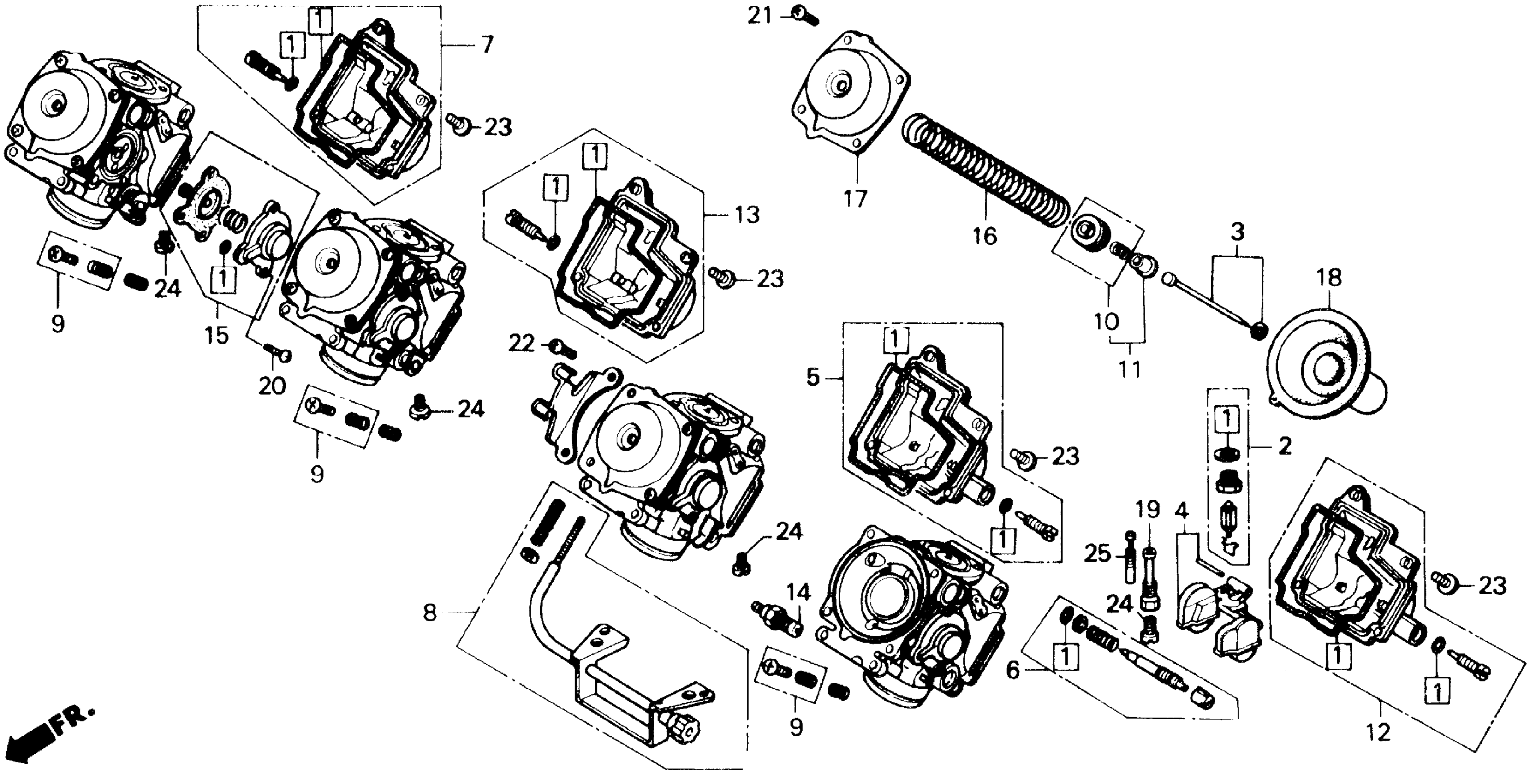

Honda CBR600FA (87) HURRICANE 600, JPN, VIN# JH2PC190-HM000014 TO JH2PC190-HM008281 CARBURETOR (COMPONENTS) Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MN4-003.

16010-MN4-305

$39.89

1

GASKET SET

16010-MN4-305

$39.89

2

VALVE SET, FLOAT This part replaces 16011-ML7-721.

16011-MM4-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-MM1-671.

16011-MM4-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-MM5-671.

16011-MM4-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-MN4-003

Unavailable

4

FLOAT SET (NOT AVAILABLE)

16013-KT7-003

Unavailable

5

CHAMBER SET, FLOAT (SOURCE: VINTAGE PARTS INC.) This part replaces 16015-MN4-003.

16043-MN4-013

Unavailable

5

CHAMBER SET, FLOAT (SOURCE: VINTAGE PARTS INC.) This part replaces 16015-MN4-013.

16043-MN4-013

Unavailable

5

CHAMBER SET, FLOAT (SOURCE: VINTAGE PARTS INC.)

16043-MN4-013

Unavailable

6

SCREW SET (NOT AVAILABLE)

16016-MN4-003

Unavailable

7

CHAMBER SET, FLOAT (NOT AVAILABLE) This part replaces 16023-MN4-003.

16023-MN4-013

Unavailable

8

SCREW SET (NOT AVAILABLE) This part replaces 16028-MN4-003.

16028-MN4-013

Unavailable

9

SCREW SET

16029-KEJ-900

Unavailable

9

SCREW SET This part replaces 16029-KE8-004.

16029-KEJ-900

Unavailable

9

SCREW SET This part replaces 16029-MN4-003.

16029-KEJ-900

Unavailable

10

PLATE SET, VALVE

16037-HM5-L00

$19.00

10

PLATE SET, VALVE This part replaces 16037-KM3-751.

16037-HM5-L00

$19.00

12

CHAMBER SET, FLOAT (SOURCE: VINTAGE PARTS INC.) This part replaces 16043-MN4-003.

16043-MN4-013

Unavailable

12

CHAMBER SET, FLOAT (SOURCE: VINTAGE PARTS INC.)

16043-MN4-013

Unavailable

13

CHAMBER SET, FLOAT (NOT AVAILABLE) This part replaces 16045-MN4-003.

16045-MN4-013

Unavailable

14

VALVE SET, STARTER (NOT AVAILABLE)

16046-KT8-003

Unavailable

16

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16050-ML7-004

Unavailable

17

TOP (NOT AVAILABLE)

16107-MN4-003

Unavailable

18

PISTON, VACUUM (NOT AVAILABLE)

16111-MN4-003

Unavailable

19

HOLDER, NEEDLE JET This part replaces 16165-MN4-003.

16165-MR8-780

Unavailable

21

SCREW, PAN (4X10)

93500-04010-0A

$1.49

22

SCREW, PAN (4X12)

93500-04012-0A

$1.49

23

SCREW, PAN (4X14)

93500-04014-0A

$1.49

24

JET, MAIN (#105)

99101-GHB-1050

$6.40

24

JET, MAIN (#105) This part replaces 99101-393-1050.

99101-GHB-1050

$6.40

25

JET, SLOW (#35)

99103-MT2-0350

$14.84

25

JET, SLOW (#35) This part replaces 99103-437-0350.

99103-MT2-0350

$14.84
