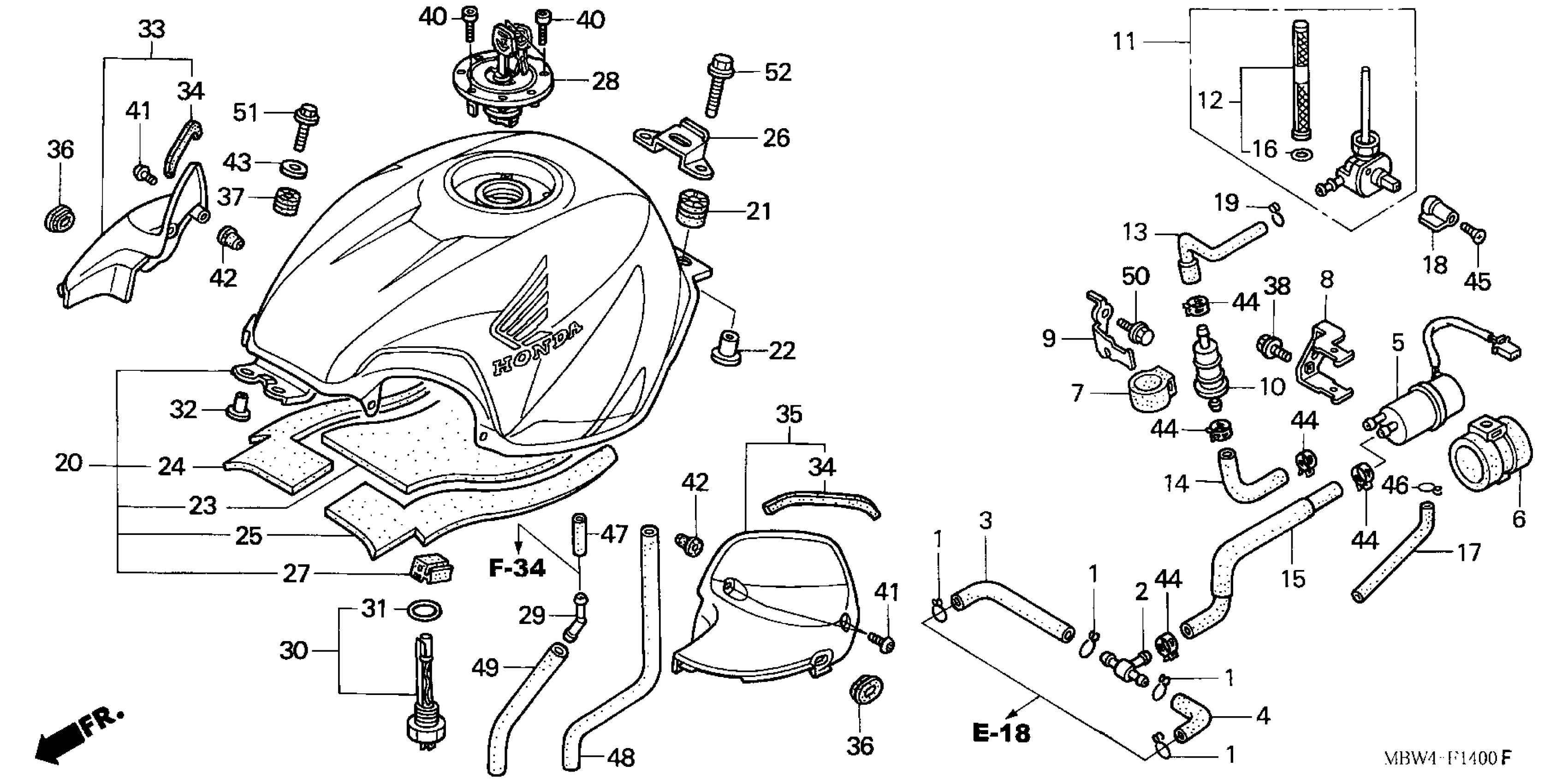

Honda CBR600F4AC (00) CBR600F4I, JPN, VIN# JH2PC351-YM100001 TO JH2PC351-YM100930 FUEL TANK ('99-'00) Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

T-JOINT

16180-MM5-601

$21.95

3

TUBE, R. FUEL

16198-MBW-000

Unavailable

4

TUBE, L. FUEL

16199-MBW-000

Unavailable

5

PUMP ASSY., FUEL

16710-MBW-003

$178.01

6

RUBBER, FUEL PUMP MOUNTING

16711-MBW-000

Unavailable

7

HOLDER, STRAINER

16711-MF2-000

$17.60

8

BAND, FUEL PUMP

16712-MBW-000

Unavailable

9

STAY, FUEL STRAINER

16713-MBW-000

Unavailable

10

FILTER, FUEL

16900-MG8-003

$23.49

11

PETCOCK ASSY. This part replaces 16950-MBW-003.

16950-MBW-023

Unavailable

11

PETCOCK ASSY. This part replaces 16950-MBW-013.

16950-MBW-023

Unavailable

11

PETCOCK ASSY.

16950-MBW-023

Unavailable

12

SCREEN SET, FUEL STRAINER

16952-MBW-003

Unavailable

13

TUBE A, FUEL

16955-MBW-000

$5.34

14

TUBE B, FUEL

16956-MBW-000

Unavailable

15

TUBE C, FUEL

16957-MBW-000

Unavailable

16

O-RING

16958-KM9-005

$3.89

17

TUBE, FUEL PUMP DRAIN

16958-MBW-000

Unavailable

18

LEVER, PETCOCK

16963-MY5-610

$14.29

19

CLIP, BREATHER TUBE

17371-174-670

$2.20

20

TANK SET, FUEL (TYPE5) (WL)

17506-MBW-670ZD

Unavailable

20

TANK SET, FUEL (TYPE1) (WL)

17506-MBW-A00ZA

Unavailable

20

TANK SET, FUEL (TYPE2) (WL)

17506-MBW-A00ZB

Unavailable

21

RUBBER, TANK MOUNTING

17508-MBW-000

$6.48

22

COLLAR, TANK SET

17509-MBW-000

Unavailable

23

MAT, FUEL TANK

17513-MBW-300

Unavailable

24

MAT, R. FUEL TANK SIDE

17514-MBW-300

Unavailable

25

MAT, L. FUEL TANK SIDE

17515-MBW-300

Unavailable

26

STAY, FR. SEAT

17530-MBW-000

$14.60

27

CUSHION, FUEL TANK

17611-ML7-000

$8.53

28

CAP, FUEL FILLER This part replaces 17620-MAS-E01.

17620-MAS-E04

$202.36

28

CAP, FUEL FILLER This part replaces 17620-MAS-E02.

17620-MAS-E04

$202.36

30

SENSOR, FUEL RESERVE

37810-MBW-612

Unavailable

31

GASKET, FUEL RESERVE SENSOR

37811-MB1-008

$2.92

32

COLLAR, SETTING

61104-422-000

$6.91

33

COVER, R. AIR DUCT *NH1* (BLACK)

64580-MBW-000ZA

Unavailable

34

CUSHION, AIR DUCT COVER

64581-MBW-300

$4.23

35

COVER, L. AIR DUCT *NH1* (BLACK)

64590-MBW-000ZA

Unavailable

36

GROMMET, SIDE COVER

83551-MA6-000

$3.35

37

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

38

BOLT, FLANGE (6X12) (NSHF)

90004-GHB-610

$2.97

40

BOLT, SOCKET (4X21)

90074-MT4-000

$3.04

41

SCREW, PAN (5X20)

90103-MBG-000

$2.02

42

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

43

WASHER, PLAIN (6MM)

90525-428-900

$1.92

44

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

45

SCREW, OVAL (5X12)

93700-05012-0G

$1.49

46

CLIP, TUBE (C9)

95002-50000

$1.49

47

BULK HOSE, VACUUM (4.5X1000) (4.5X40)

95005-45001-20M

$34.14

48

BULK HOSE, VACUUM (8X1000) (8X650)

95005-80001-50M

$16.26

50

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

51

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

52

BOLT, FLANGE (8X45)

96300-08045-00

$2.08
