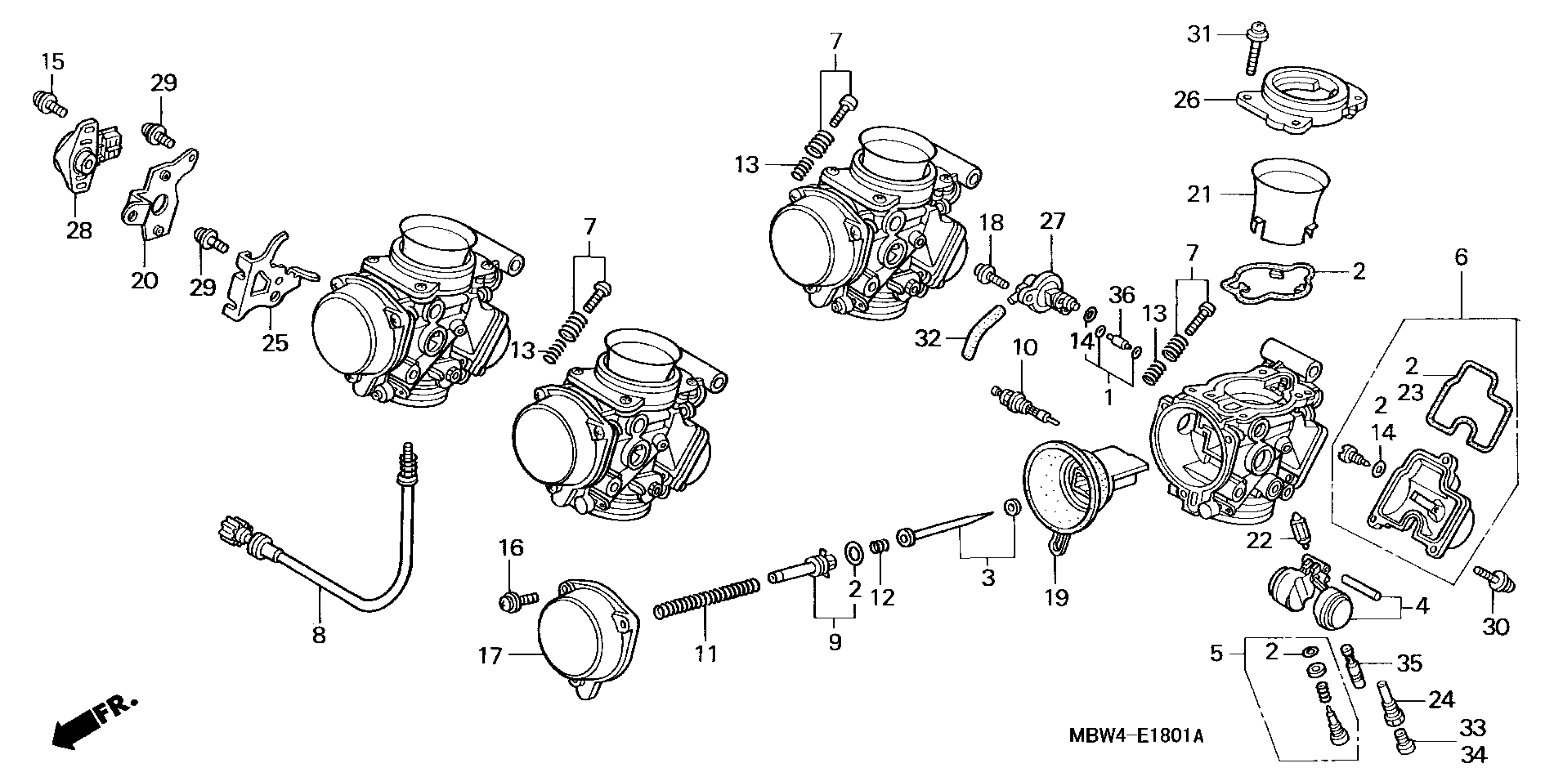

Honda CBR600F4AC (00) CBR600F4I, JPN, VIN# JH2PC351-YM100001 TO JH2PC351-YM100930 CARBURETOR (COMPONENT PARTS) Diagram

#

Description
Price

1

GASKET SET C This part replaces 16010-HM7-670.

16041-MZ5-600

$16.54

2

GASKET SET A

16010-MZ2-E00

$37.56

3

NEEDLE SET, JET

16025-MBW-601

Unavailable

4

FLOAT SET

16013-MBZ-610

$43.12

5

SCREW SET

16016-MAS-670

$23.15

6

CHAMBER SET, FLOAT (#3) This part replaces 16023-MZ5-920.

16043-MZ2-E00

Unavailable

6

CHAMBER SET, FLOAT (#3)

16043-MZ2-E00

Unavailable

7

SCREW SET

16028-MZ2-E00

Unavailable

8

SCREW SET, STOP

16029-MBW-601

Unavailable

9

PLATE SET, VALVE

16037-MZ2-E00

Unavailable

10

VALVE SET, STARTER

16046-MAL-600

Unavailable

11

SPRING, COMPRESSION COIL

16050-MBW-601

Unavailable

12

SPRING, COMPRESSION COIL

16051-MV4-000

$18.27

13

SPRING

16052-ME9-672

$5.42

14

O-RING (1.3X4.3)

16075-GHB-640

$2.69

15

SCREW-WASHER, TORX

16080-MBB-640

Unavailable

16

SCREW-WASHER

16080-MV4-000

$2.35

17

TOP

16107-MW0-670

Unavailable

18

SCREW

16108-MW0-750

$2.32

19

PISTON, VACUUM

16111-MBW-601

Unavailable

20

PLATE, STAY

16129-MBW-601

Unavailable

21

FUNNEL, AIR

16141-MBW-601

Unavailable

22

VALVE, FLOAT

16155-413-751

$29.84

23

GASKET, FLOAT CHAMBER

16163-MZ5-920

$30.66

24

HOLDER, NEEDLE JET This part replaces 16165-MBW-601.

16165-MBW-851

Unavailable

24

HOLDER, NEEDLE JET

16165-MBW-851

Unavailable

25

STAY, WIRE

16169-MBW-601

Unavailable

26

PLATE, FUNNEL SETTING

16188-MW0-671

Unavailable

27

VALVE ASSY., AIR CUT

16510-MBW-601

$114.46

28

SENSOR ASSY., THROTTLE

37890-MBW-601

Unavailable

29

SCREW-WASHER (5X10)

93892-05010-00

$0.56

29

SCREW-WASHER (5X10) This part replaces 93892-05010-10.

93892-05010-00

$0.56

30

SCREW-WASHER (5X16)

93892-05016-00

$0.59

30

SCREW-WASHER (5X16) This part replaces 93892-05016-10.

93892-05016-00

$0.59

31

SCREW-WASHER (4X14)

93893-04014-07

$1.34

31

SCREW-WASHER (4X14) This part replaces 93893-04014-17.

93893-04014-07

$1.34

32

BULK HOSE, VACUUM (3.5X1000) (3.5X60)

95005-35001-20M

$11.77

33

JET (#128) This part replaces 99101-GHB-1280.

99101-PH9-1280

$6.29

34

JET (#128) This part replaces 99101-GHB-1280.

99101-PH9-1280

$6.29

35

JET, SLOW (#40)

99103-MT2-0400

$11.26

36

JET, SLOW AIR (#115)

99108-MY5-1150

Unavailable
