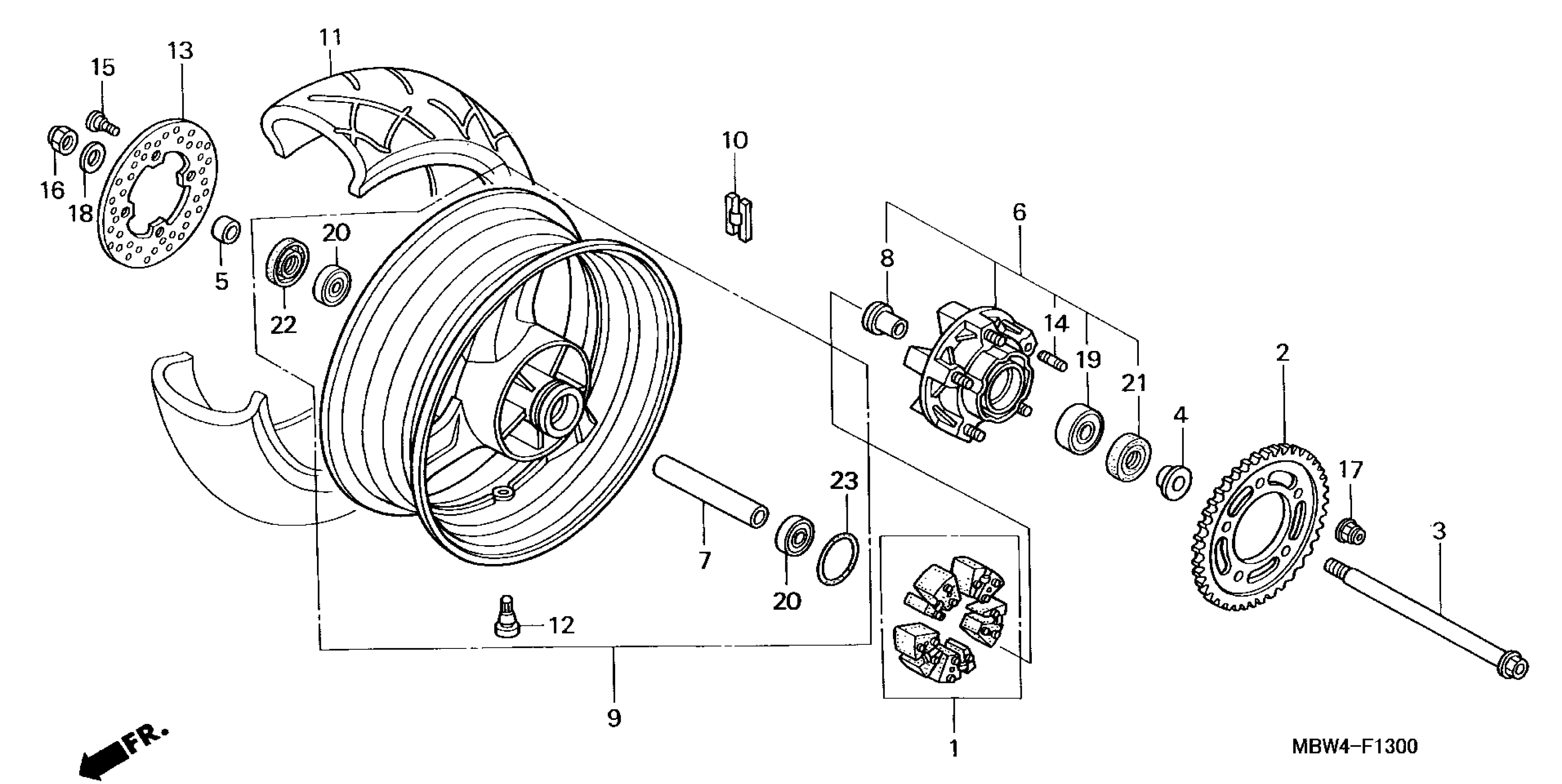

Honda CBR600F4A (99) CBR600F4I, JPN, VIN# JH2PC350-XM000001 TO JH2PC350-XM007194 REAR WHEEL ('99-'00) Diagram

DAMPER SET, WHEEL

06410-MBW-000

Unavailable

SPROCKET, FINAL DRIVEN (45T)

41201-MBW-670

Unavailable

AXLE, RR. WHEEL

42301-MAS-000

$71.66

COLLAR, L. RR. WHEEL SIDE

42311-MAL-601

Unavailable

COLLAR, RR. BRAKE SIDE

42312-MAE-010

$22.45

FLANGE SUB-ASSY., RR. DRIVEN

42615-MAS-000

$198.20

COLLAR, RR. AXLE DISTANCE

42620-MW0-010

$34.02

COLLAR B, RR. WHEEL DISTANCE

42625-MAS-000

$23.28

WHEEL SUB-ASSY., RR.

42650-MBB-000

Unavailable

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

TIRE, RR. (180/55ZR17) (TX25) (MICHELIN) (NOT AVAILABLE) This part replaces 42711-MAS-017.

42711-MAS-027

Unavailable

TIRE, RR. (180/55ZR17) (M/C 73W) (BS) This part replaces 42711-MAS-023.

42711-MAS-043

Unavailable

TIRE, RR. (180/55ZR17) (M/C 73W) (BS) This part replaces 42711-MAS-033.

42711-MAS-043

Unavailable

TIRE, RR. (180/55ZR17) (M/C 73W) (BS)

42711-MAS-043

Unavailable

TIRE, RR. (180/55-17) (DUNLOP) (NOT AVAILABLE)

42711-MBW-014

Unavailable

VALVE, RIM (BS)

42753-ML7-003

$12.74

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

VALVE, RIM (MICHELIN)

42753-MT4-005

$6.23

DISK, RR. BRAKE This part replaces 43251-KEA-000.

43251-MEE-000

$229.93

DISK, RR. BRAKE This part replaces 43251-MBB-D41.

43251-MEE-000

$229.93

BOLT, STUD (12X25)

90102-MAS-000

$4.01

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

NUT, U (18MM)

90305-KZ4-891

$15.83

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

WASHER (20X31.5X2)

90401-MAS-000

$3.21

BEARING, RADIAL BALL (6322)

91051-MAS-003

$40.04

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

DUST SEAL (30X56X7.5)

91252-MAS-003

$12.11

DUST SEAL (30X47X7.5)

91253-MAE-003

$15.95

O-RING (61X2)

91302-MA6-003

$5.17
