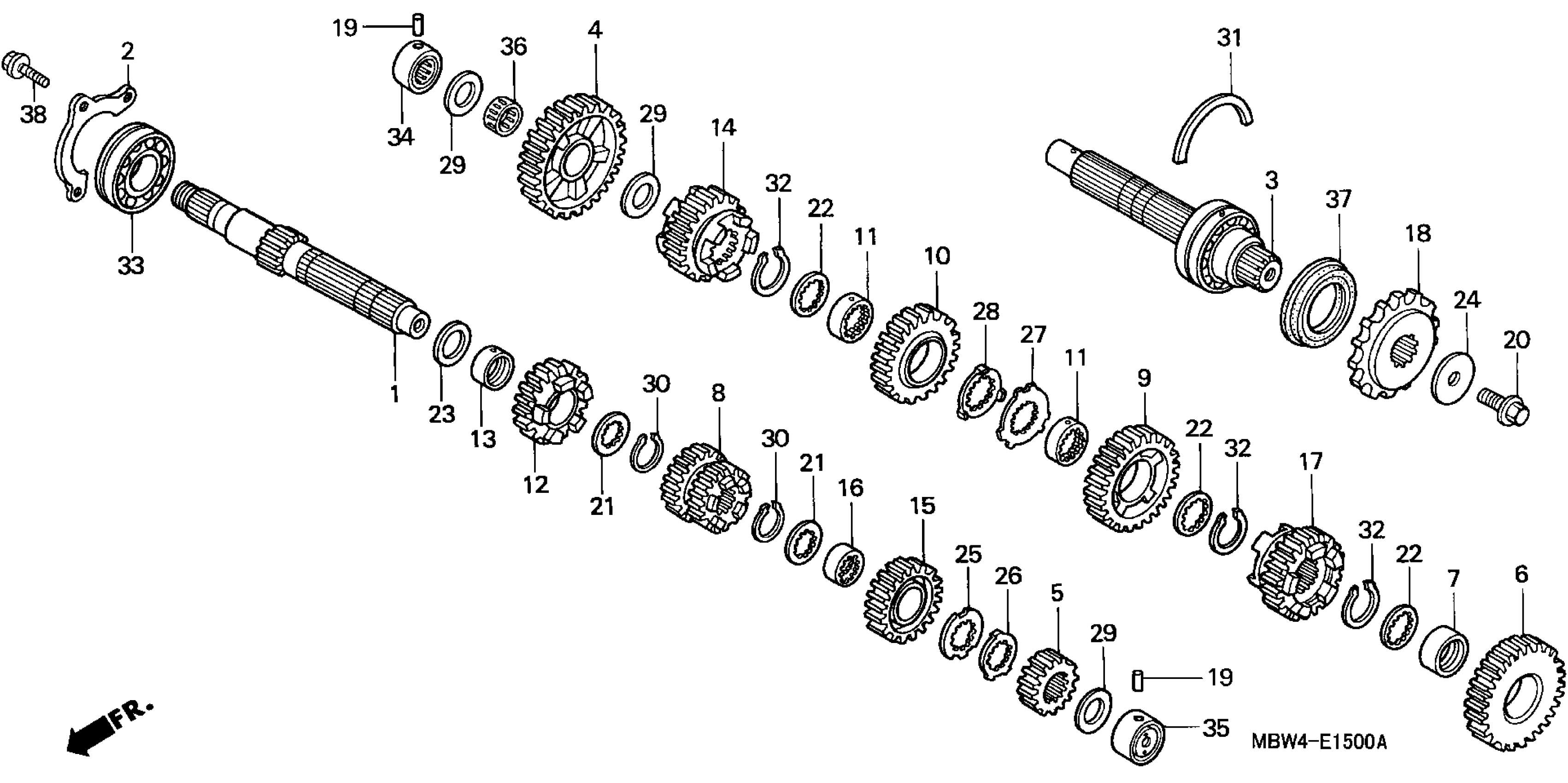

Honda CBR600F4A (06) CBR600F4I, JPN, VIN# JH2PC350-6M700001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (12T)

23211-MBW-E20

Unavailable

2

PLATE, BEARING SETTING

23212-MBW-000

Unavailable

3

COUNTERSHAFT

23220-MBW-000

$185.79

4

GEAR, COUNTERSHAFT FIRST (34T)

23421-MBW-J20

Unavailable

5

GEAR, MAINSHAFT SECOND (16T)

23431-MBW-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (33T)

23441-MBW-J20

Unavailable

7

COLLAR (28MM)

23442-MM4-000

$23.62

8

GEAR, MAINSHAFT THIRD & FOURTH (17T/19T)

23451-MBW-J20

Unavailable

9

GEAR, COUNTERSHAFT THIRD (28T)

23461-MBW-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (27T)

23481-MBW-000

Unavailable

11

COLLAR, SPLINE (28X31X9)

23482-MV9-670

$19.18

12

GEAR, MAINSHAFT FIFTH (22T)

23491-MBW-J20

Unavailable

13

COLLAR (25X15)

23495-MT7-000

$21.67

14

GEAR, COUNTERSHAFT FIFTH (28T)

23501-MBW-J20

$124.54

15

GEAR, MAINSHAFT SIXTH (23T)

23511-MBW-J20

$94.02

16

COLLAR, SPLINE (25X28X13)

23512-MV9-670

$27.13

17

GEAR, COUNTERSHAFT SIXTH (27T)

23521-MBW-J20

Unavailable

18

SPROCKET, DRIVE (16T)

23801-MAS-000

$65.00

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

20

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

21

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

22

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

23

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

24

WASHER (10.2MM)

90459-438-000

$5.83

25

WASHER, SPLINE (25MM)

90461-MW0-000

$5.56

26

WASHER, LOCK (25MM)

90462-MBW-000

$6.84

27

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

28

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

29

WASHER, THRUST (20X0.9)

90469-ME5-000

$4.80

30

CIRCLIP (25MM)

90601-107-000

$3.74

31

SET-RING (62MM)

90602-ML7-000

$9.05

32

CIRCLIP (28MM) This part replaces 90602-MM5-000.

90603-MN4-000

$4.11

32

CIRCLIP (28MM)

90603-MN4-000

$4.11

33

BEARING, RADIAL BALL (6305)

91004-MG5-671

Unavailable

33

BEARING, BALL (6305) (TOYO)

91004-657-008

$54.92

33

BEARING, RADIAL BALL (6305) This part replaces 91004-689-000.

91004-MG5-671

Unavailable

34

BEARING, NEEDLE (20X34X16.8) (NTN) This part replaces 91023-MM4-003.

91023-MKP-D01

$34.39

35

BEARING, NEEDLE (20MM)

91025-MBW-003

$32.77

36

BEARING, NEEDLE (20X24X10)

91102-MM4-003

Unavailable

37

OIL SEAL (40X62X8.4)

91207-MAL-601

$13.51

38

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
