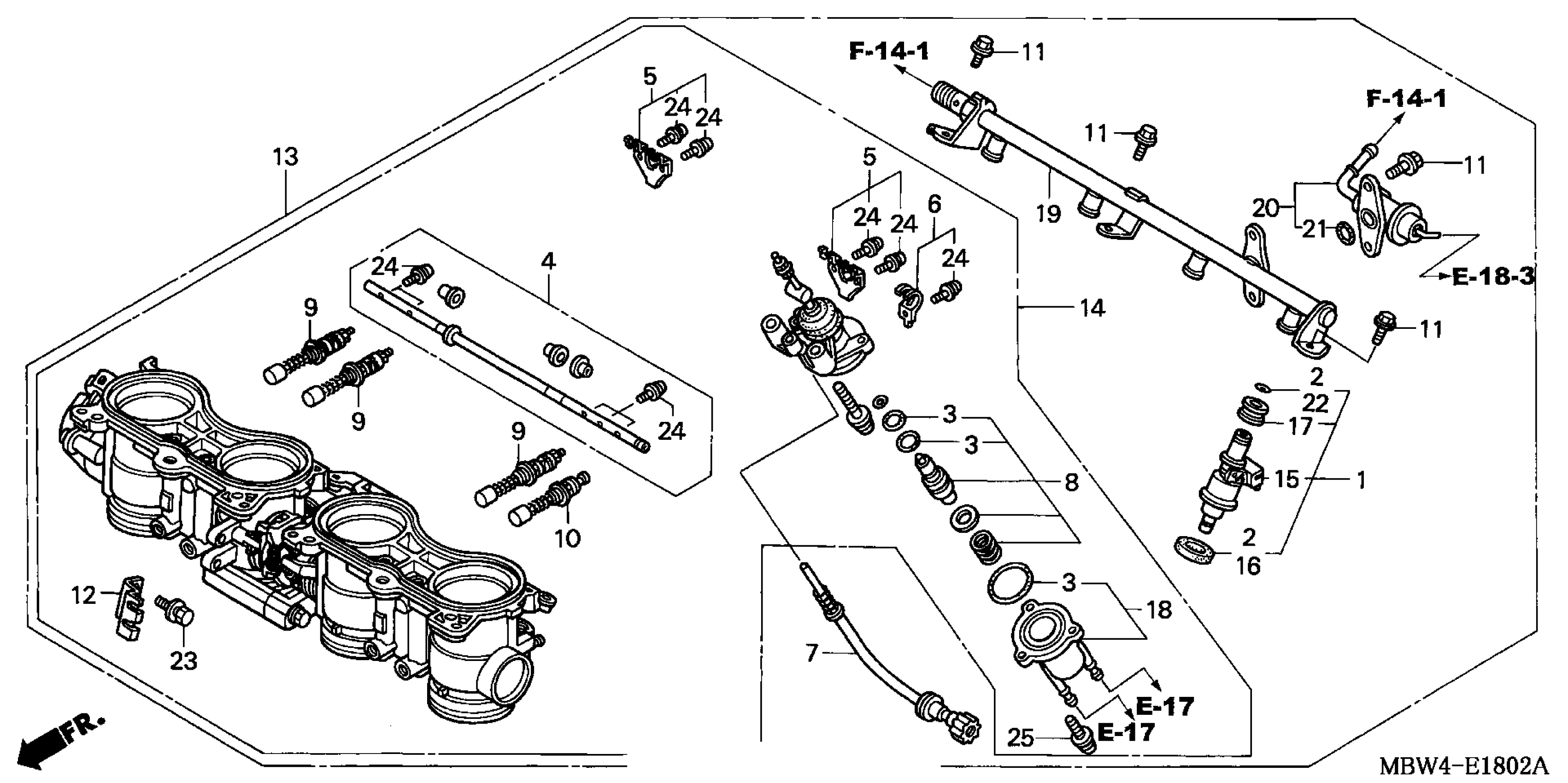

Honda CBR600F4A (06) CBR600F4I, JPN, VIN# JH2PC350-6M700001 THROTTLE BODY Diagram

#

Description
Price

1

INJECTOR SET, FUEL

06164-MBW-J21

Unavailable

2

GASKET SET

16010-MCJ-003

Unavailable

3

GASKET SET B

16011-MAT-E01

$7.15

4

SHAFT SET, STARTER

16017-MBW-J21

$37.21

5

LEVER SET A, STARTER

16018-MCJ-003

$9.28

6

LEVER SET B, STARTER

16019-MCJ-003

$3.85

7

SCREW SET, STOP

16029-MBW-J21

$33.57

8

ELEMENT SET, WAX

16044-MAT-E01

$31.17

9

VALVE SET, STARTER

16046-MCJ-003

Unavailable

10

VALVE, STARTER

16047-MCJ-003

Unavailable

11

BOLT, FLANGE (6X12)

16080-MCJ-003

$1.54

12

STAY, WIRE

16169-MCJ-003

Unavailable

13

BODY ASSY., THROTTLE (GQ90C B)

16400-MBW-A12

Unavailable

14

BODY ASSY., THROTTLE

16401-MBW-A11

$1,626.69

15

INJECTOR SET, FUEL

06164-MBW-J21

Unavailable

15

INJECTOR SET, FUEL This part replaces 16450-MBW-J21.

06164-MBW-J21

Unavailable

16

SEAL RING, INJECTOR

16472-MCF-003

$5.04

17

CUSHION RING, INJECTOR (NOK) This part replaces 16473-PD6-000.

16473-P10-A01

$7.12

17

CUSHION RING, INJECTOR (NOK)

16473-P10-A01

$7.12

18

CASE SET, WAX

16502-MAT-E01

Unavailable

19

PIPE, FUEL

16620-MBW-J21

Unavailable

20

REGULATOR ASSY., PRESSURE

16740-MBW-J32

$101.25

21

O-RING, PRESSURE REGULATOR

16741-PG7-005

$3.47

22

O-RING (7.3X2.2) (NOK) This part replaces 91301-PM7-003.

91301-P2F-A01

$2.97

23

BOLT-WASHER (5X14)

93402-05014-00

$1.49

24

SCREW-WASHER (3X8)

93892-03008-10

$1.49

25

SCREW-WASHER (5X12)

93892-05012-00

$1.49

25

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.49
