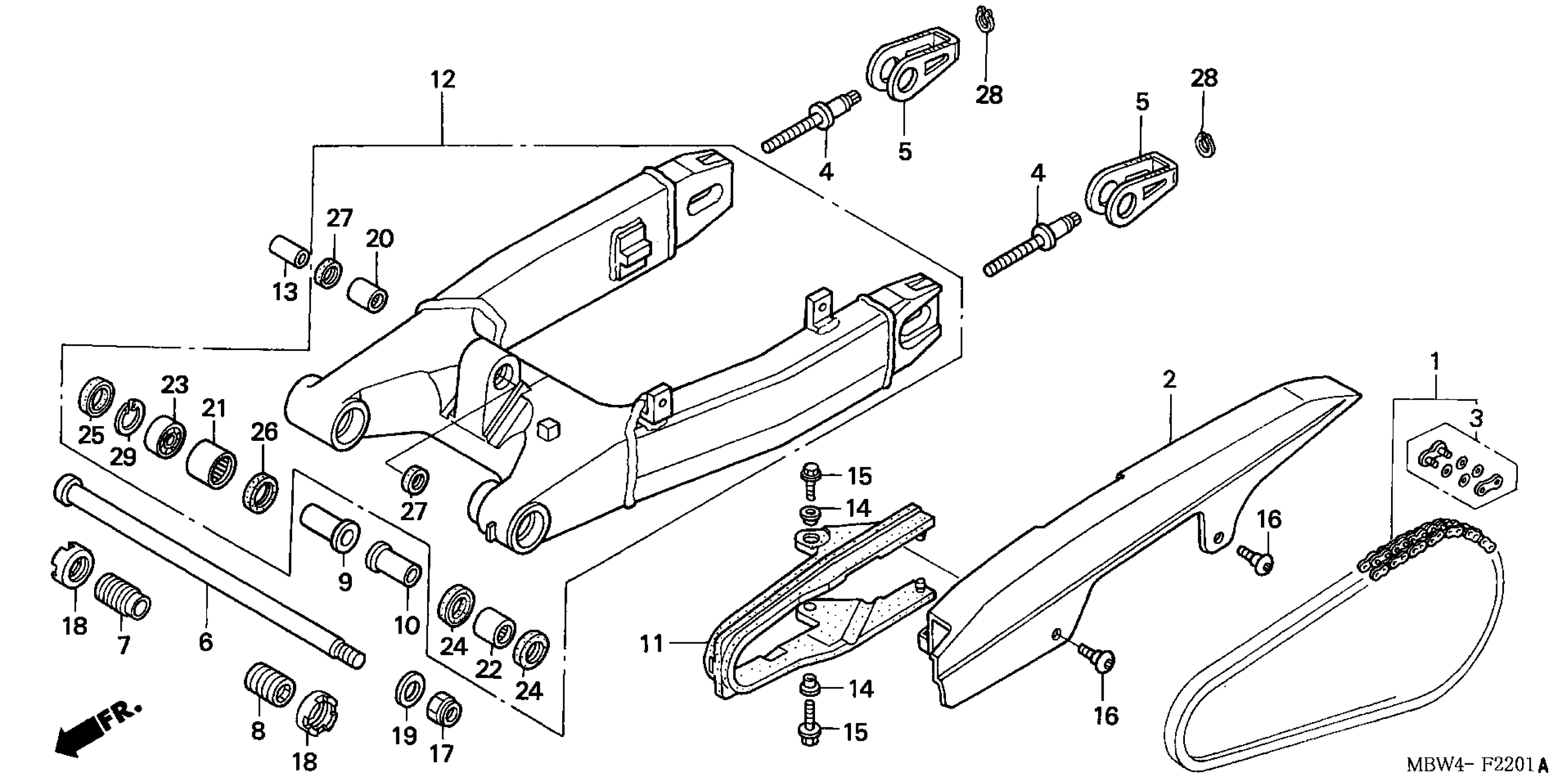

Honda CBR600F4A (06) CBR600F4I, JPN, VIN# JH2PC350-6M700001 SWINGARM ('01-'06) Diagram

#

Description
Price

1

CHAIN SET, DRIVE (DID525HV-112L-120L) (DAIDO) (STANDARD LINK 108L)

06405-MAL-P00

Unavailable

1

CHAIN SET, DRIVE (RK525ROZ1) (112L-120L) (RK EXCEL) (STANDARD LINK 108L)

06405-MAL-P10

Unavailable

2

CASE, DRIVE CHAIN

40510-MBW-000

Unavailable

3

MASTER LINK SET (DAIDO)

40535-MAL-G01

$7.38

3

MASTER LINK SET (RK EXCEL)

40535-MAL-G02

$7.85

4

BOLT, CHAIN ADJUSTING

40542-KV3-700

$7.71

5

ADJUSTER, CHAIN This part replaces 40543-MAS-000.

40543-MAS-010

$15.91

6

BOLT, SWINGARM PIVOT

52101-MBW-E10

Unavailable

7

BOLT, R. PIVOT ADJUSTING

52108-MBW-000

Unavailable

8

BOLT, L. PIVOT ADJUSTING

52109-MBW-000

Unavailable

9

COLLAR, R. PIVOT DISTANCE

52142-MBW-E10

Unavailable

10

COLLAR, L. PIVOT DISTANCE

52143-MBW-000

Unavailable

11

SLIDER, CHAIN

52170-MBW-000

$43.95

12

SWINGARM SUB-ASSY.

52200-MBW-E10

$823.65

13

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$10.72

14

COLLAR

81312-GJ5-000

$3.16

15

BOLT, FLANGE (6X18)

90105-MY9-000

$2.71

16

SCREW, PAN (6X11)

90106-KY2-701

$4.05

17

NUT, U (18MM)

90305-KZ4-891

$14.54

18

NUT, SWINGARM PIVOT LOCK

90355-469-000

$16.10

19

WASHER (18X32X2)

90401-KZ4-890

$4.28

20

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.84

21

BEARING, NEEDLE

91071-MBW-E11

$15.79

22

BEARING, NEEDLE

91071-MR7-003

$23.57

23

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$16.53

24

DUST SEAL (28X37X4)

91202-MR7-003

$6.06

25

DUST SEAL (26X37X5)

91214-MR7-003

$6.67

26

DUST SEAL (28X34X4)

91251-MBW-E11

$4.93

27

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.91

28

CIRCLIP, OUTER (10MM)

94511-10000

$0.85

29

CIRCLIP, INNER (37MM)

94520-37000

$2.46
