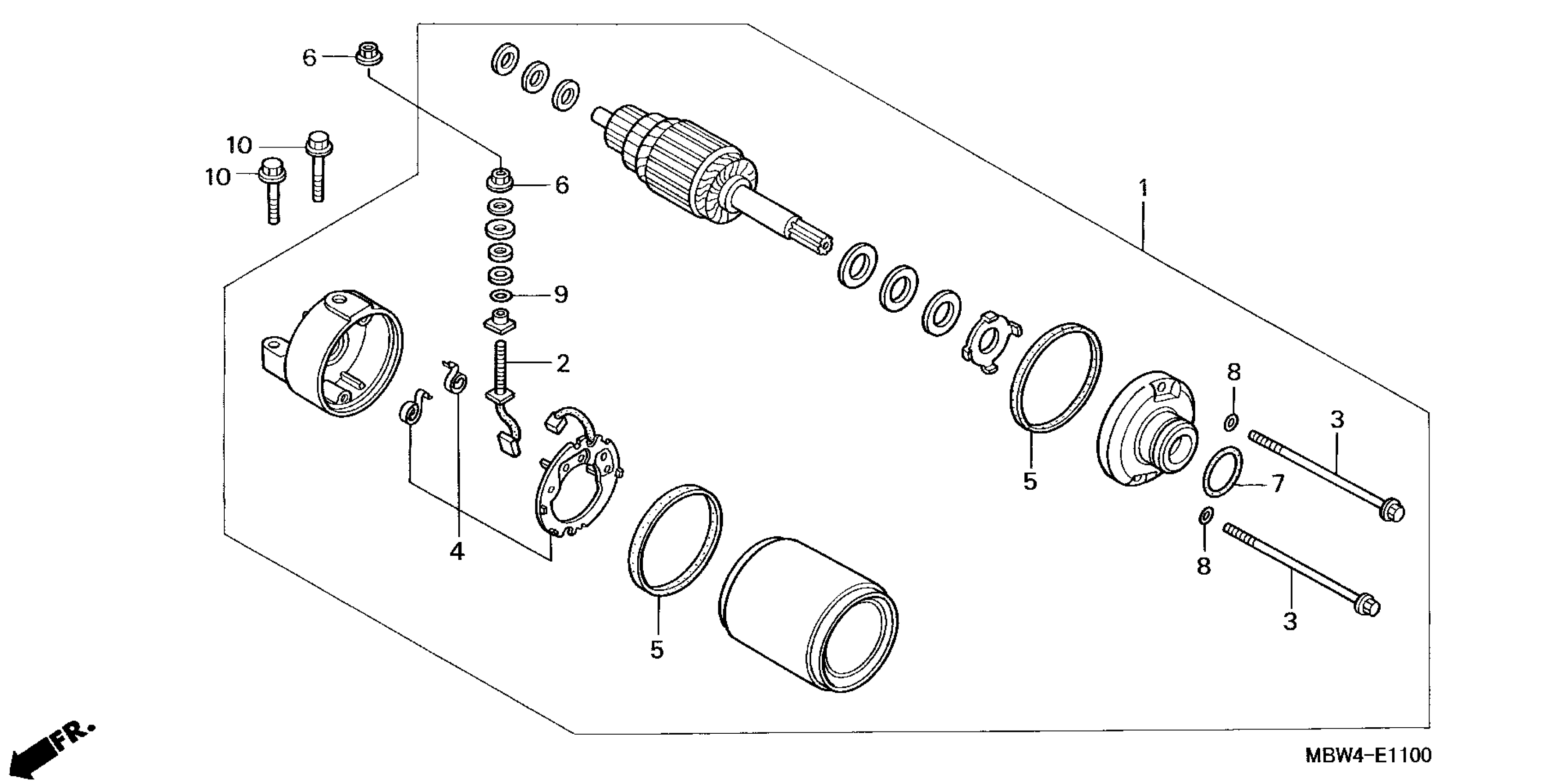

Honda CBR600F4A (06) CBR600F4I, JPN, VIN# JH2PC350-6M700001 STARTER MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY.

31200-MBW-611

Unavailable

2

TERMINAL SET, BRUSH

31201-MBE-008

$10.26

3

BOLT, SETTING

31205-KFK-003

$4.22

4

HOLDER SET, BRUSH

31206-MBE-008

$23.38

5

RING

31207-MBE-008

$3.90

6

NUT-WASHER (6MM)

90071-MB0-000

$1.88

7

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

7

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

8

O-RING

91320-MBE-008

$2.22

9

O-RING

91320-MB0-000

$2.20

10

BOLT, FLANGE (6X28)

95701-06028-00

$1.65
