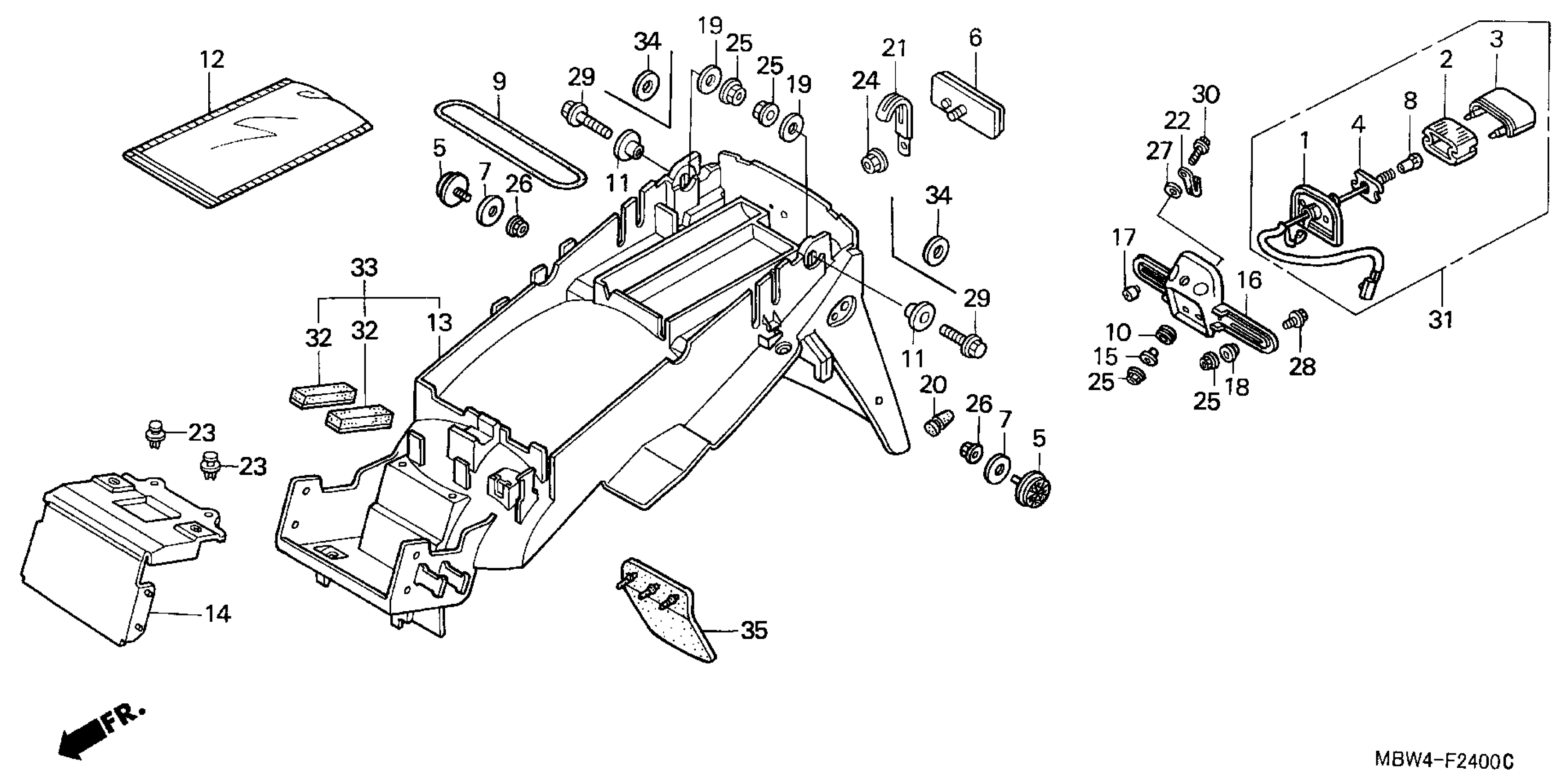

Honda CBR600F4A (06) CBR600F4I, JPN, VIN# JH2PC350-6M700001 REAR FENDER ('99-'00,'04-'06) Diagram

#

Description
Price

1

BASE, LICENSE

33721-MAS-A11

Unavailable

2

LENS, LICENSE LIGHT

33722-MB1-013

$18.13

3

COVER, LICENSE (STANLEY)

33727-ME4-671

$25.19

4

GASKET, LENS

33729-MB1-003

$6.01

5

REFLECTOR, RR. REFLEX

33741-HB9-641

$12.18

6

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$14.85

7

SPACER, RR. REFLECTOR

33748-MT4-750

Unavailable

8

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.80

8

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.80

8

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.80

8

BULB (12V8W)

34909-505-003

$2.80

8

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.80

9

BAND, U-LOCK

50290-MZ7-000

$18.30

10

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.13

12

BAG, SERVICE BOOK

77251-GR1-000

$4.10

14

COVER, BATTERY TRAY

80110-MBW-000

Unavailable

15

COLLAR, RR. FENDER

80114-KE2-940

$3.73

16

BRACKET, NUMBER PLATE

84701-ML7-670

$38.18

17

NUT, SPECIAL (4MM)

90302-MB2-000

$4.54

18

WASHER (6X20)

90502-VA4-640

$3.13

19

WASHER (6X20)

90505-HA0-680

$2.80

20

PLUG, CONE TYPE

90899-422-610

$1.84

21

CLIP, WIRE

91406-166-000

$3.71

22

CLIP, PULSER WIRE

32925-958-000

$2.76

23

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.04

24

NUT, FLANGE (5MM)

94050-05070

$1.19

25

NUT, FLANGE (6MM)

94050-06000

$0.60

26

NUT, FLANGE (6MM)

94050-06070

$1.34

27

WASHER, PLAIN (6MM)

94103-06000

$0.91

28

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

29

BOLT, FLANGE (6X22)

95701-06022-00

$1.66

30

BOLT, FLANGE (6X25)

95701-06025-00

$1.66

31

LIGHT ASSY., LICENSE

33720-MAS-A11

Unavailable

32

CUSHION, TANK

17514-HC0-310

$13.16

33

FENDER, RR.

80100-MBW-A50

Unavailable

34

WASHER, PLAIN (6MM)

94103-06000

$0.91
