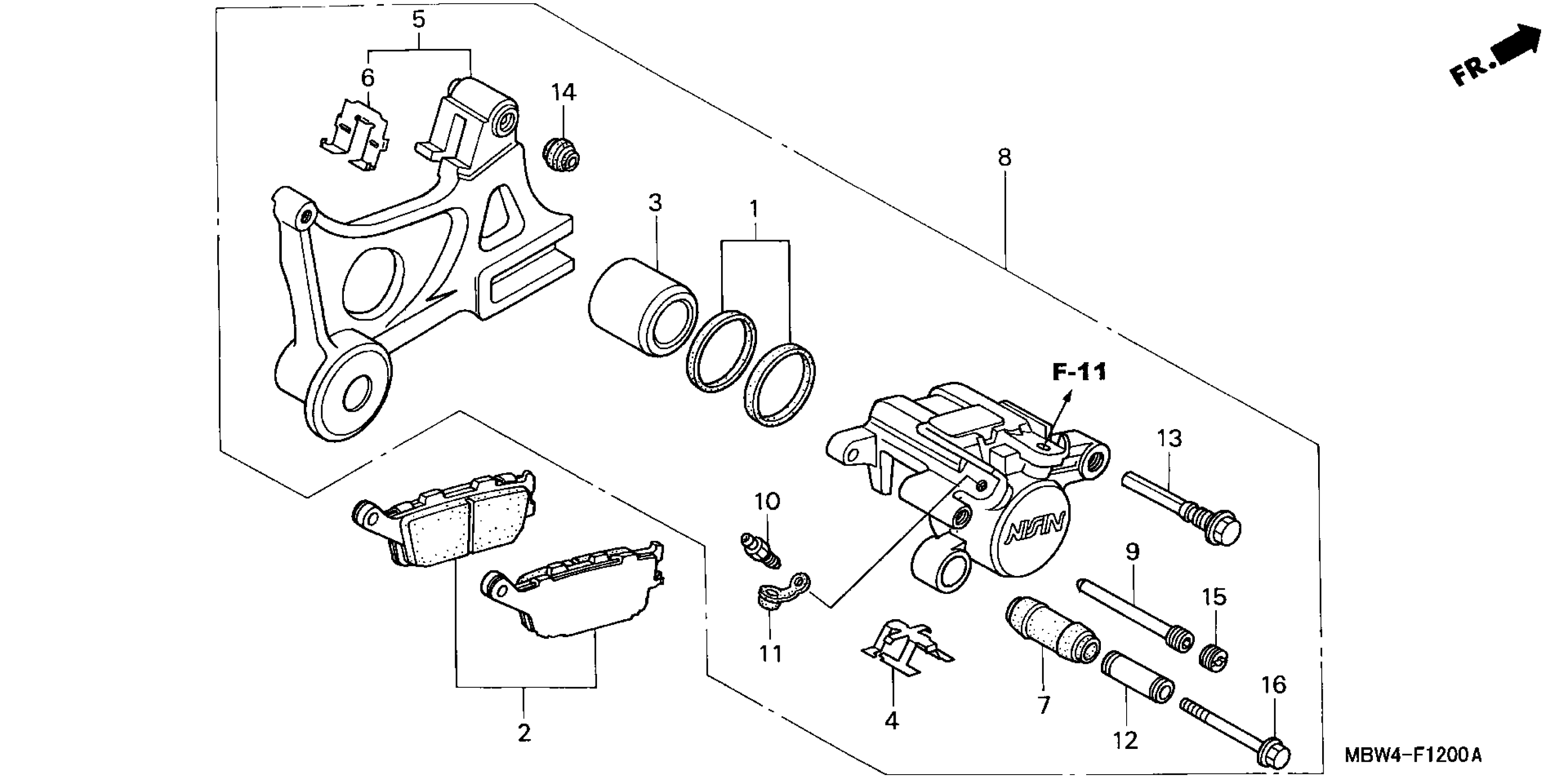

Honda CBR600F4A (06) CBR600F4I, JPN, VIN# JH2PC350-6M700001 REAR BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06451-443-405

$13.23

PAD SET, RR. This part replaces 43105-MW0-405.

43105-MW0-425

$53.45

PAD SET, RR. This part replaces 43105-MW0-415.

43105-MW0-425

$53.45

PISTON

43107-KT7-761

$37.87

SPRING, PAD

43108-MBB-006

$6.19

BRACKET, RR.

43110-MBB-006

$145.00

RETAINER

43112-MV9-016

$10.65

BOOT, SLEEVE

43132-KT7-761

$8.52

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MBW-006

Unavailable

PIN, HANGER

43215-ML3-911

$11.69

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SLEEVE

45111-MA3-006

$13.38

BOLT, PIN

45131-MN9-006

$15.97

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MG3-016

$5.12

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07
