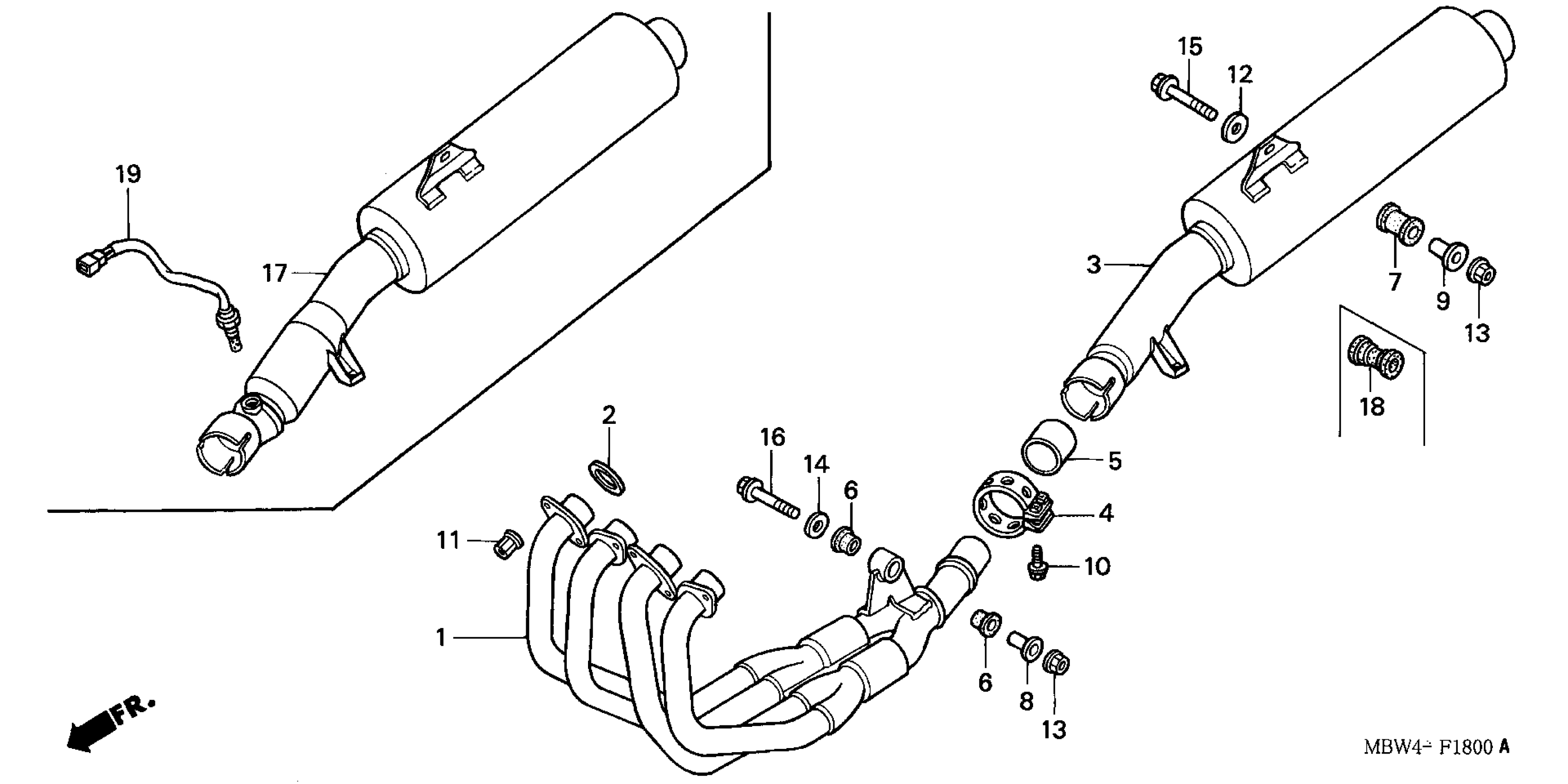

Honda CBR600F4A (06) CBR600F4I, JPN, VIN# JH2PC350-6M700001 MUFFLER Diagram

PIPE, EX.

18150-MBW-D22

Unavailable

GASKET, EX. PIPE

18291-MV9-000

$4.52

BAND, MUFFLER

18371-MAT-000

$28.69

GASKET, MUFFLER

18391-ML0-003

$26.89

RUBBER, MUFFLER MOUNTING

18421-KAF-000

$2.98

RUBBER, MUFFLER MOUNTING

18421-MB0-000

$6.05

COLLAR, MUFFLER MOUNTING

18422-MAL-600

$5.65

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$7.87

BOLT, FLANGE (8X32)

95701-08032-00

$1.28

NUT, FLANGE (7MM)

90304-MM5-000

Unavailable

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.28

NUT, FLANGE (8MM)

94050-08000

$0.87

WASHER, PLAIN (8MM)

94103-08000

$0.60

BOLT, FLANGE (8X60)

96300-08060-00

$2.85

BOLT, FLANGE (8X45)

95701-08045-00

$1.35

MUFFLER

18310-MBW-L40

$1,054.71

SENSOR, OXYGEN

36531-MAT-G22

Unavailable
