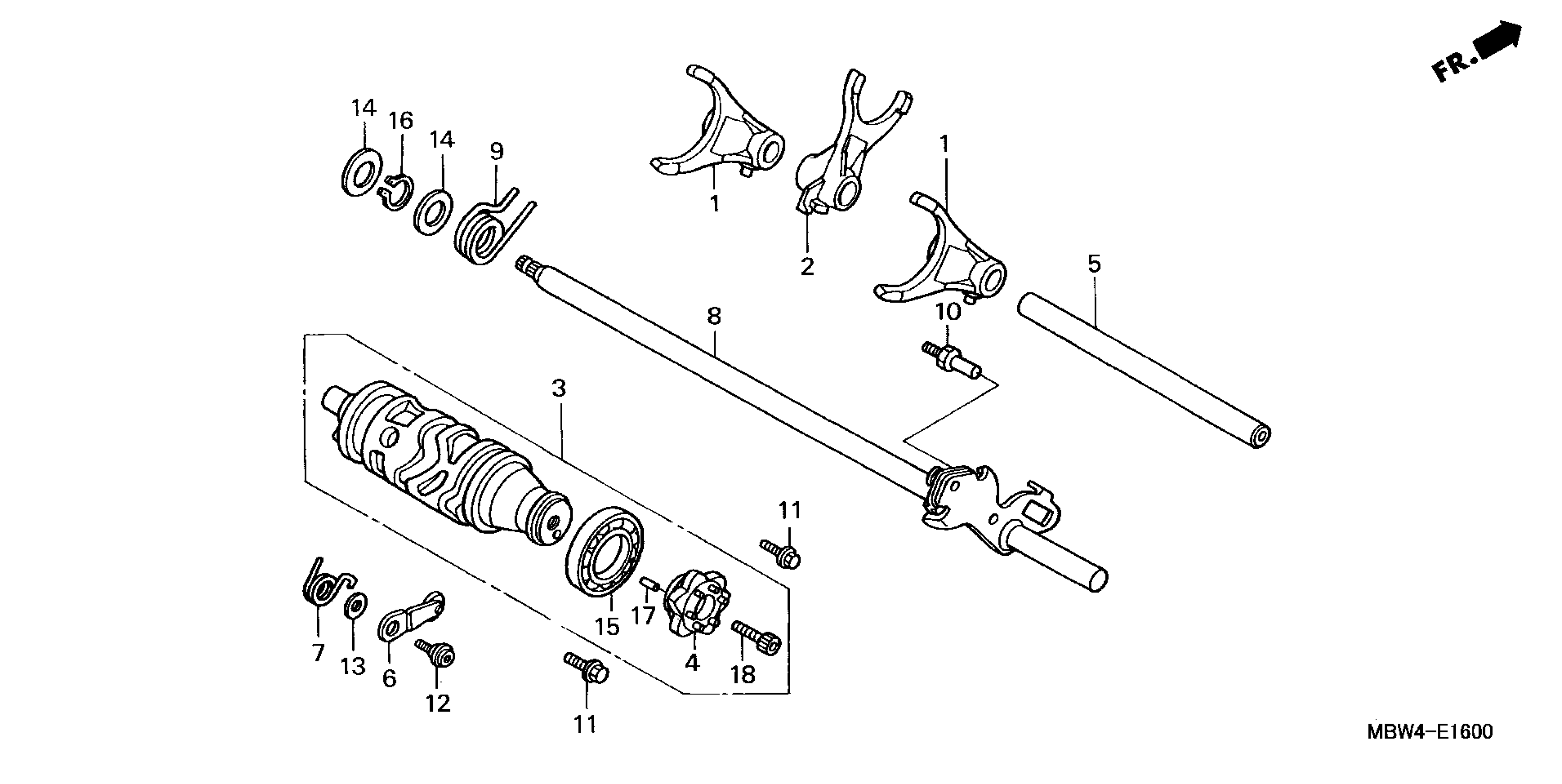

Honda CBR600F4A (06) CBR600F4I, JPN, VIN# JH2PC350-6M700001 GEARSHIFT DRUM Diagram

FORK, GEARSHIFT

24211-MBW-000

Unavailable

FORK, CENTER GEARSHIFT

24212-MBW-J20

Unavailable

DRUM, GEARSHIFT

24310-MBW-J20

$163.81

CENTER, SHIFT DRUM

24315-MAS-E00

$33.19

SHAFT, GEARSHIFT FORK

24321-MBW-000

Unavailable

STOPPER, GEARSHIFT DRUM

24430-MAS-E00

$12.72

SPRING, SHIFT DRUM STOPPER

24435-MAE-000

Unavailable

SPINDLE, GEARSHIFT

24610-MBW-E80

Unavailable

SPRING, SHIFT RETURN

24651-MAS-E00

$5.48

PIN, SHIFT RETURN SPRING

24652-035-000

$3.73

BOLT-WASHER (6X12)

90021-MM5-000

$4.76

PIVOT, SHIFT DRUM STOPPER ARM

90022-MY5-600

$10.57

WASHER, DRUM STOPPER

90417-360-000

$1.58

WASHER (14MM)

90451-155-000

$3.52

BEARING, BALL (16005) (NTN)

91008-374-003

$13.49

CIRCLIP, OUTER (14MM)

94510-14000

$0.93

ROLLER (4X8)

96220-40080

$0.46

BOLT, SOCKET (8X20)

96600-08020-10

$1.94
