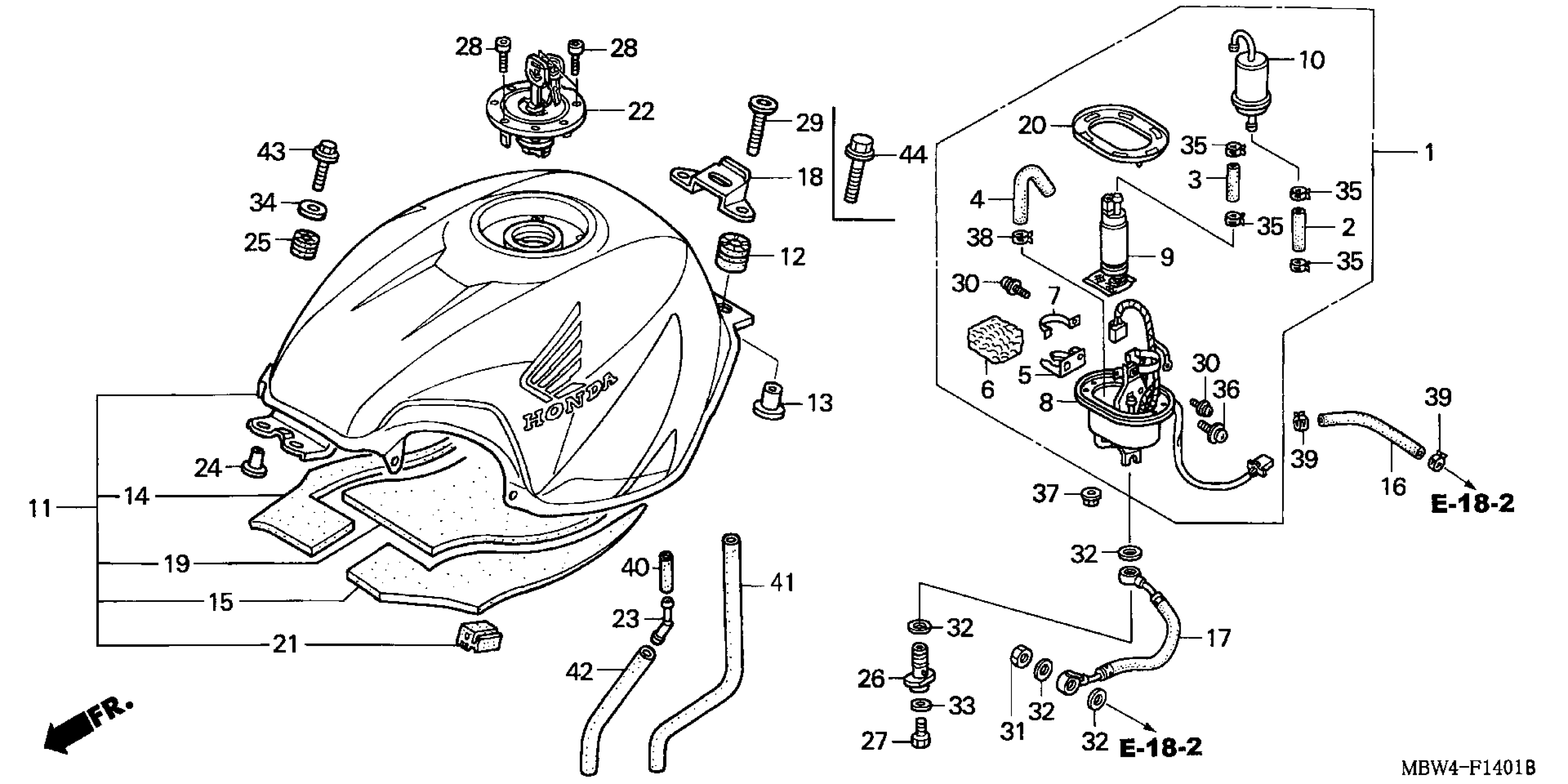

Honda CBR600F4A (06) CBR600F4I, JPN, VIN# JH2PC350-6M700001 FUEL TANK ('01-'06) Diagram

#

Description
Price

1

PUMP ASSY., FUEL

16700-MBW-A11

$584.09

2

HOSE A, PUMP

16711-MAT-D00

$4.97

3

HOSE B, PUMP

16712-MAT-D01

$3.48

4

TUBE, FUEL PUMP RETURN

16713-MBG-010

$3.61

5

STAY B

16714-MAT-D00

Unavailable

6

FILTER, FUEL RETURN

16714-MBG-000

$8.20

7

BAND B

16717-MAT-D00

Unavailable

10

FILTER, FUEL

16900-MBG-013

$62.49

11

TANK SET, FUEL (TYPE1) (WL)

17506-MBW-A60ZA

Unavailable

11

TANK SET, FUEL (TYPE2) (WL)

17506-MBW-A60ZB

Unavailable

12

RUBBER, TANK MOUNTING

17508-MBW-000

$6.02

13

COLLAR, TANK SET

17509-MBW-D20

$5.09

14

MAT, R. FUEL TANK SIDE

17514-MBW-300

Unavailable

15

MAT, L. FUEL TANK SIDE

17515-MBW-300

Unavailable

16

HOSE, FUEL RETURN

17525-MCC-003

Unavailable

17

HOSE, FUEL FEED

17527-MBW-D20

$108.86

18

STAY, FR. SEAT

17530-MBW-000

$13.11

19

MAT, FUEL TANK

17570-MW4-300

Unavailable

20

GASKET, BASE

17574-MBW-D20

$11.25

21

CUSHION, FUEL TANK

17611-ML7-000

$7.66

22

CAP, FUEL FILLER This part replaces 17620-MAS-E02.

17620-MAS-E04

$184.25

23

JOINT, TUBE

19103-ML7-000

$5.80

24

COLLAR, SETTING

61104-422-000

$6.44

25

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.40

26

BOLT, BANJO (12MM)

90008-PP4-E02

$14.76

27

BOLT, SEALING (6MM)

90009-PP4-E01

$6.09

28

BOLT, SOCKET (4X21)

90074-MT4-000

$2.83

30

SCREW-WASHER, LOCK (4X8)

90105-MBG-000

$1.38

31

NUT A, SEALING (12MM)

90201-PD1-000

$4.53

32

WASHER, SEALING (12MM)

90428-PD6-003

$4.84

33

WASHER, SEALING (6MM)

90430-PD6-003

$3.72

34

WASHER, PLAIN (6MM)

90525-428-900

$1.84

35

CLAMP, TUBE (D12)

91405-PD1-004

$8.06

36

SCREW-WASHER (5X12)

93893-05012-08

$1.22

37

NUT, FLANGE (6MM)

94050-06080

$0.59

38

CLAMP, TUBE (D8.5)

95002-40850-04

$2.30

39

CLAMP, TUBE (D10.5)

95002-41050-08

$2.30

40

BULK HOSE, VACUUM (4.5X1000) (4.5X40)

95005-45001-20M

$29.75

41

BULK HOSE, VACUUM (8X1000) (8X650)

95005-80001-20M

$21.47

42

BULK HOSE, VACUUM (8X1000) (8X760)

95005-80001-50M

$14.60

43

BOLT, FLANGE (6X28)

96001-06028-07

$1.38

44

BOLT, FLANGE (8X45)

95701-08045-00

$1.33
