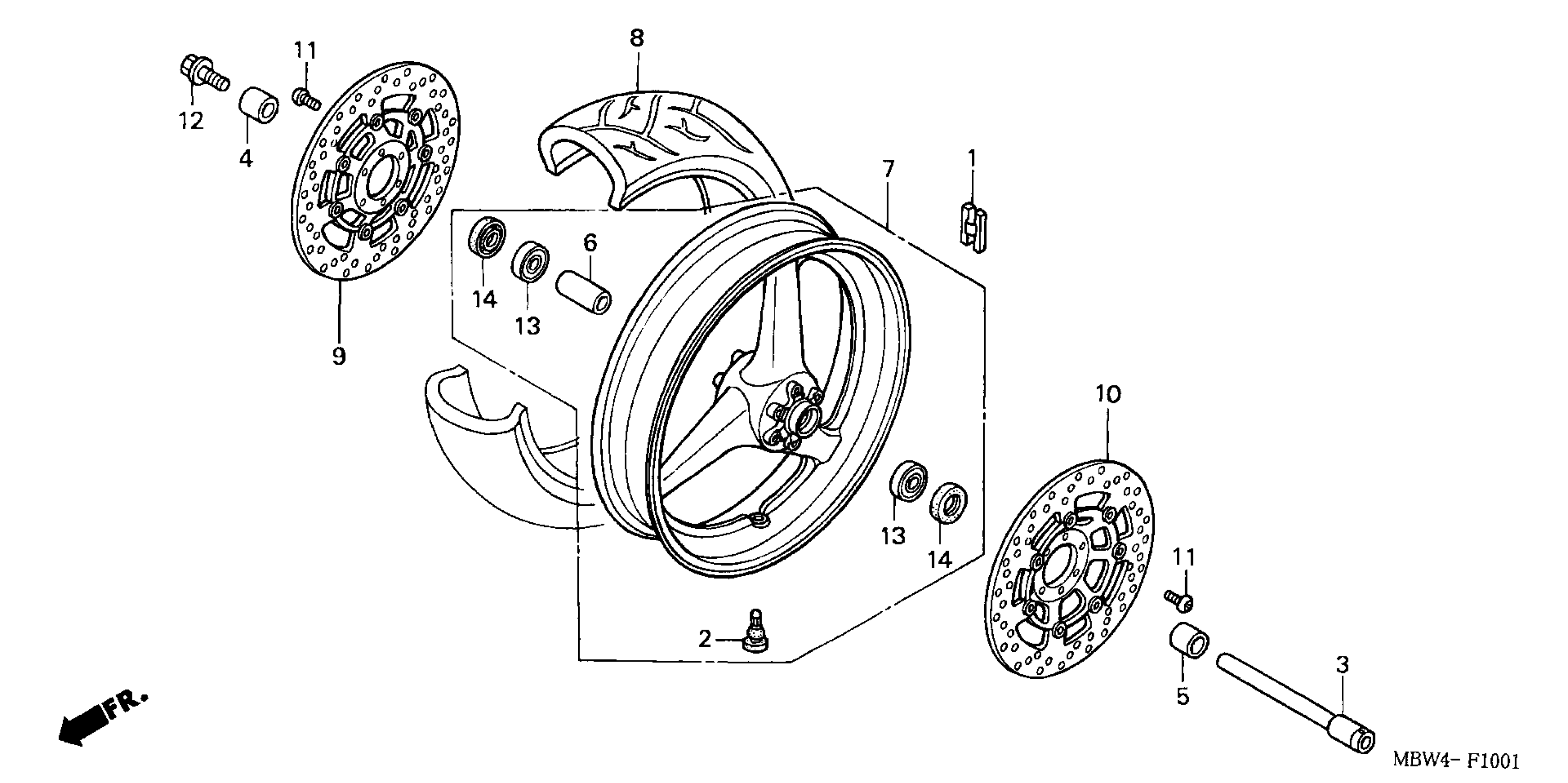

Honda CBR600F4A (06) CBR600F4I, JPN, VIN# JH2PC350-6M700001 FRONT WHEEL ('01-'06) Diagram

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

VALVE, RIM (BS)

42753-ML7-003

$12.74

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

VALVE, RIM (MICHELIN)

42753-MT4-005

$6.23

AXLE, FR. WHEEL

44301-MBW-E11

$54.38

COLLAR, R. FR. WHEEL SIDE

44311-MBW-E10

$10.12

COLLAR, FR. WHEEL SIDE

44311-MS2-000

$10.85

COLLAR, FR. AXLE DISTANCE

44620-MBW-E10

$14.79

WHEEL SUB-ASSY., FR.

44650-MBW-A12

$771.98

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP)

44711-MBW-034

Unavailable

TIRE (120/70ZR17) This part replaces 44711-MBW-E12.

44711-MBW-E13

Unavailable

TIRE, FR. (120/70ZR17) (M/C 58W) (MICHELIN) (NOT AVAILABLE)

44711-MEE-007

Unavailable

DISK, R. FR. BRAKE

45120-MBW-E11

$526.85

DISK, L. FR. BRAKE

45220-MBW-E11

$526.85

BOLT, DISK (6X17) (SAGA) This part replaces 90105-KV3-851.

90106-MT3-003

$3.80

BOLT, FR. AXLE

90305-ML7-000

$10.50

BEARING, RADIAL BALL (20X45X12)

91052-MBW-E11

$13.43

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98
