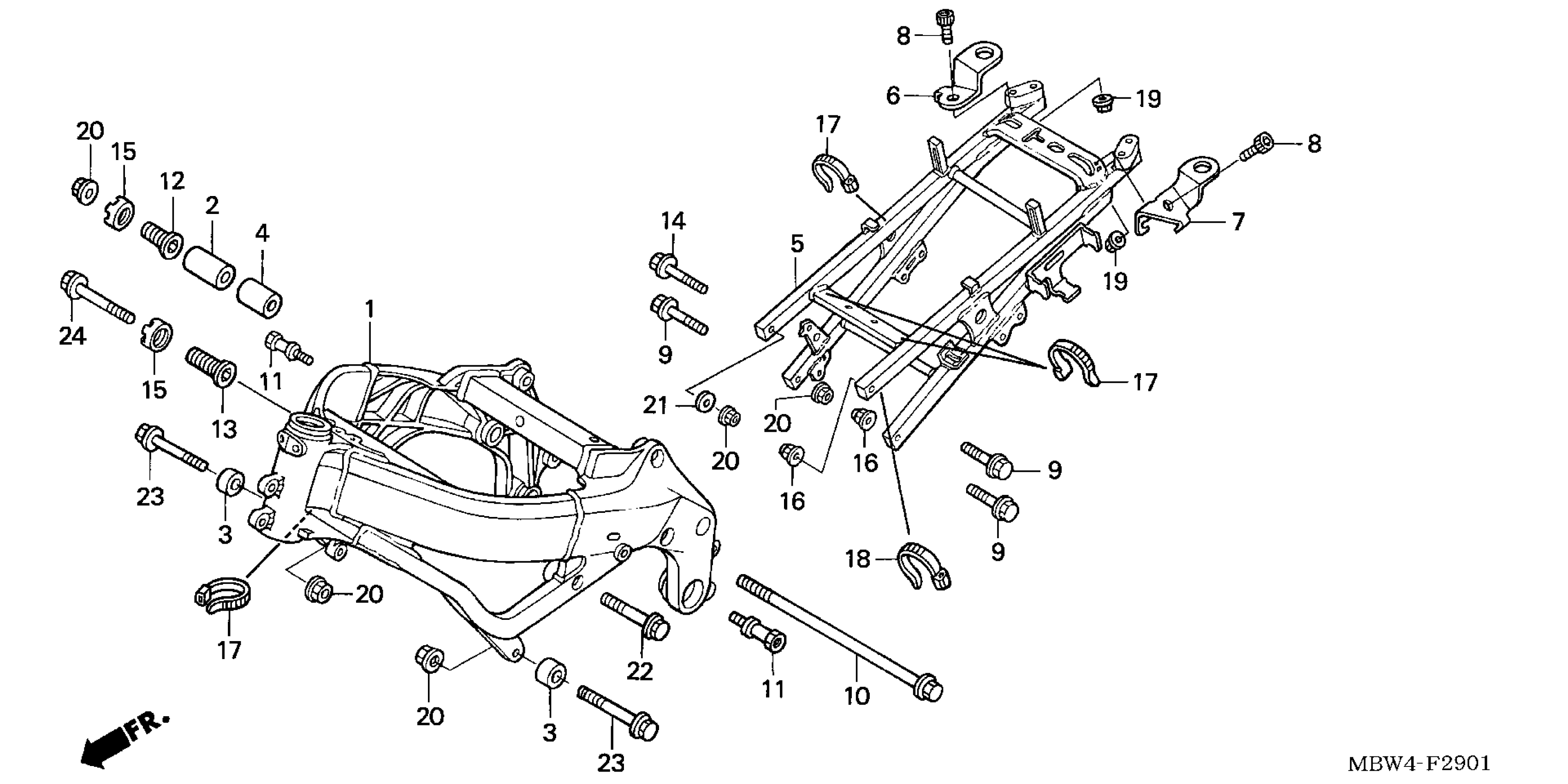

Honda CBR600F4A (06) CBR600F4I, JPN, VIN# JH2PC350-6M700001 FRAME ('04-'06) Diagram

#

Description
Price

1

FRAME *NH460M* (OMEGA SILVER METALLIC)

50100-MBW-A10ZB

$1,439.34

2

COLLAR A, ENGINE HANGER

50190-MBW-D20

Unavailable

3

COLLAR B, ENGINE HANGER

50191-MBW-000

Unavailable

4

COLLAR C, ENGINE HANGER

50192-MBW-D20

Unavailable

5

RAIL, SEAT

50200-MBW-D20

Unavailable

6

STAY, R. RR. COWL

50248-MBW-D20

Unavailable

7

STAY, L. RR. COWL

50249-MBW-D20

Unavailable

8

BOLT, FLANGE (5X16)

90102-MEG-000

$1.25

9

BOLT, FLANGE (10X45)

90101-MBW-000

$3.71

10

BOLT, FLANGE (10X325)

90105-GBB-000

Unavailable

11

BOLT, SPECIAL (8MM)

90110-MBW-000

$9.76

12

COLLAR, ENGINE MOUNT ADJUSTING

90116-MBW-D20

Unavailable

13

COLLAR C, ENGINE MOUNT ADJUSTING

90117-MBW-D20

$13.35

14

BOLT, FLANGE (10X55)

90162-MCJ-000

$2.68

15

NUT, LOCK (20MM)

90201-MW0-000

$9.98

16

NUT, CAP (10MM)

90209-MM8-000

$5.54

16

NUT, CAP (10MM) This part replaces 90308-MS9-000.

90209-MM8-000

$5.54

17

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.40

18

BAND, SUCTION HOSE (BLACK)

90679-SG9-E01

$3.44

19

NUT, FLANGE (5MM)

94050-05000

$1.21

20

NUT, FLANGE (10MM)

94050-10000

$1.43

21

WASHER, PLAIN (10MM)

94101-10000

Unavailable

22

BOLT, FLANGE (10X50)

95801-10050-00

$5.78

23

BOLT, FLANGE (10X60)

95801-10060-00

$2.07

24

BOLT, FLANGE (10X62)

90151-HC5-000

$7.40

24

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.40
