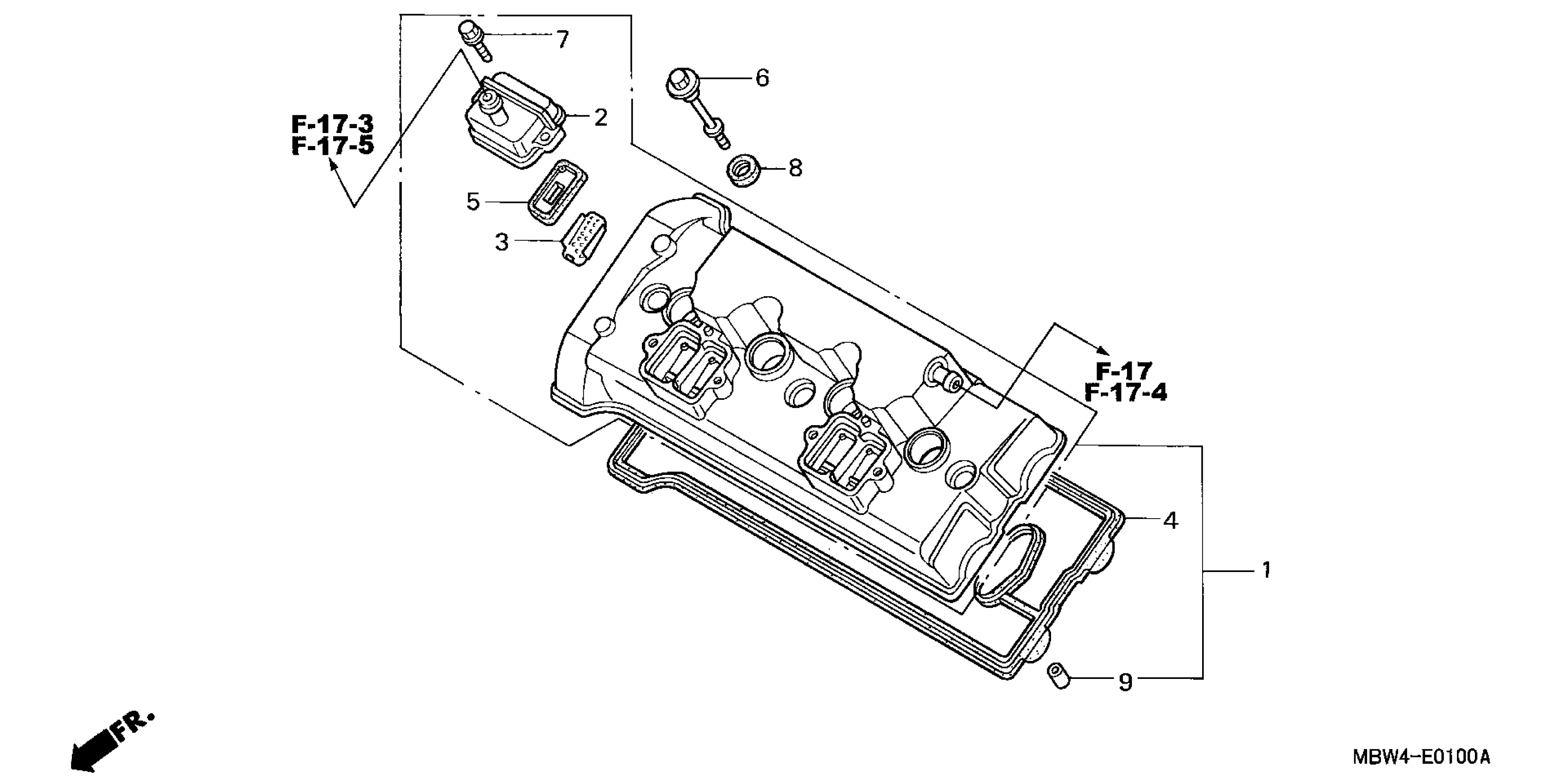

Honda CBR600F4A (06) CBR600F4I, JPN, VIN# JH2PC350-6M700001 CYLINDER HEAD COVER Diagram

COVER ASSY., CYLINDER HEAD

12310-MBW-J20

Unavailable

COVER, REED VALVE

12331-MBW-000

$37.07

PLATE, PORT (AI)

12341-MAT-750

$12.93

GASKET, HEAD COVER

12391-MBW-J20

$49.75

VALVE, REED This part replaces 18601-MCJ-000.

18601-MCJ-003

$13.29

VALVE, REED

18601-MCJ-003

$13.29

BOLT, HEAD COVER

90002-MY5-850

$8.73

BOLT, FLANGE (6X20)

90020-ZC3-000

$1.79

RUBBER, MOUNTING

90543-MV9-670

$4.71

PIN, DOWEL (8X14)

94301-08140

$2.62
