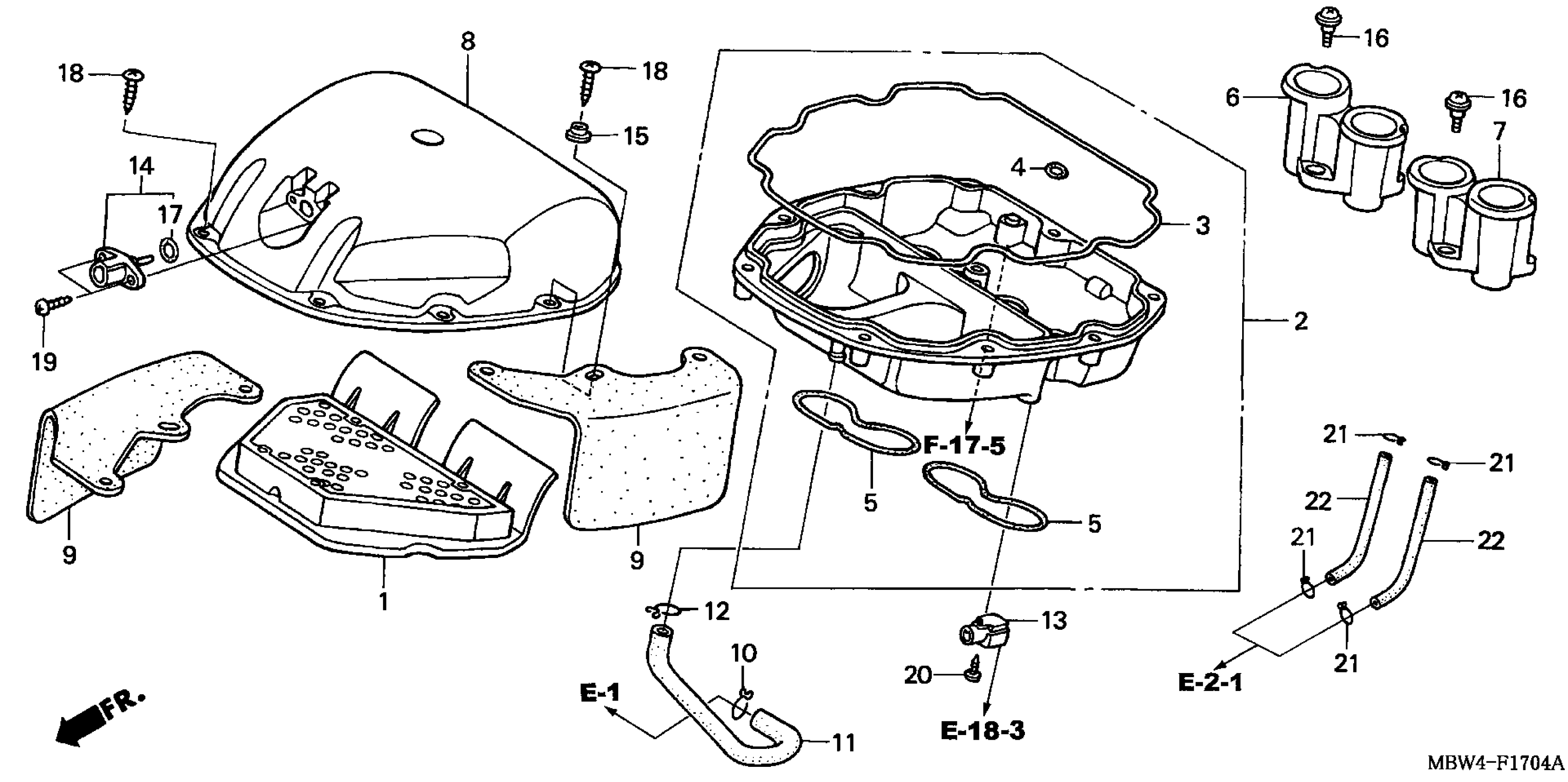

Honda CBR600F4A (06) CBR600F4I, JPN, VIN# JH2PC350-6M700001 AIR CLEANER ('01-'06) Diagram

ELEMENT, AIR CLEANER

17210-MBW-D21

$37.14

HOUSING, AIR CLEANER

17221-MBW-A11

Unavailable

SEAL A, AIR CLEANER HOUSING

17222-MBW-D20

Unavailable

SEAL B, AIR CLEANER HOUSING

17223-MAT-300

$2.87

SEAL C, AIR CLEANER HOUSING

17224-MBW-D20

$4.97

FUNNEL, R. AIR

17225-MBW-D20

Unavailable

FUNNEL, L. AIR

17226-MBW-D20

$18.25

COVER, AIR CLEANER

17231-MBW-D21

Unavailable

RUBBER, AIR CLEANER

17258-MBW-A10

Unavailable

CLIP, BREATHER TUBE

17316-611-000

$8.28

TUBE, BREATHER

17554-MBW-000

Unavailable

CLIP, BREATHER TUBE

17554-MB0-000

$2.65

SENSOR, MAP

37830-MCF-003

$185.50

SENSOR ASSY., AIR TEMPERATURE

37880-P05-A00

$29.21

COLLAR, FAIRING STAY

64203-166-610

$2.33

SCREW, RR. AIR CLEANER LID SIDE

64605-MY1-000

$3.16

O-RING (7.5X1.5)

91303-PK2-005

$2.77

SCREW, TAPPING (5X20)

93903-25480

$0.61

SCREW, TAPPING (5X16)

93911-25420

$0.88

SCREW, TAPPING (4X12)

93913-24220

$0.83

CLIP, TUBE (B7)

95002-02070

$1.59

BULK HOSE, VACUUM (3.5X1000) (3.5X220)

95005-35001-20M

$8.69
