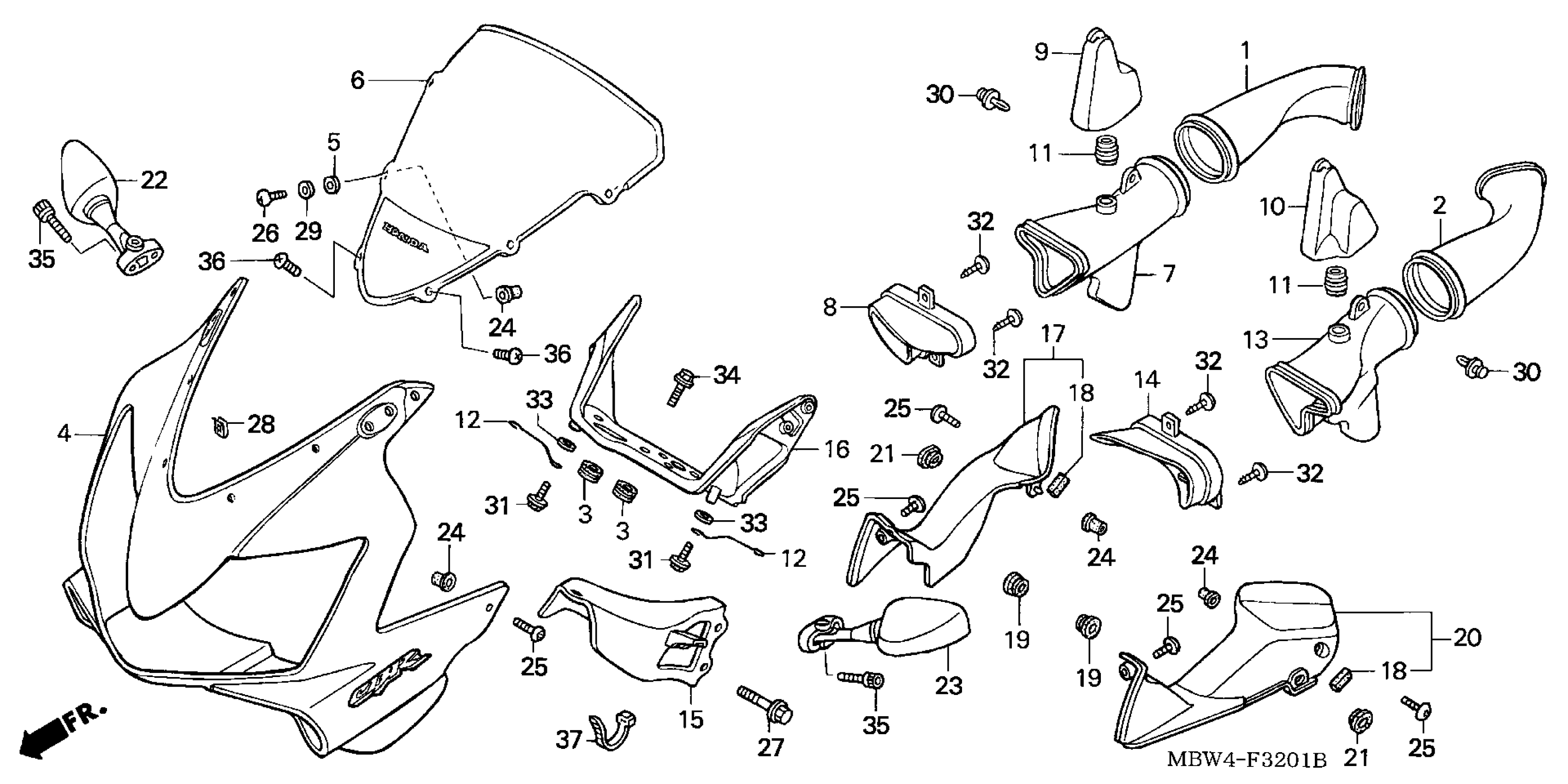

Honda CBR600F4A (05) CBR600F4I, JPN, VIN# JH2PC350-5M600001 TO JH2PC350-5M699999 UPPER COWL ('01-'06) Diagram

DUCT, R. AIR CLEANER IN.

17251-MBW-D20

Unavailable

DUCT, L. AIR CLEANER IN.

17252-MBW-D20

Unavailable

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COWL SET (UPPER) (TYPE1) (WL)

64100-MBW-A50ZA

$1,047.93

COWL SET (UPPER) (TYPE2) (WL)

64100-MBW-A50ZB

$891.90

WASHER, SCREEN SETTING

64205-166-610

$2.21

WINDSCREEN SET (TYPE1) (WL)

64250-MBW-A20ZA

Unavailable

DUCT, R. AIR

64330-MBW-A10

Unavailable

GRILLE, R. AIR DUCT

64335-MBW-D20

Unavailable

RESONATOR, R. AIR DUCT

64340-MBW-A10

$25.51

RESONATOR, L. AIR DUCT

64345-MBW-A10

Unavailable

TUBE, RESONATOR

64350-MBW-A10

Unavailable

WIRE, RESONATOR SUPPORT

64351-MBW-D20

Unavailable

DUCT, L. AIR

64380-MBW-A10

Unavailable

GRILLE, L. AIR DUCT

64385-MBW-D20

Unavailable

STAY A, COWL (UPPER)

64501-MBW-D20

Unavailable

STAY B, COWL (UPPER)

64502-MBW-D20

$145.41

COVER, R. AIR DUCT *NH430R* (GENTLE GRAY)

64580-MBW-D20ZA

$53.20

CUSHION, AIR DUCT COVER

64581-MBW-300

$4.23

RUBBER, AIR DUCT COVER SETTING

64586-MBW-D20

$3.08

COVER, L. AIR DUCT *NH430R* (GENTLE GRAY)

64590-MBW-D20ZA

Unavailable

GROMMET, SIDE COVER

83551-MA6-000

$3.35

MIRROR ASSY., R. BACK

88110-MBW-023

$155.89

MIRROR ASSY., L. BACK

88120-MBW-023

$155.89

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

BOLT, SPECIAL (5X14)

90118-MBW-A10

$2.11

BOLT, FLANGE (8X28)

90120-MCJ-000

$3.02

NUT, CLIP (5MM)

90312-MT3-000

$4.57

WASHER, THRUST (5MM)

90504-964-000

$1.90

CLIP, BODY

90683-MBW-003

$2.16

BOLT-WASHER (6X16)

93401-06016-08

$1.49

SCREW, TAPPING (5X10)

93903-25180

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

BOLT, SOCKET (6X14)

96600-06014-07

$1.49

BOLT, SPECIAL (5X16)

90118-MBB-000

$3.60

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92
