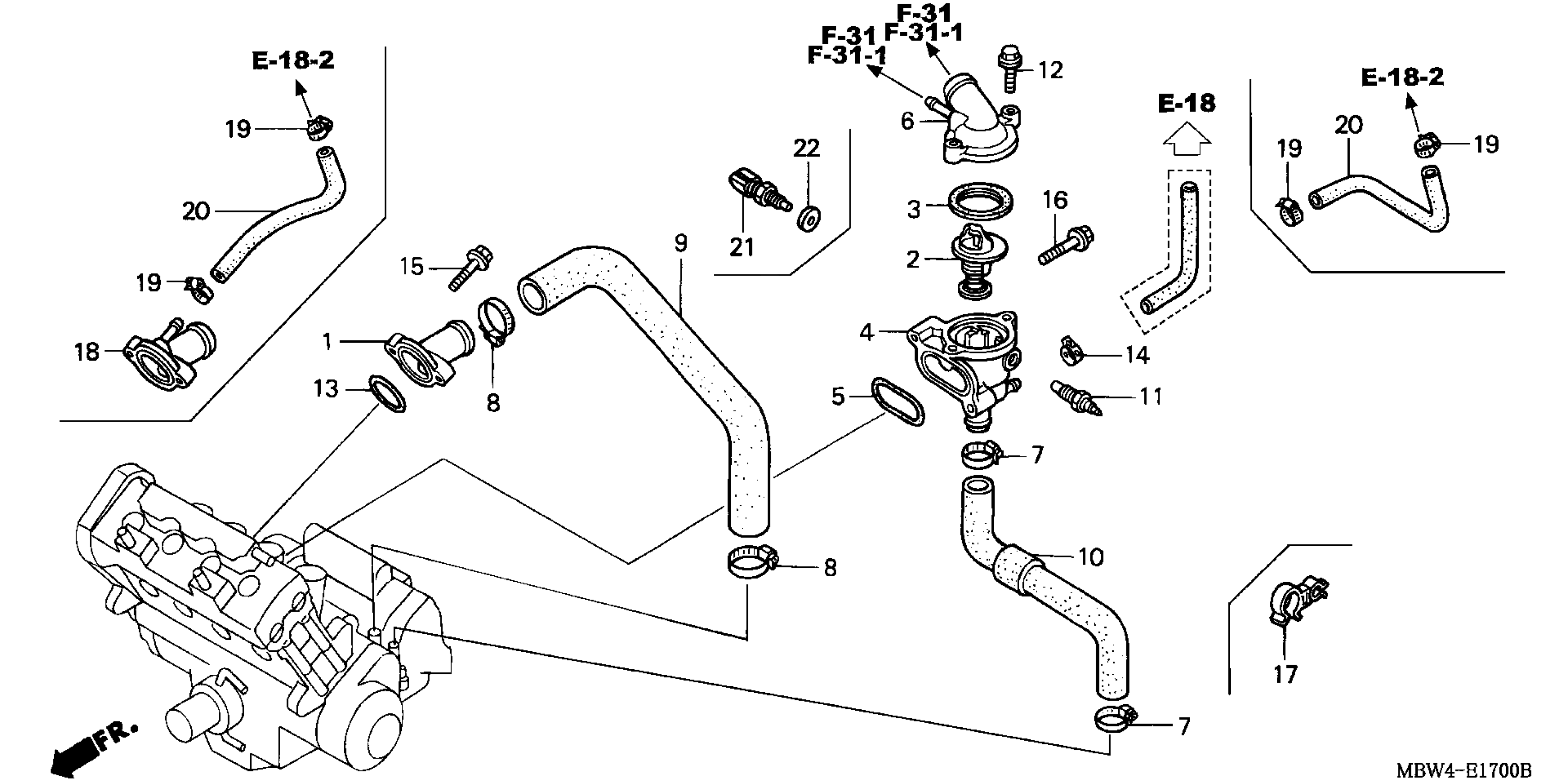

Honda CBR600F4A (00) CBR600F4I, JPN, VIN# JH2PC350-YM100001 TO JH2PC350-YM106777 THERMOSTAT Diagram

JOINT, WATER

19063-MBW-000

Unavailable

THERMOSTAT

19300-MBW-003

$60.02

RUBBER, THERMOSTAT

19305-KV3-010

$6.07

CASE, THERMOSTAT

19311-MBW-305

Unavailable

GASKET, THERMOSTAT CASE

19312-MBW-000

$3.72

COVER, THERMOSTAT

19315-MBW-000

Unavailable

CLAMP A, WATER HOSE

19505-KS6-700

$11.06

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

HOSE A, WATER

19525-MBW-000

$17.84

HOSE B, WATER

19526-MBW-000

Unavailable

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

BOLT, FLANGE (6X23) (CT200)

90018-ZE1-000

$1.75

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

CLAMP, TUBE (D12)

95002-41200-08

$2.34

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
