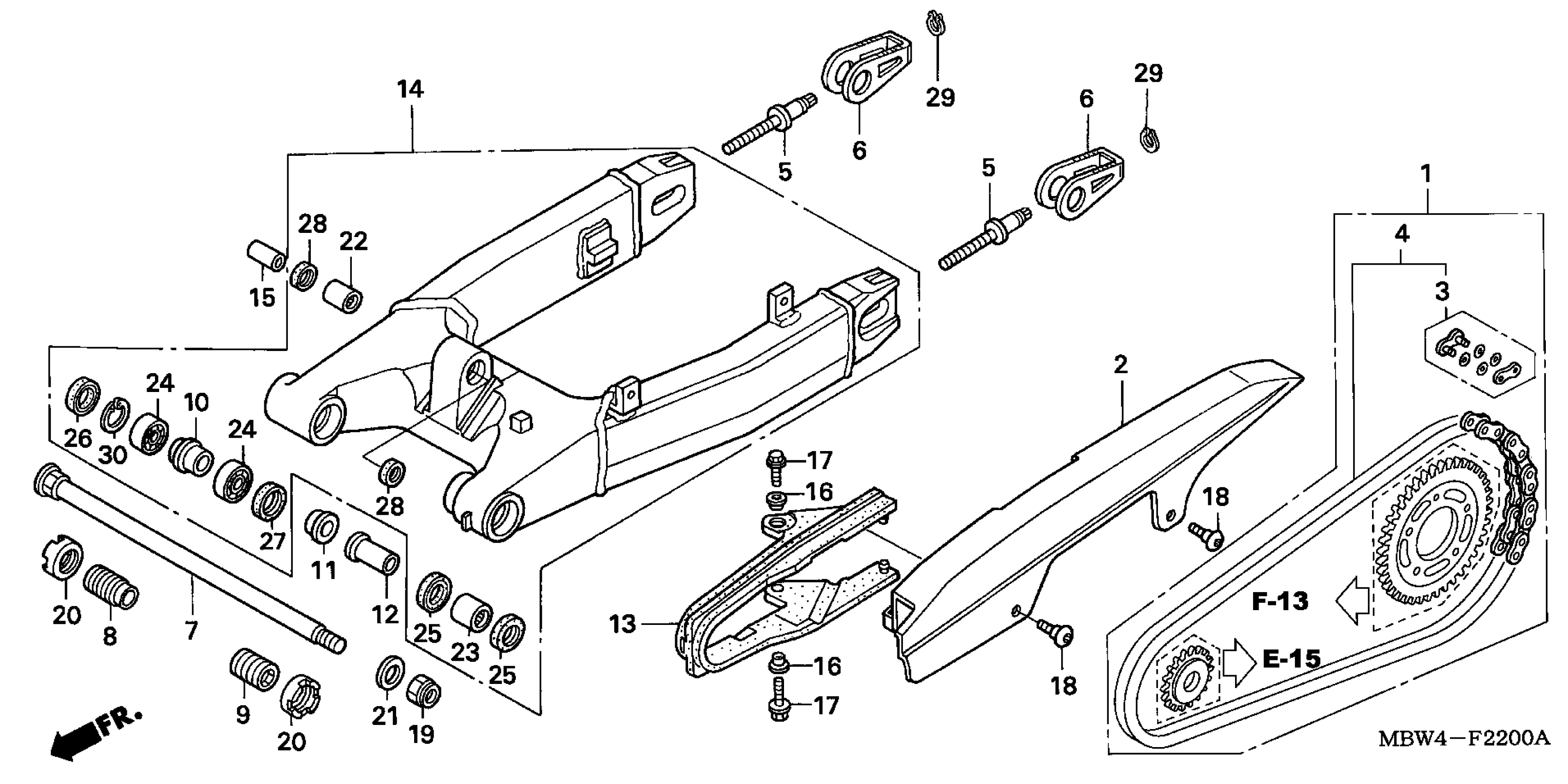

Honda CBR600F4A (00) CBR600F4I, JPN, VIN# JH2PC350-YM100001 TO JH2PC350-YM106777 SWINGARM ('99-'00) Diagram

#

Description
Price

1

AHAIN KIT, DRIVE (102L-120L) (RK/DAIDO) (STANDARD LINK 108L)

06406-MBW-670

Unavailable

2

CASE, DRIVE CHAIN

40510-MBW-000

$74.88

3

MASTER LINK SET (DAIDO)

40535-MAL-G01

$7.28

3

MASTER LINK SET (RK EXCEL)

40535-MAL-G02

$7.74

4

CHAIN SET, DRIVE (DID525HV-112L-120L) (DAIDO)

06405-MAL-P00

Unavailable

4

CHAIN SET, DRIVE (RK525ROZ1) (112L-120L) (RK EXCEL)

06405-MAL-P10

Unavailable

4

CHAIN, DRIVE (DID525HV-120ZB) (DAIDO) (STANDARD LINK 108L)

40540-MAL-G01

$217.70

4

CHAIN, DRIVE (525ROZ6-120LJFZ) (RK EXCEL) (STANDARD LINK 112L) This part replaces 40540-MAL-G02.

40540-MFJ-D02

$208.55

5

BOLT, CHAIN ADJUSTING

40542-KV3-700

$7.52

6

ADJUSTER, CHAIN This part replaces 40543-MAS-000.

40543-MAS-010

$15.56

7

BOLT, SWINGARM PIVOT

52101-MBW-000

Unavailable

8

BOLT, R. PIVOT ADJUSTING

52108-MBW-000

Unavailable

9

BOLT, L. PIVOT ADJUSTING

52109-MBW-000

Unavailable

10

COLLAR, CENTER PIVOT DISTANCE

52141-MBB-000

Unavailable

11

COLLAR, R. PIVOT (INNER)

52141-MBW-000

Unavailable

12

COLLAR, L. PIVOT DISTANCE

52143-MBW-000

Unavailable

13

SLIDER, CHAIN

52170-MBW-000

$42.98

14

SWINGARM SUB-ASSY.

52200-MBW-000

Unavailable

15

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$10.49

16

COLLAR

81312-GJ5-000

$3.08

17

BOLT, FLANGE (6X18)

90105-MY9-000

$2.67

18

SCREW, PAN (6X11)

90106-KY2-701

$3.95

19

NUT, U (18MM)

90305-KZ4-891

$14.21

20

NUT, SWINGARM PIVOT LOCK

90355-469-000

$15.75

21

WASHER (18X32X2)

90401-KZ4-890

$4.16

22

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.18

23

BEARING, NEEDLE

91071-MR7-003

$22.90

24

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$16.17

25

DUST SEAL (28X37X4)

91202-MR7-003

$5.91

26

DUST SEAL (26X37X5)

91214-MR7-003

$6.51

27

DUST SEAL (27X34X4)

91261-KZ3-861

$7.26

28

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77

29

CIRCLIP, OUTER (10MM)

94511-10000

$0.84

30

CIRCLIP, INNER (37MM)

94520-37000

$1.99
