Partiron

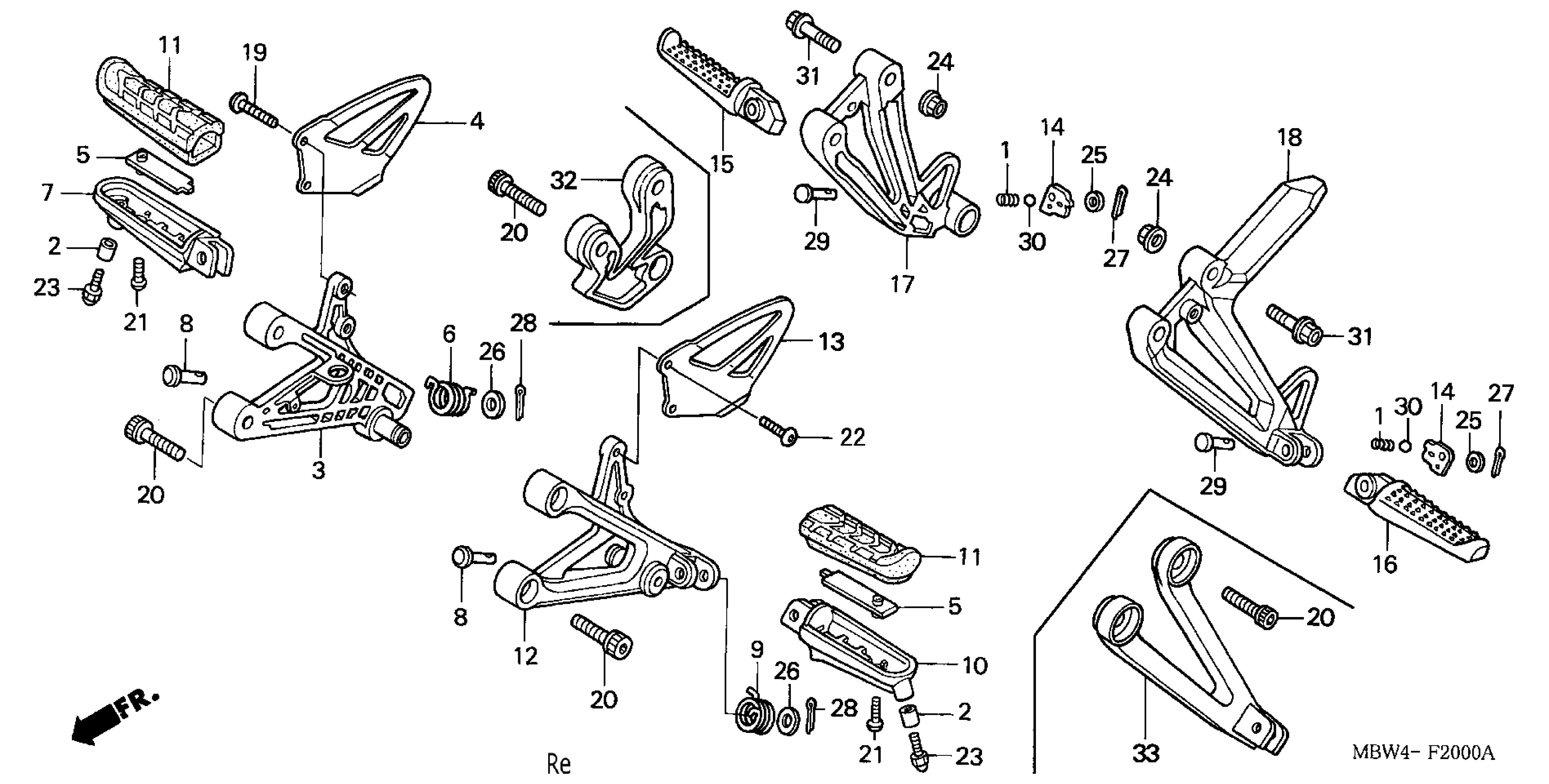

Honda CBR600F4A (00) CBR600F4I, JPN, VIN# JH2PC350-YM100001 TO JH2PC350-YM106777 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

COLLAR, SPECIAL (6X14)

30514-MZ7-000

$3.64

3

HOLDER, R. STEP *NH35M* (CLOUD SILVER METALLIC)

50600-MBW-000ZA

$98.68

4

GUARD, R. STEP This part replaces 50607-MBW-000.

50607-MBW-010

Unavailable

4

GUARD, R. STEP

50607-MBW-010

Unavailable

5

PLATE, STEP SETTING

50609-MBW-000

$5.07

6

SPRING, R. STEP RETURN

50617-445-840

$5.07

7

ARM, R. MAIN STEP

50635-MBW-000

$48.72

8

PIN, STEP BAR

50639-ML0-010

Unavailable

9

SPRING, L. STEP RETURN

50644-445-840

$5.07

10

ARM, L. MAIN STEP

50645-MBW-000

$48.72

11

RUBBER, MAIN STEP (COO) This part replaces 50661-MBW-000.

50661-MJM-305

$8.01

12

HOLDER, L. STEP *NH35M* (CLOUD SILVER METALLIC)

50700-MBW-000ZA

$98.68

13

GUARD, L. STEP This part replaces 50707-MBW-000.

50707-MBW-010

Unavailable

13

GUARD, L. STEP

50707-MBW-010

Unavailable

14

PLATE, PILLION STEP CLICK

50718-KT7-761

$3.73

15

BAR, R. PILLION STEP (COO) | Use up to Frame SN YM106608 This part replaces 50720-KT7-760.

50720-K26-305

$40.37

15

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-761.

50720-K26-305

$40.37

16

BAR, L. PILLION STEP (COO) | Use up to Frame SN YM106608 This part replaces 50730-KT7-760.

50730-K26-305

$40.37

16

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-761.

50730-K26-305

$40.37

17

HOLDER, R. PILLION STEP *NH35M* (CLOUD SILVER METALLIC)

50750-MBW-000ZA

$93.46

18

HOLDER, L. PILLION STEP *NH35M* (CLOUD SILVER METALLIC)

50760-MBW-000ZA

$97.68

19

BOLT, SPECIAL (6X25)

90085-MBW-000

$3.42

20

BOLT, SOCKET (8X25)

90105-MBW-000

$3.13

21

BOLT, SPECIAL (5X14)

90118-MBW-000

$2.83

22

SCREW, PAN (6X14)

90118-MR1-000

$2.88

23

BOLT, HEX. CAP (6X22)

92501-06022-0A

$2.58

24

NUT, FLANGE (8MM)

94050-08000

$0.86

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

25

WASHER, PLAIN (6MM)

94101-06800

Unavailable

26

WASHER, PLAIN (8MM)

94102-08000

$0.86

27

PIN, SPLIT (1.6X12)

94201-16120

$0.94

28

PIN, SPLIT (2.0X15)

94201-20150

$0.94

29

PIN C, PILLION STEP

95015-83000

$2.19

30

BALL, STEEL (#8) (1/4)

96211-08000

$1.13

31

BOLT, FLANGE (8X35)

96300-08035-00

$1.78
