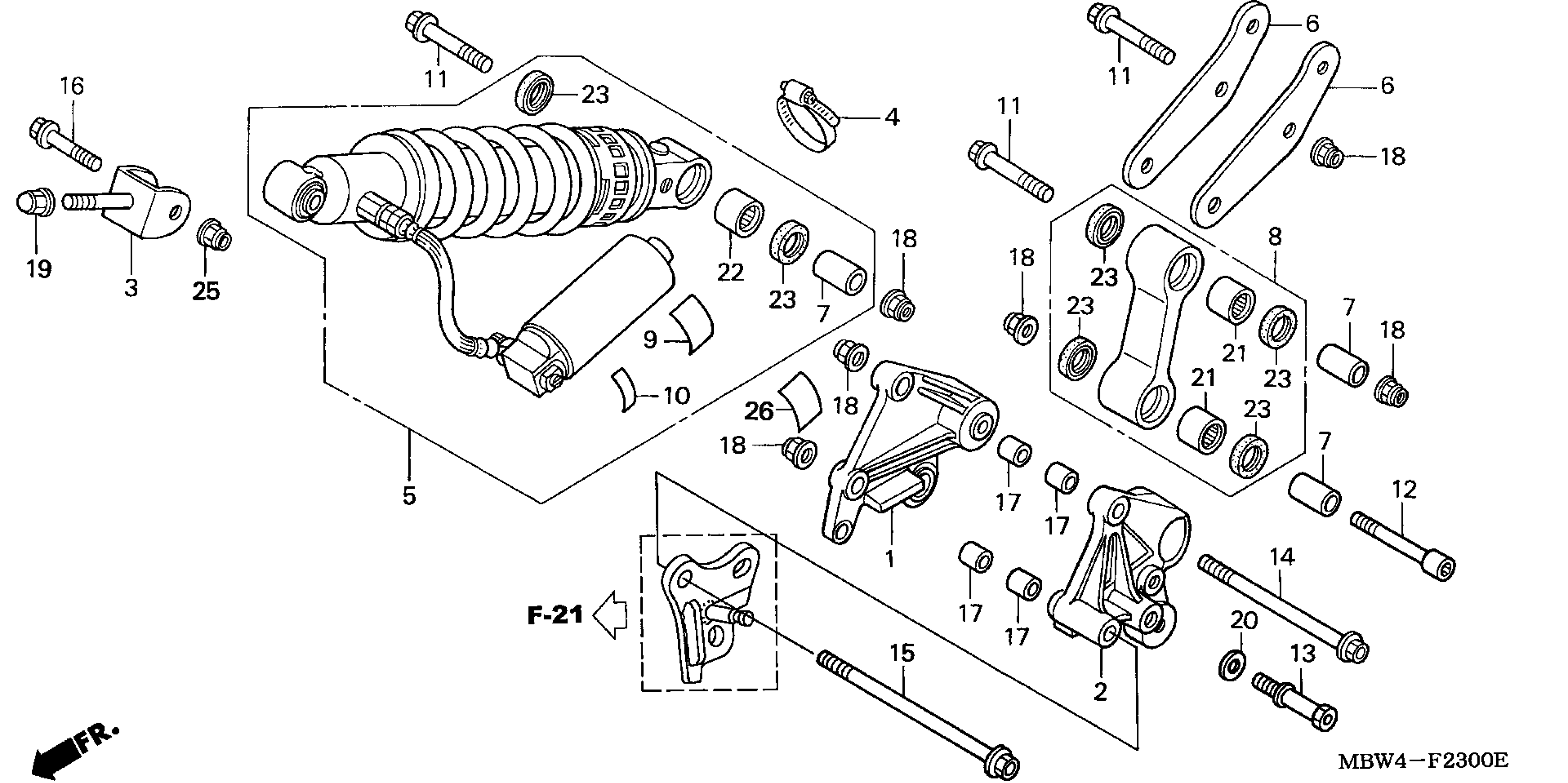

Honda CBR600F4A (00) CBR600F4I, JPN, VIN# JH2PC350-YM100001 TO JH2PC350-YM106777 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

BRACKET, R. CUSHION (LOWER) This part replaces 50120-MBW-770.

50120-MBW-771

$89.28

1

BRACKET, R. CUSHION (LOWER)

50120-MBW-771

$89.28

2

BRACKET, L. CUSHION (LOWER) This part replaces 50121-MBW-770.

50121-MBW-771

$89.28

2

BRACKET, L. CUSHION (LOWER)

50121-MBW-771

$89.28

3

BRACKET, RR. CUSHION

50233-MZ7-000

$16.77

4

BAND, SUB-TANK

50252-MW0-000

$20.96

5

CUSHION ASSY., RR.

52400-MBW-003

Unavailable

6

PLATE, RR. SHOCK ABSORBER LINK

52461-MBW-000

Unavailable

7

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$10.49

8

ROD SUB-ASSY., SHOCK CONNECTING

52475-MAS-E00

$174.23

9

LABEL, RR. DAMPER

87516-KV6-610

$4.49

10

LABEL, DAMPER ADJUSTING

87519-KV3-841

Unavailable

11

BOLT, FLANGE (10X62)

90101-MBB-000

$3.75

12

BOLT, SOCKET (10X66)

90110-KY6-000

$6.51

13

BOLT, SPECIAL (8MM)

90110-MBW-770

Unavailable

14

BOLT, FLANGE (10X135)

90114-MBW-000

Unavailable

15

BOLT, FLANGE (10X180)

90115-MBW-000

$9.81

16

BOLT, FLANGE (10X52)

90154-HA8-000

$7.79

17

PIN, DOWEL (10X16)

90199-MBW-000

$2.95

18

NUT, U (10MM)

90304-GE8-003

$3.42

19

NUT, CAP (10MM)

90209-MM8-000

$5.46

19

NUT, CAP (10MM) This part replaces 90308-MS9-000.

90209-MM8-000

$5.46

20

WASHER (8MM)

90483-028-000

$1.38

21

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.18

22

BEARING, NEEDLE (17X24X20) (NTN)

91072-KT7-003

$18.00

23

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77

25

NUT, U (10MM)

90304-GE8-003

$3.42
