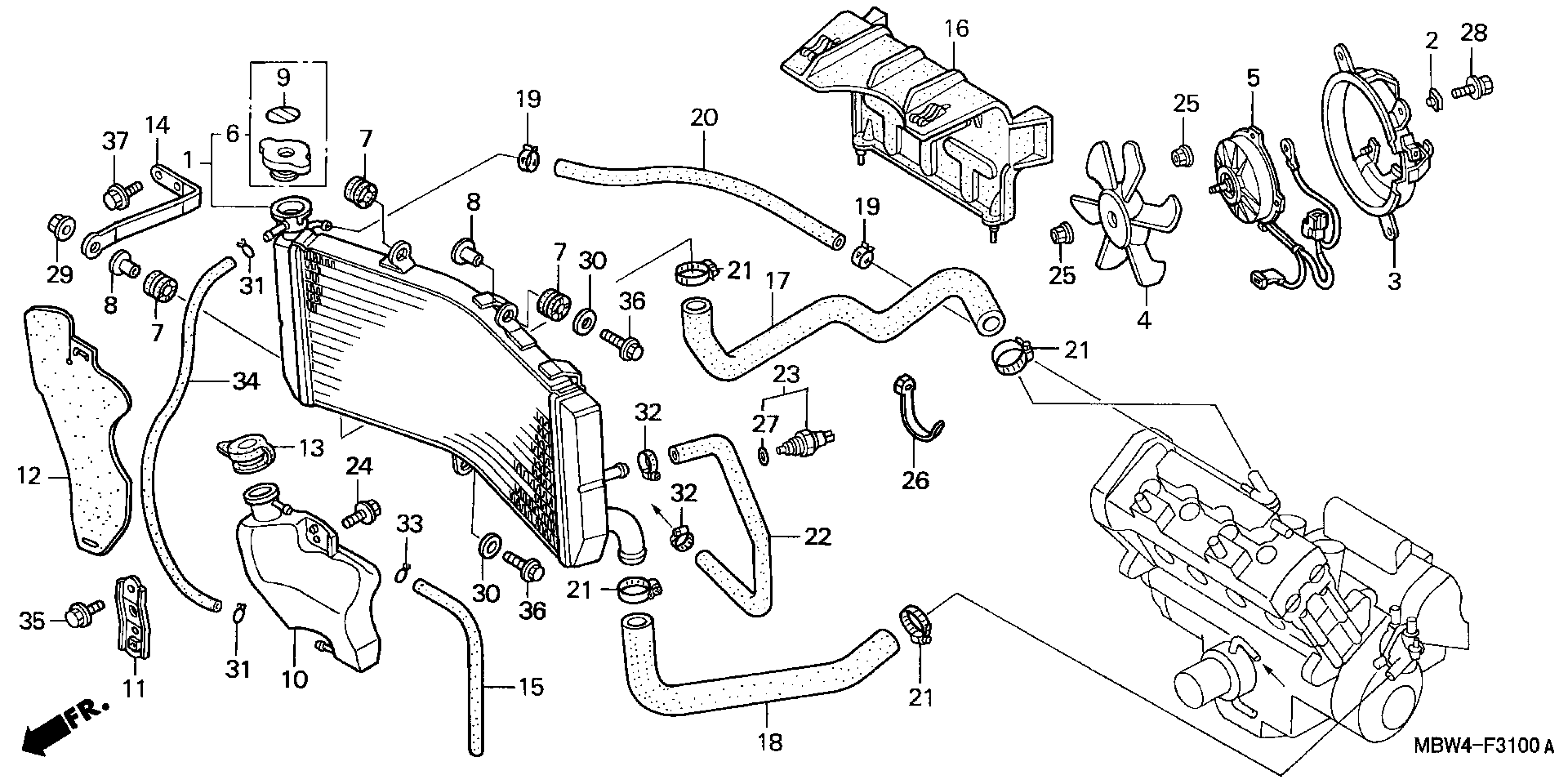

Honda CBR600F4A (00) CBR600F4I, JPN, VIN# JH2PC350-YM100001 TO JH2PC350-YM106777 RADIATOR ('99-'00) Diagram

#

Description
Price

1

RADIATOR

19010-MBW-671

Unavailable

2

NUT, SETTING

19014-KEA-003

$2.88

3

SHROUD

19015-MBW-003

$47.48

4

FAN, COOLING (TOYO)

19025-MN4-003

$58.10

5

MOTOR ASSY., FAN

19030-MBW-610

Unavailable

6

CAP, RADIATOR This part replaces 19045-GBF-770.

19045-MZ1-621

$45.13

7

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

8

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

9

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$8.28

9

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-MV9-921.

19055-MV9-881

$8.28

10

TANK, RADIATOR RESERVE

19101-MBW-000

Unavailable

11

STAY, RESERVE TANK (UPPER)

19102-MBW-000

Unavailable

12

RUBBER This part replaces 19104-MBW-670.

19104-MBW-000

Unavailable

13

CAP, RESERVE TANK

19104-MB0-700

$10.92

14

STAY, RADIATOR (LOWER)

19105-MBW-000

Unavailable

15

TUBE, RESERVE TANK DRAIN

19106-MBW-000

Unavailable

16

RUBBER, HEAT GUARD

19125-MBW-000

Unavailable

17

HOSE, RADIATOR (UPPER)

19501-MBW-000

$30.67

18

HOSE, RADIATOR (LOWER)

19505-MBW-000

Unavailable

19

CLAMP, TUBE (D12.5)

95002-41250-08

$2.30

20

TUBE, WATER

19511-MBW-000

Unavailable

21

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

22

HOSE D, WATER This part replaces 19528-MBW-000.

19528-MBW-N30

Unavailable

23

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$64.56

24

BOLT, FLANGE (6MM)

90111-162-000

$2.62

25

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

26

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

27

O-RING (13.5X1.4)

91307-PH7-660

$2.78

27

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.78

28

BOLT-WASHER (6X12)

93401-06012-08

Unavailable

29

NUT, FLANGE (6MM)

94050-06000

$0.59

30

WASHER, PLAIN (6MM)

94103-06000

$0.90

31

CLIP, TUBE (B10)

95002-02100

$1.72

32

CLAMP A, WATER HOSE

19505-KS6-700

$10.57

33

CLIP, TUBE (C9)

95002-50000

$1.14

34

BULK HOSE, VACUUM (5.5X3000) (5.3X650)

95005-55003-20M

$30.62

35

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

36

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

37

BOLT, FLANGE (6X12)

96300-06012-00

$0.86
