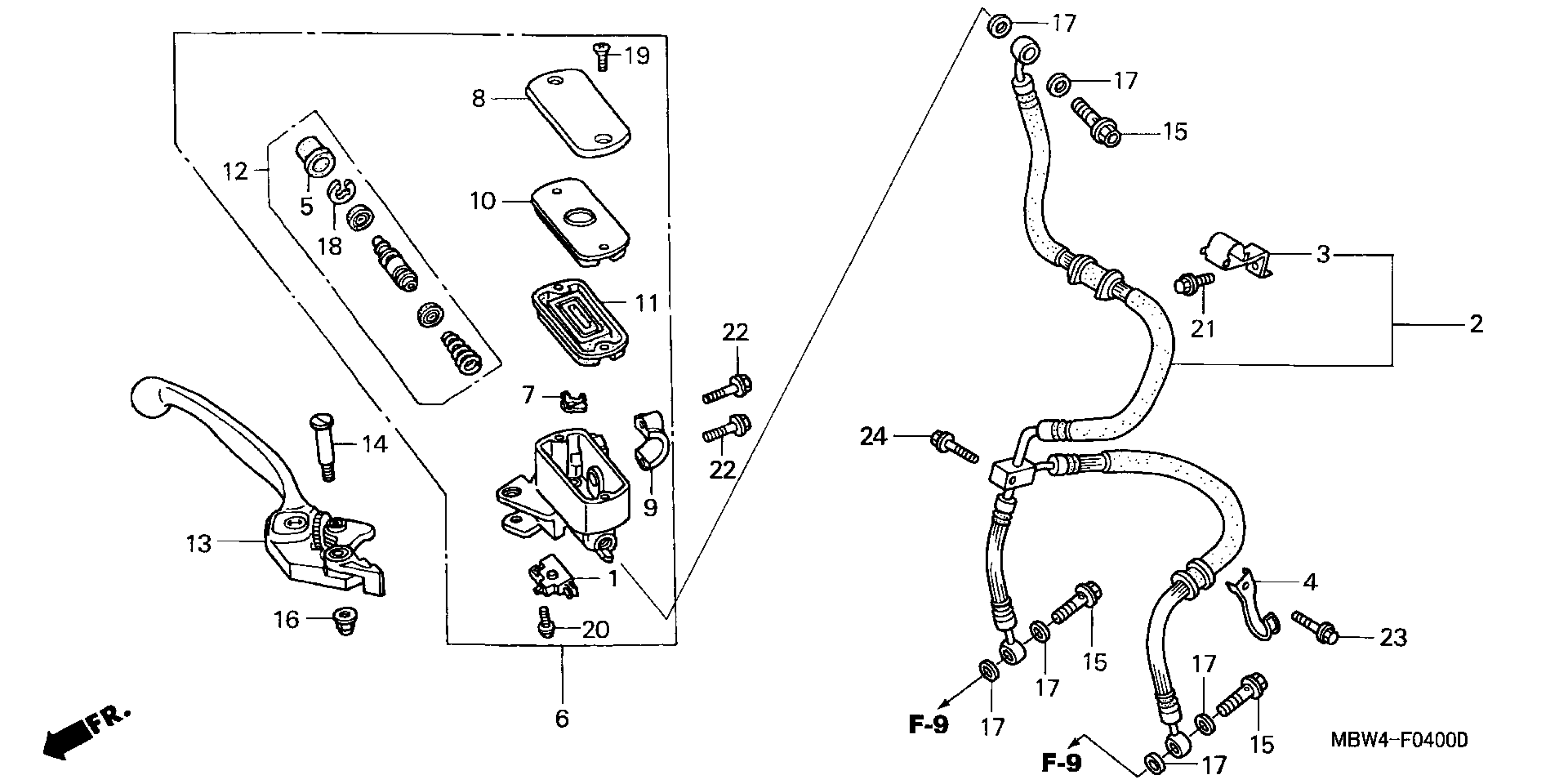

Honda CBR600F4A (00) CBR600F4I, JPN, VIN# JH2PC350-YM100001 TO JH2PC350-YM106777 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

2

HOSE, FR. BRAKE

45125-MBW-003

Unavailable

3

CLAMP A, BRAKE HOSE

45155-MBW-000

Unavailable

4

CLAMP B, BRAKE HOSE This part replaces 45156-MBW-000.

45156-MEE-010

Unavailable

5

BOOT

45504-410-003

$12.16

6

MASTER CYLINDER SUB-ASSY., FR. This part replaces 45510-MBW-006.

45510-MBW-016

Unavailable

6

MASTER CYLINDER SUB-ASSY., FR.

45510-MBW-016

Unavailable

7

PROTECTOR

45512-MA6-006

$4.28

8

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MM5-006.

45513-MM5-016

$22.41

8

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

9

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

10

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

11

DIAPHRAGM

45520-MM5-006

$15.12

12

MASTER CYLINDER SET

45530-MA5-671

$71.69

13

LEVER ASSY., R. HANDLE

53170-MBW-006

$43.60

14

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

15

BOLT, OIL (10X22)

90145-MS9-612

$7.54

16

NUT, CAP (6MM)

90201-415-000

$2.05

17

WASHER, OIL BOLT

90545-300-000

$3.99

18

CIRCLIP

90651-MA5-671

$2.66

19

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

19

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

20

SCREW-WASHER (4X12)

93893-04012-07

$1.49

20

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

21

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

21

BOLT, FLANGE (6X12) This part replaces 95801-06012-07.

95701-06012-07

$1.62

22

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

23

BOLT, FLANGE (6X28)

95801-06028-07

$1.87

24

BOLT, FLANGE (6X40)

95801-06040-07

$1.89
