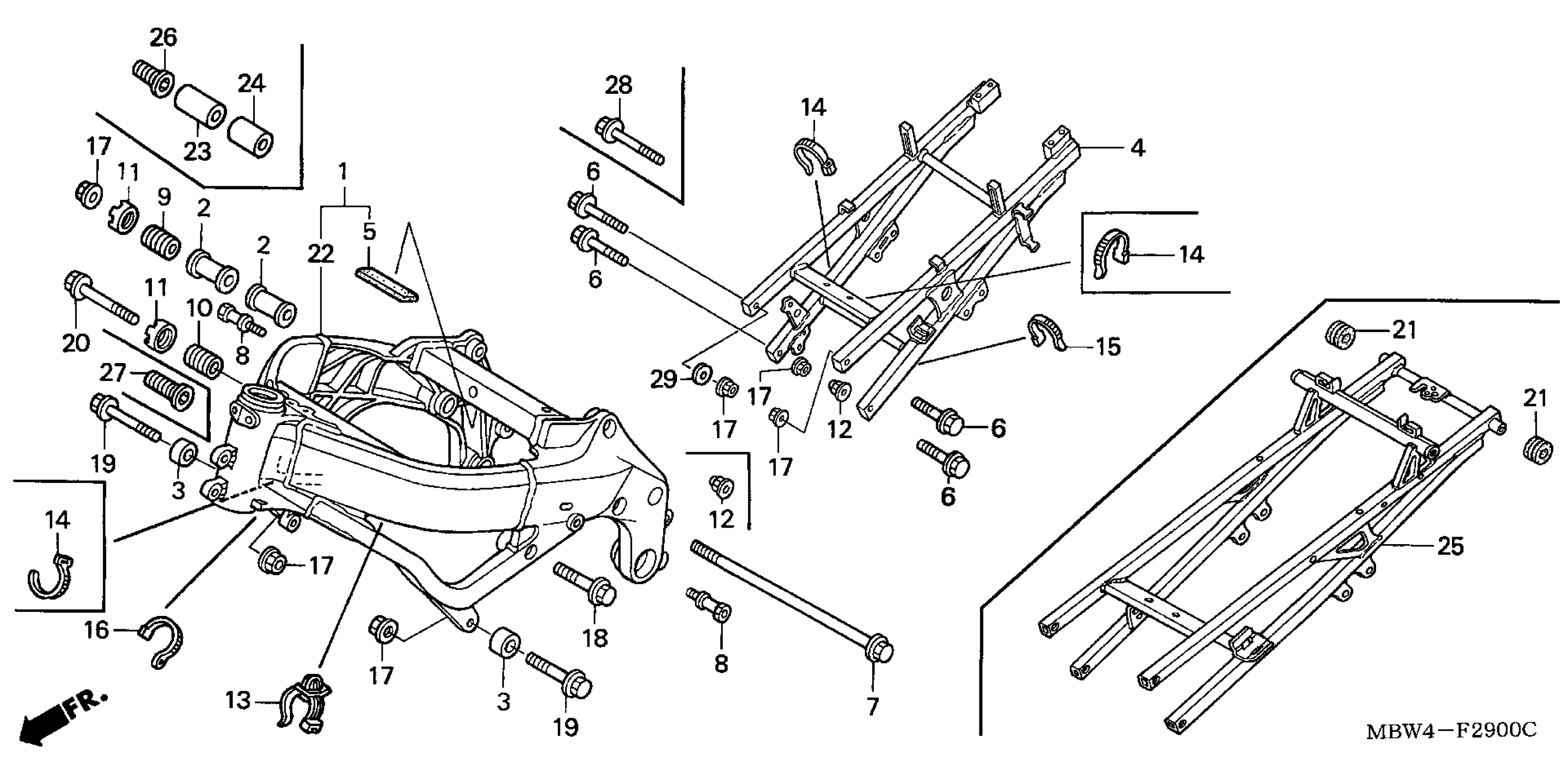

Honda CBR600F4A (00) CBR600F4I, JPN, VIN# JH2PC350-YM100001 TO JH2PC350-YM106777 FRAME ('99-'03) Diagram

FRAME

50100-MBW-000

Unavailable

COLLAR A, ENGINE HANGER

50190-MBW-000

Unavailable

COLLAR B, ENGINE HANGER

50191-MBW-000

Unavailable

RAIL, SEAT

50200-MBW-000

Unavailable

RUBBER, SEAT

50226-MY5-610

$4.44

BOLT, FLANGE (10X45)

90101-MBW-000

$3.89

BOLT, FLANGE (10X325)

90105-GBB-000

Unavailable

BOLT, SPECIAL (8MM)

90110-MBW-000

$10.62

COLLAR, ENGINE MOUNT ADJUSTING

90116-KAF-000

Unavailable

COLLAR, ENGINE MOUNT ADJUSTING

90116-MBW-000

Unavailable

NUT, LOCK (20MM)

90201-MW0-000

$10.87

NUT, CAP (10MM)

90209-MM8-000

$6.00

NUT, CAP (10MM) This part replaces 90308-MS9-000.

90209-MM8-000

$6.00

BAND, WIRE HARNESS (150MM) (NATURAL)

90649-SC2-003

$5.81

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

BAND, SUCTION HOSE (BLACK)

90679-SG9-E01

$3.73

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, FLANGE (10X50)

96400-10050-00

$2.08

BOLT, FLANGE (10X60)

96400-10060-00

$2.49

BOLT, FLANGE (10X65)

96400-10065-00

$2.90
