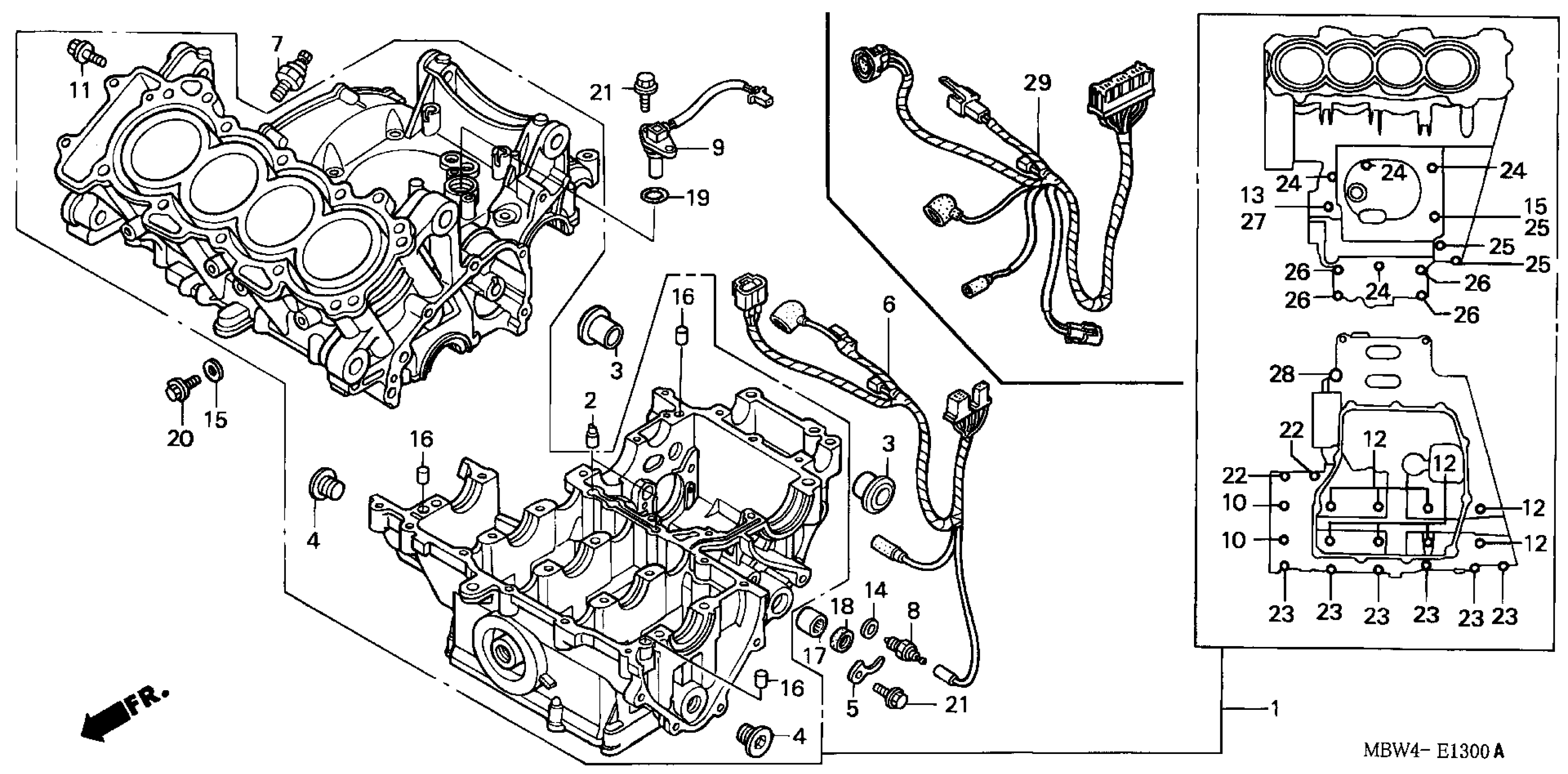

Honda CBR600F4A (00) CBR600F4I, JPN, VIN# JH2PC350-YM100001 TO JH2PC350-YM106777 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Use up to Engine SN 2126711 This part replaces 11000-MBW-000.

11000-MBW-010

Unavailable

1

CRANKCASE SET

11000-MBW-010

Unavailable

2

ORIFICE (1.2MM)

11104-MW0-000

Unavailable

3

COLLAR, ENGINE HANGER

11105-MBW-300

Unavailable

4

BOLT, SEALING (20MM)

12208-PR3-000

$8.30

5

PLATE, SPINDLE

24612-MAL-600

$8.88

6

SUB-WIRE A

32101-MBW-610

Unavailable

7

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.10

8

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$16.98

9

SENSOR ASSY., SPEEDOMETER

37700-MBW-611

Unavailable

10

BOLT, UBS (8X100)

90004-MAL-A00

$7.12

11

BOLT, SEALING (8MM)

90019-MAT-000

$6.14

12

BOLT, UBS (8X75)

90041-MAL-A00

$6.78

13

WASHER, SEALING (8MM)

90442-028-000

$1.61

14

WASHER, NEUTRAL

90443-MJ6-000

$1.75

15

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

16

PIN, DOWEL (10X16)

90701-MV9-670

$4.00

17

BEARING, NEEDLE (14X22X16)

91106-KM1-013

$17.42

18

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.55

19

O-RING (18.1X3.6)

91302-MAL-601

$3.28

20

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

21

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

22

BOLT, FLANGE (6X35)

95701-06035-00

$1.71

23

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

24

BOLT, FLANGE (6X50)

95701-06050-00

$1.97

25

BOLT, FLANGE (6X65)

95701-06065-00

$1.38

26

BOLT, FLANGE (8X50)

95701-08050-00

$2.23

27

BOLT, FLANGE (8X65)

95701-08065-00

$1.57

28

BOLT, FLANGE (10X75)

95701-10075-00

$2.22
