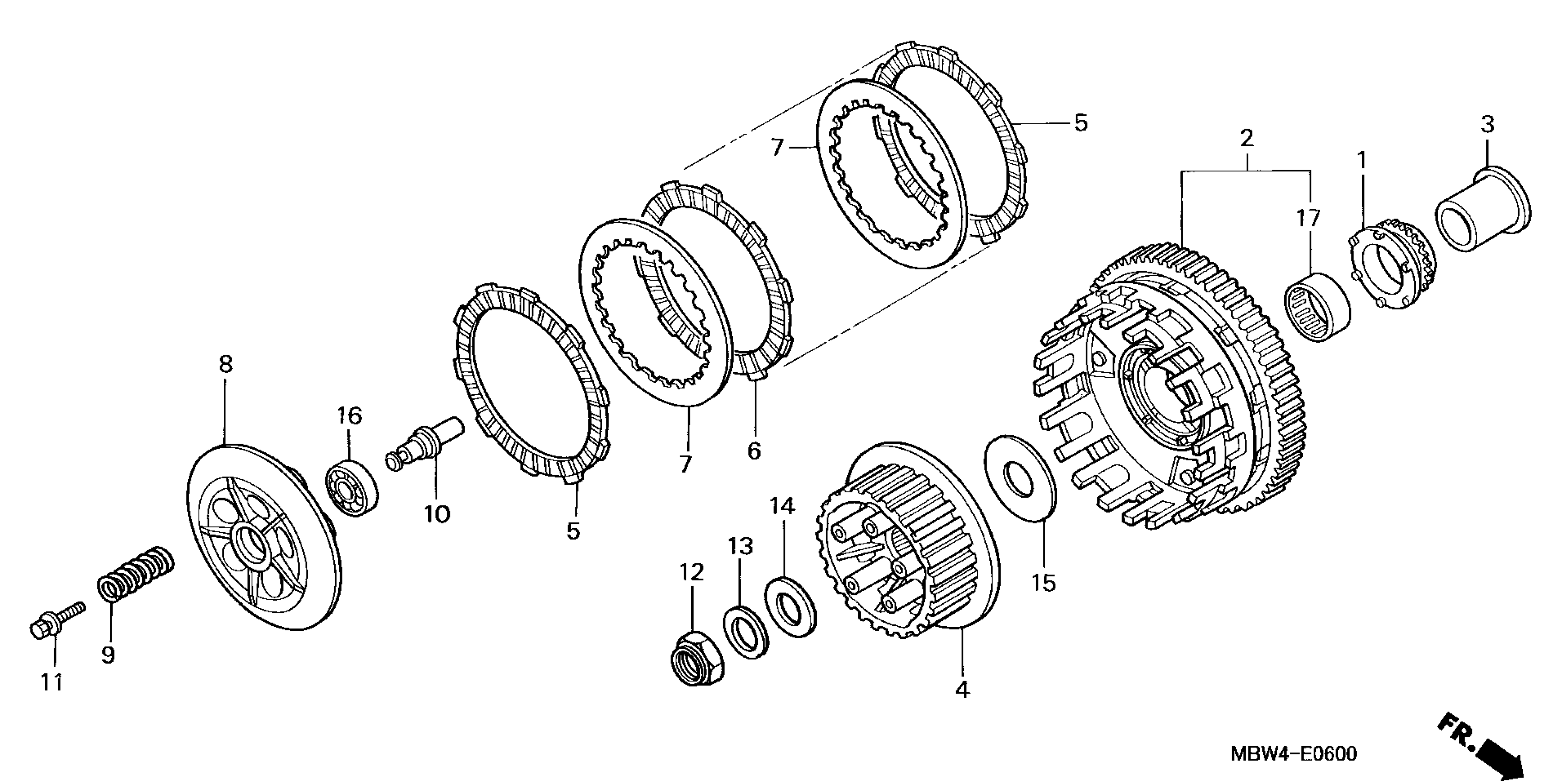

Honda CBR600F4A (00) CBR600F4I, JPN, VIN# JH2PC350-YM100001 TO JH2PC350-YM106777 CLUTCH ('99-'00) Diagram

SPROCKET, OIL PUMP DRIVE (25T)

15131-MAS-003

Unavailable

CLUTCH (OUTER)

22100-MBW-000

Unavailable

GUIDE, CLUTCH (OUTER)

22116-MBW-000

Unavailable

CENTER, CLUTCH

22120-MBW-J20

Unavailable

CENTER, CLUTCH This part replaces 22120-MBW-000.

22120-MBW-J20

Unavailable

DISK, CLUTCH FRICTION

22201-MAL-600

Unavailable

DISK, CLUTCH FRICTION

22201-MAS-E00

$11.69

PLATE, CLUTCH

22321-ML7-000

$12.58

PLATE, CLUTCH

22321-MR7-000

$14.96

PLATE, CLUTCH PRESSURE

22350-MBW-000

Unavailable

SPRING, CLUTCH

22401-MBW-000

$4.58

PIN, CLUTCH LIFTER

22847-MBW-000

Unavailable

BOLT-WASHER (6X28)

90024-MAS-000

$3.48

NUT, LOCK (22MM)

90231-MM5-000

$9.38

WASHER, SPRING (22MM)

90432-MM5-000

$7.66

WASHER, THRUST (22X39X2)

90451-KG4-000

$4.28

WASHER (60X25X2)

90459-MM4-000

$9.63

BEARING, RADIAL BALL (16003)

91009-MAS-003

$20.39

BEARING, NEEDLE (35X42X23)

91026-MV9-671

$81.87
