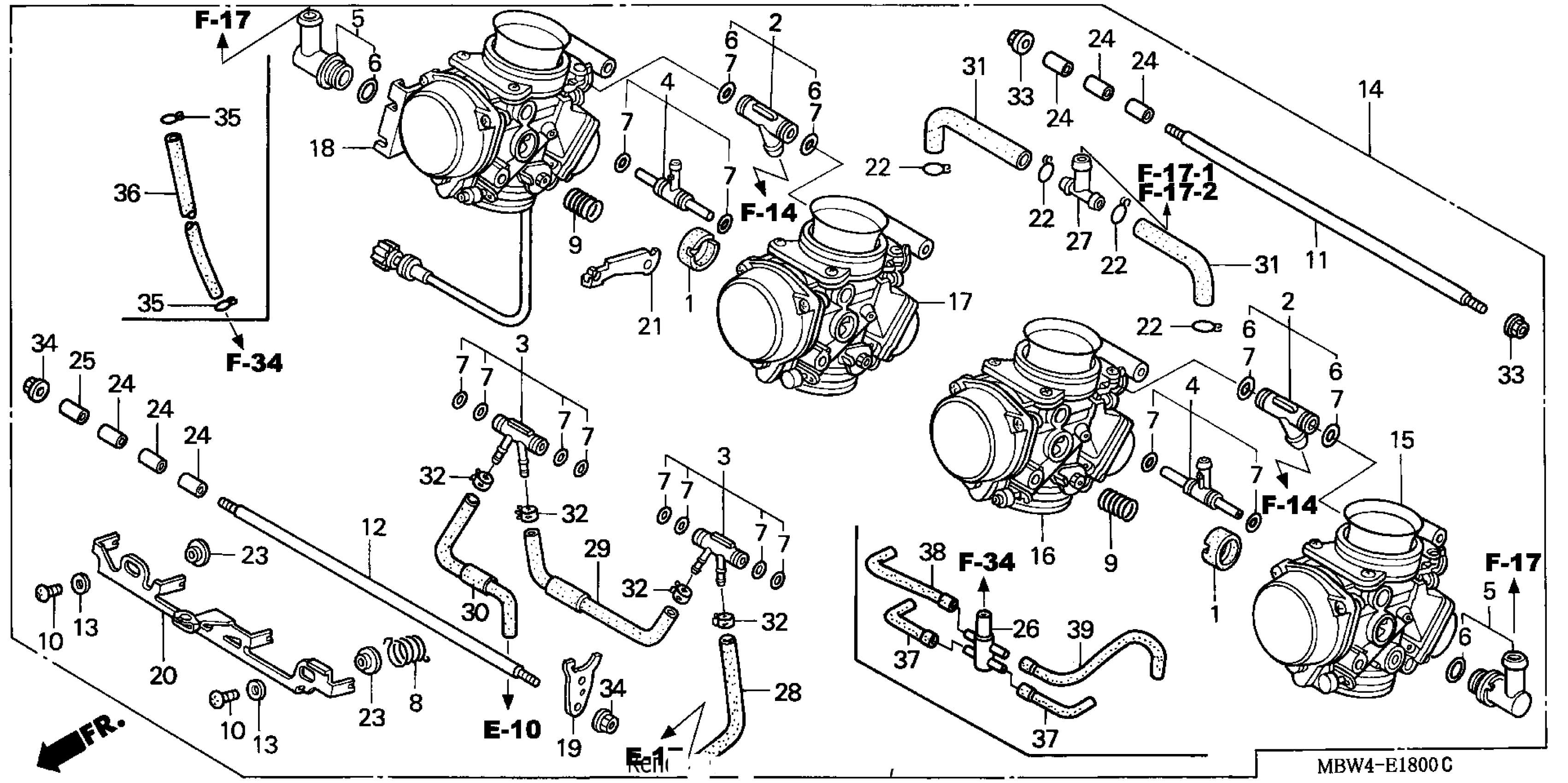

Honda CBR600F4A (00) CBR600F4I, JPN, VIN# JH2PC350-YM100001 TO JH2PC350-YM106777 CARBURETOR ASSY. Diagram

#

Description
Price

1

JOINT

16024-MBW-601

Unavailable

2

JOINT SET

16024-MZ2-E00

$31.15

3

JOINT SET

16026-MAL-600

Unavailable

4

JOINT SET This part replaces 16026-MW0-600.

16026-MZ2-E00

$38.48

4

JOINT SET

16026-MZ2-E00

$38.48

5

JOINT SET

16027-MBW-601

Unavailable

6

GASKET SET B This part replaces 16039-MZ1-790.

16040-MZ1-790

$12.84

6

GASKET SET B

16040-MZ1-790

$12.84

7

GASKET SET

16040-MAL-600

$21.95

8

SPRING, TORSION COIL

16051-MZ2-610

Unavailable

9

SPRING, COMPRESSION COIL

16053-MA6-003

$9.07

10

SCREW, TRUSS (4X8)

16081-KAZ-000

$3.10

11

BOLT

16083-MAT-000

Unavailable

12

BOLT

16084-MBW-601

Unavailable

13

WASHER, PLAIN

16085-MV4-000

$2.92

14

CARBURETOR (VP64E A) This part replaces 16100-MBW-671.

16100-MBW-732

Unavailable

15

CARBURETOR ASSY. 1

16101-MBW-671

Unavailable

16

CARBURETOR ASSY. 2

16102-MBW-671

Unavailable

17

CARBURETOR ASSY. 3

16103-MBW-671

Unavailable

18

CARBURETOR ASSY. 4

16104-MBW-671

Unavailable

19

PLATE, STAY

16119-MBW-601

Unavailable

20

LEVER, STARTER

16120-MBW-601

Unavailable

21

PLATE, STAY

16121-MBW-601

Unavailable

22

CLIP, TUBE

16163-GHB-610

$1.73

23

COLLAR

16175-MZ1-000

$13.66

24

PIN, DOWEL (7.9X20)

16178-MAS-600

$8.39

24

PIN, DOWEL (7.9X20) This part replaces 16178-MV4-000.

16178-MAS-600

$8.39

25

PIN, DOWEL

16178-MZ0-000

Unavailable

27

T-JOINT

16181-MBW-601

Unavailable

28

HOSE, HEATER

16191-MBW-601

Unavailable

29

HOSE, HEATER

16192-MBW-601

Unavailable

30

HOSE, HEATER

16193-MBW-602

Unavailable

31

TUBE

16195-MBW-601

Unavailable

32

CLAMP, FUEL HOSE (D10.5)

91406-SL4-931

$4.88

33

NUT, FLANGE (5MM)

94050-05000

$1.49

34

NUT, FLANGE (6MM)

94050-06000

$1.49
