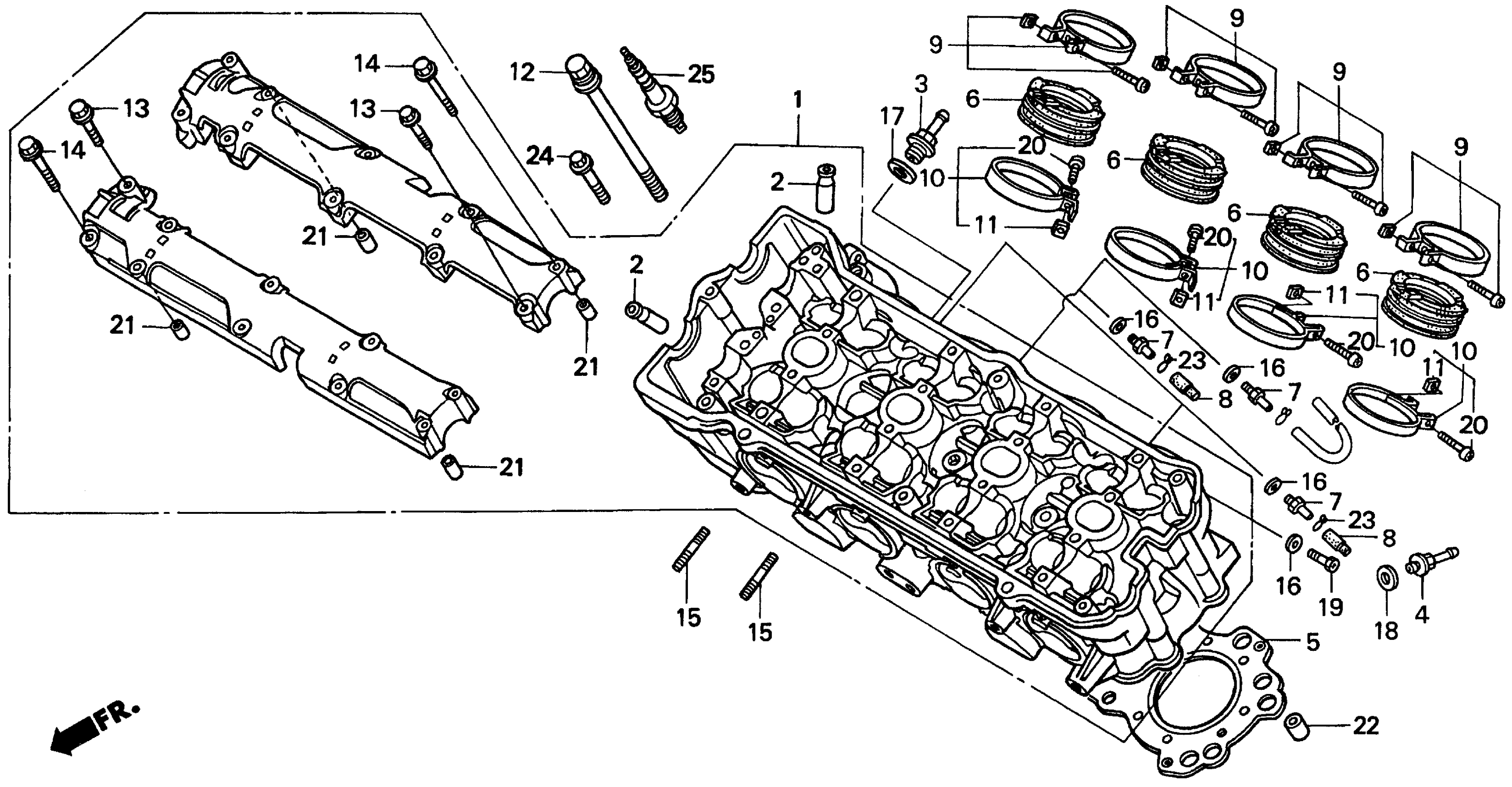

Honda CBR600F3AC (97) MOTORCYCLE, JPN, VIN# JH2PC251-VM600001 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MAL-A80

Unavailable

GUIDE, VALVE (OVER SIZE)

12204-MV9-315

$21.39

JOINT, HOSE | Use up to Engine SN 2607470 This part replaces 12207-MAS-000.

12207-MAS-010

Unavailable

JOINT, HOSE

12207-MAS-010

Unavailable

JOINT, HOSE

12207-MV9-670

Unavailable

GASKET, CYLINDER HEAD

12251-MAL-601

$97.21

INSULATOR, CARBURETOR

16211-MAL-A00

$15.56

JOINT, BOOST

16214-MB0-000

$4.76

CAP, BOOST

16215-MV4-000

$2.78

BAND, INSULATOR

16218-MAL-A00

$7.98

BAND B, INSULATOR

16218-MV9-670

$11.02

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

BOLT-WASHER (9X95)

90007-MAL-A00

$8.07

BOLT, FLANGE (6X37)

90016-KT7-000

$2.92

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

BOLT, STUD (8X24)

90035-MM5-000

$5.12

WASHER, SEALING (5MM)

90452-323-000

$1.59

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

WASHER, OIL BOLT

90545-MJ1-770

$2.95

BOLT, RECESSED (5X8)

92301-05008-0A

$1.49

SCREW, PAN (5X28)

93500-05028-0G

$1.49

PIN, DOWEL (8X20)

94301-08200

$2.25

PIN, DOWEL (10X16)

94301-10160

$2.28

CLIP, TUBE (B7)

95002-02070

$1.80

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$8.09

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$8.09

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$8.09
