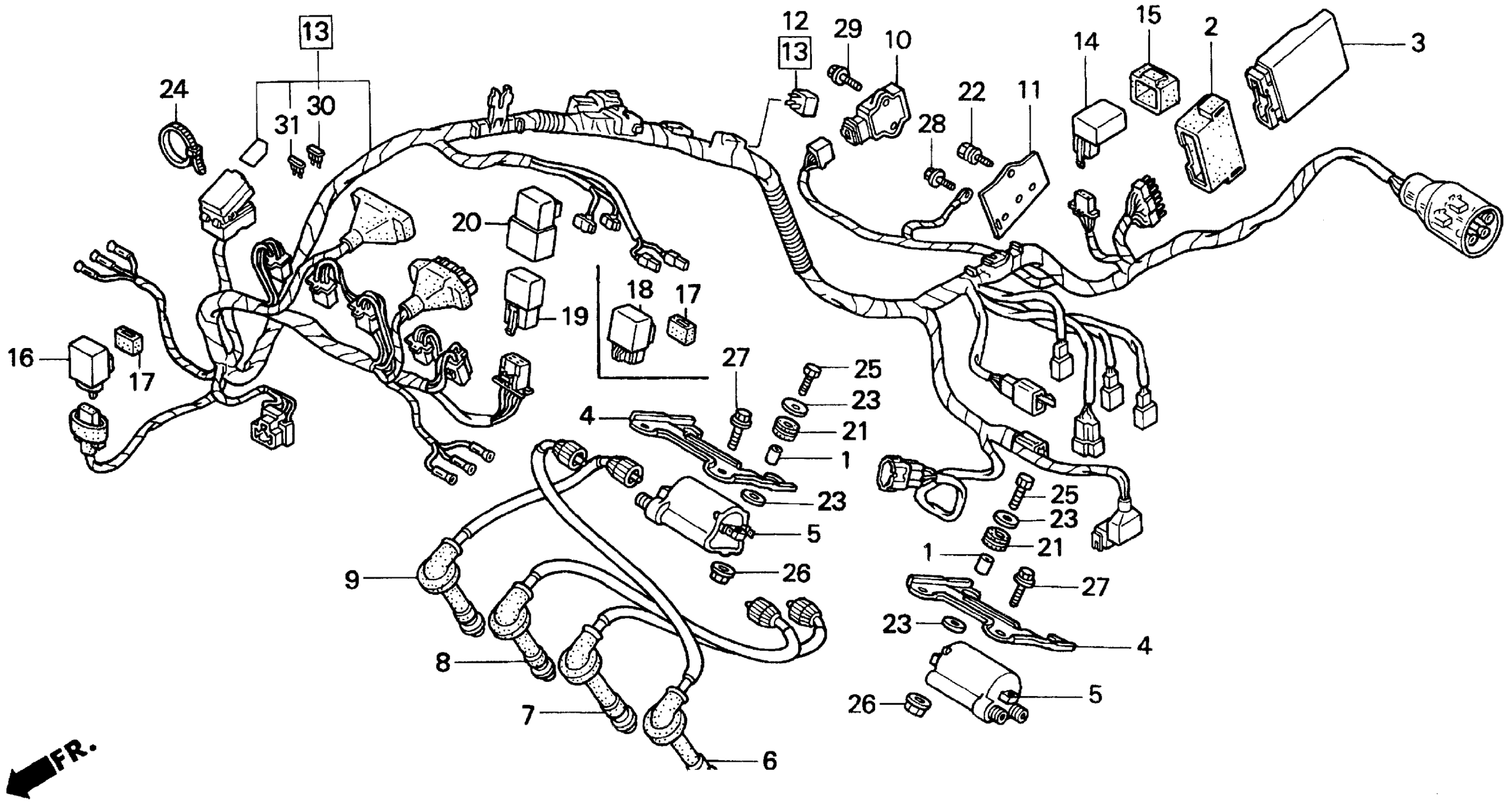

Honda CBR600F3A (98) MOTORCYCLE, JPN, VIN# JH2PC250-WM700001 WIRE HARNESS Diagram

COLLAR, CONNECTING TUBE SETTING

17221-KA4-300

$2.43

CUSHION, SPARK UNIT

30405-MT6-000

Unavailable

MODULE, IGNITION CONTROL (CDI)

30410-MAL-A01

Unavailable

STAY, IGNITION COIL

30507-MV9-000

Unavailable

COIL, IGNITION

30510-KT7-023

$142.15

CAP ASSY. 1, IGNITION

30751-MV9-000

Unavailable

CAP ASSY. 2, IGNITION

30752-MV9-000

Unavailable

CAP ASSY. 3, IGNITION

30753-MV9-000

Unavailable

CAP ASSY. 4, IGNITION

30754-MV9-000

Unavailable

RECTIFIER ASSY., REGULATE This part replaces 31600-MV4-000.

31600-MV4-010

$278.54

RECTIFIER ASSY., REGULATE (SHINDENGEN)

31600-MV4-010

$278.54

SPACER, REGULATOR RECTIFIER

31605-MV9-000

Unavailable

RECTIFIER, SILICON

31700-196-000

$26.42

WIRE HARNESS (NOT AVAILABLE)

32100-MAL-890

Unavailable

RELAY, FUEL CUT (SHINDENGEN)

36100-MN4-008

$95.46

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

RELAY (10A)

38365-MN5-811

$33.44

RUBBER A, SIDE SHELTER

64121-KV0-000

Unavailable

BOLT, HELMET HOLDER SETTING

90107-449-000

$3.35

WASHER (6MM)

90485-286-000

$1.55

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

FUSE, BLADE (10A)

98200-31000

$1.49

FUSE, BLADE (15A)

98200-31500

$1.49
