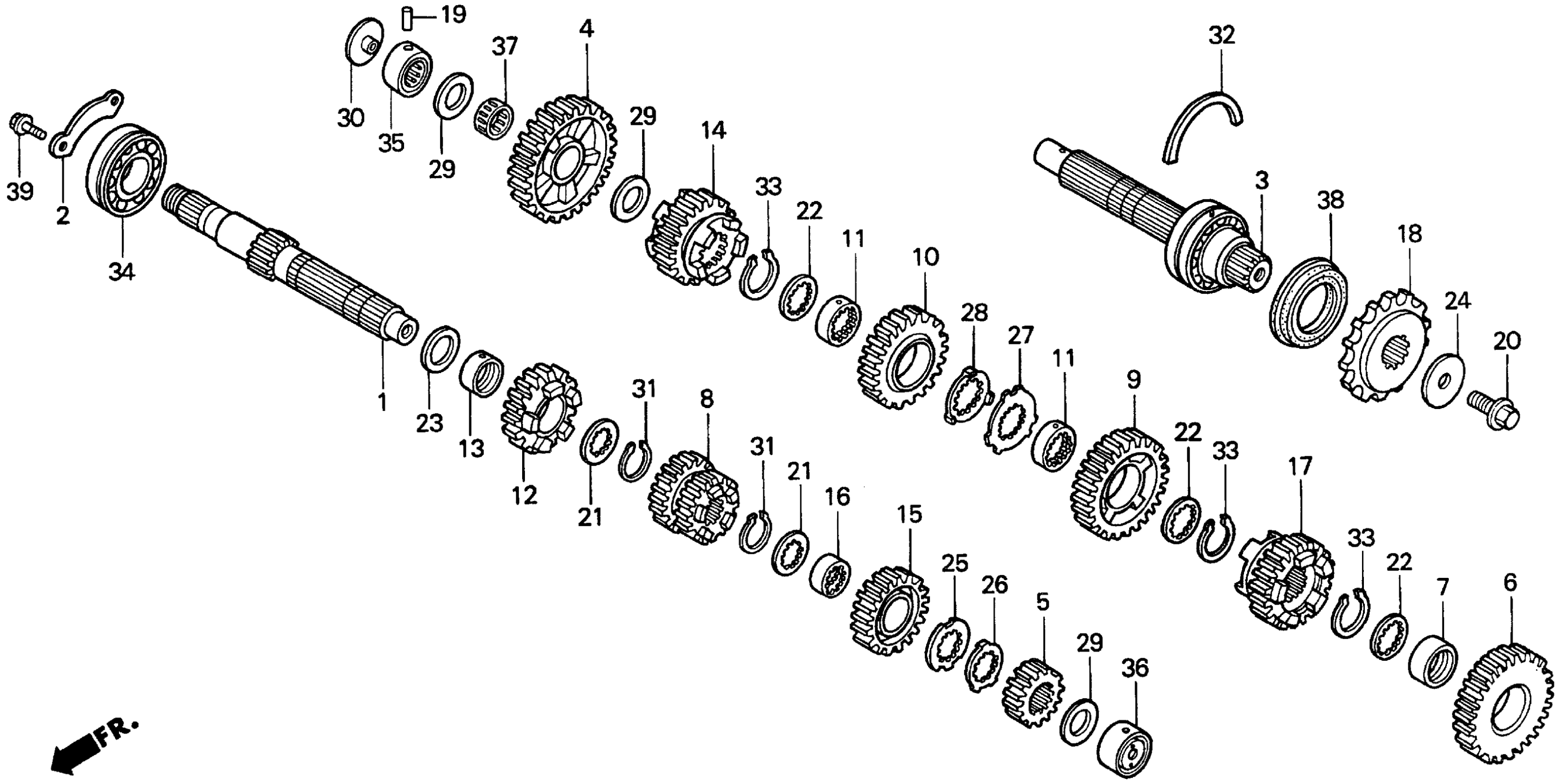

Honda CBR600F3A (98) MOTORCYCLE, JPN, VIN# JH2PC250-WM700001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT

23211-MAL-A00

$140.55

2

PLATE, BEARING SETTING

23212-MV9-670

$10.33

3

COUNTERSHAFT

23220-MAL-A00

Unavailable

4

GEAR, COUNTERSHAFT LOW (41T)

23421-MV9-670

$147.38

5

GEAR, MAINSHAFT SECOND (16T)

23431-MV9-670

Unavailable

6

GEAR, COUNTERSHAFT SECOND (33T)

23441-MAL-600

$127.14

7

COLLAR (28MM)

23442-MM4-000

$19.99

8

GEAR, MAINSHAFT THIRD & FOURTH (17T/19T)

23451-MAL-A00

Unavailable

9

GEAR, COUNTERSHAFT THIRD (28T)

23461-MAL-600

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (26T)

23481-MAL-600

Unavailable

11

COLLAR, SPLINE (28X31X9)

23482-MV9-670

$17.46

12

GEAR, MAINSHAFT FIFTH (20T)

23491-MAL-600

Unavailable

13

COLLAR (25X14)

23496-MM4-000

$18.74

14

GEAR, COUNTERSHAFT FIFTH (24T)

23501-MAL-600

Unavailable

15

GEAR, MAINSHAFT SIXTH (23T)

23511-MAL-600

Unavailable

16

COLLAR, SPLINE (25X28X13)

23512-MV9-670

$24.70

17

GEAR, COUNTERSHAFT SIXTH (25T)

23521-MAL-600

Unavailable

18

SPROCKET, DRIVE (15T)

23801-MV9-900

Unavailable

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$3.92

20

BOLT, SPECIAL (10MM)

90037-422-003

$6.82

21

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.55

22

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$5.77

23

WASHER, THRUST (25MM)

90456-MA6-000

$2.42

24

WASHER (10.2MM)

90459-438-000

$5.43

25

WASHER, SPLINE (25MM)

90461-KY2-000

$4.87

26

WASHER, LOCK (25MM)

90462-KAZ-000

$8.48

27

WASHER, SPLINE (28MM)

90463-MR7-000

$9.62

28

WASHER, LOCK (28MM)

90464-MR7-000

$9.62

29

WASHER, THRUST (20X0.9)

90469-ME5-000

$4.38

30

PLATE, ORIFICE

90559-MM4-000

$4.43

31

CIRCLIP (25MM)

90601-107-000

$3.49

32

SET-RING (62MM)

90602-ML7-000

$7.66

33

CIRCLIP (28MM) This part replaces 90602-MM5-000.

90603-MN4-000

$3.49

33

CIRCLIP (28MM)

90603-MN4-000

$3.49

34

BEARING, BALL (6305) (TOYO)

91004-657-008

$50.00

35

BEARING, NEEDLE (20X34X16.8) (NTN) This part replaces 91023-MM4-003.

91023-MKP-D01

$30.41

36

BEARING, NEEDLE (20MM) (NTN) This part replaces 91025-MV9-671.

91025-MW0-003

Unavailable

36

BEARING, NEEDLE (20MM) (NTN)

91025-MW0-003

Unavailable

37

BEARING, NEEDLE (20X24X10)

91102-MM4-003

Unavailable

38

OIL SEAL (40X62X8.4)

91207-MAL-601

$12.12

39

BOLT, FLANGE (6X14)

95701-06014-00

$0.91
