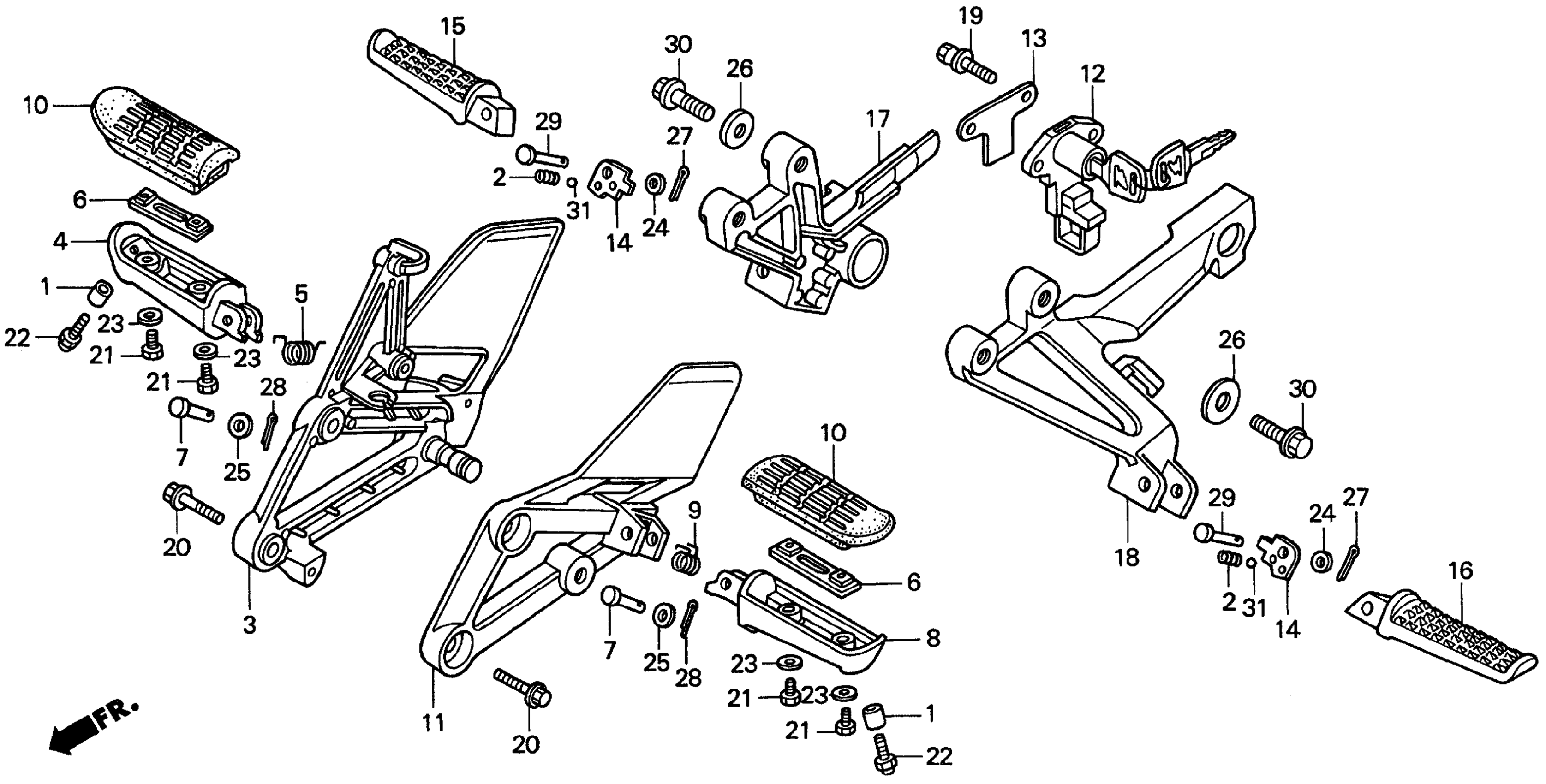

Honda CBR600F3A (98) MOTORCYCLE, JPN, VIN# JH2PC250-WM700001 STEP Diagram

#

Description
Price

1

COLLAR, FUEL TANK

17503-397-630

Unavailable

2

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

3

HOLDER, R. STEP

50600-MV9-000

$112.71

4

ARM, R. STEP (COO)

50612-KYJ-305

$23.78

4

ARM, R. STEP (COO) This part replaces 50612-MM5-000.

50612-KYJ-305

$23.78

5

SPRING, R. STEP RETURN

50617-445-840

$5.20

6

PLATE, STEP SETTING

50619-MM5-000

$7.56

7

PIN, STEP BAR

50639-ML0-010

$4.84

8

ARM, L. STEP (COO)

50642-KYJ-305

$23.78

8

ARM, L. STEP (COO) This part replaces 50642-MM5-000.

50642-KYJ-305

$23.78

9

SPRING, L. STEP RETURN

50644-445-840

$5.20

10

RUBBER, STEP

50661-MV9-000

$13.17

11

HOLDER, L. STEP

50700-MAL-600

Unavailable

12

HOLDER ASSY., HELMET

50710-MF5-000

$61.01

13

PLATE, BACK

50711-MV9-930

Unavailable

14

PLATE, PILLION STEP CLICK

50718-KT7-761

$3.83

15

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-760.

50720-K26-305

$41.27

15

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-761.

50720-K26-305

$41.27

15

BAR, R. PILLION STEP (COO)

50720-K26-305

$41.27

16

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-760.

50730-K26-305

$41.27

16

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-761.

50730-K26-305

$41.27

16

BAR, L. PILLION STEP (COO)

50730-K26-305

$41.27

17

HOLDER, R. PILLION STEP

50750-MV9-930

Unavailable

18

HOLDER, L. PILLION STEP

50760-MV9-930

Unavailable

19

BOLT, BREAK OFF (6MM)

90008-MZ7-000

$7.43

20

BOLT, FLANGE (8X25) This part replaces 90107-KT8-000.

90107-MZ5-000

$4.44

20

BOLT, FLANGE (8X25)

90107-MZ5-000

$4.44

21

BOLT, MAIN STEP RUBBER SETTING

90115-MV9-000

$3.52

22

BOLT, CAP (8X25)

92501-08025-0A

$3.63

23

WASHER, PLAIN (5MM)

94101-05000

$0.91

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

24

WASHER, PLAIN (6MM)

94101-06800

Unavailable

25

WASHER, PLAIN (8MM)

94102-08000

$0.87

26

WASHER, PLAIN (8MM)

94103-08000

$0.60

27

PIN, SPLIT (1.6X12)

94201-16120

$1.04

28

PIN, SPLIT (2.0X15)

94201-20150

$1.04

29

PIN C, PILLION STEP

95015-83000

$2.22

30

BOLT, FLANGE (8X25)

95701-08025-00

$1.65

31

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
