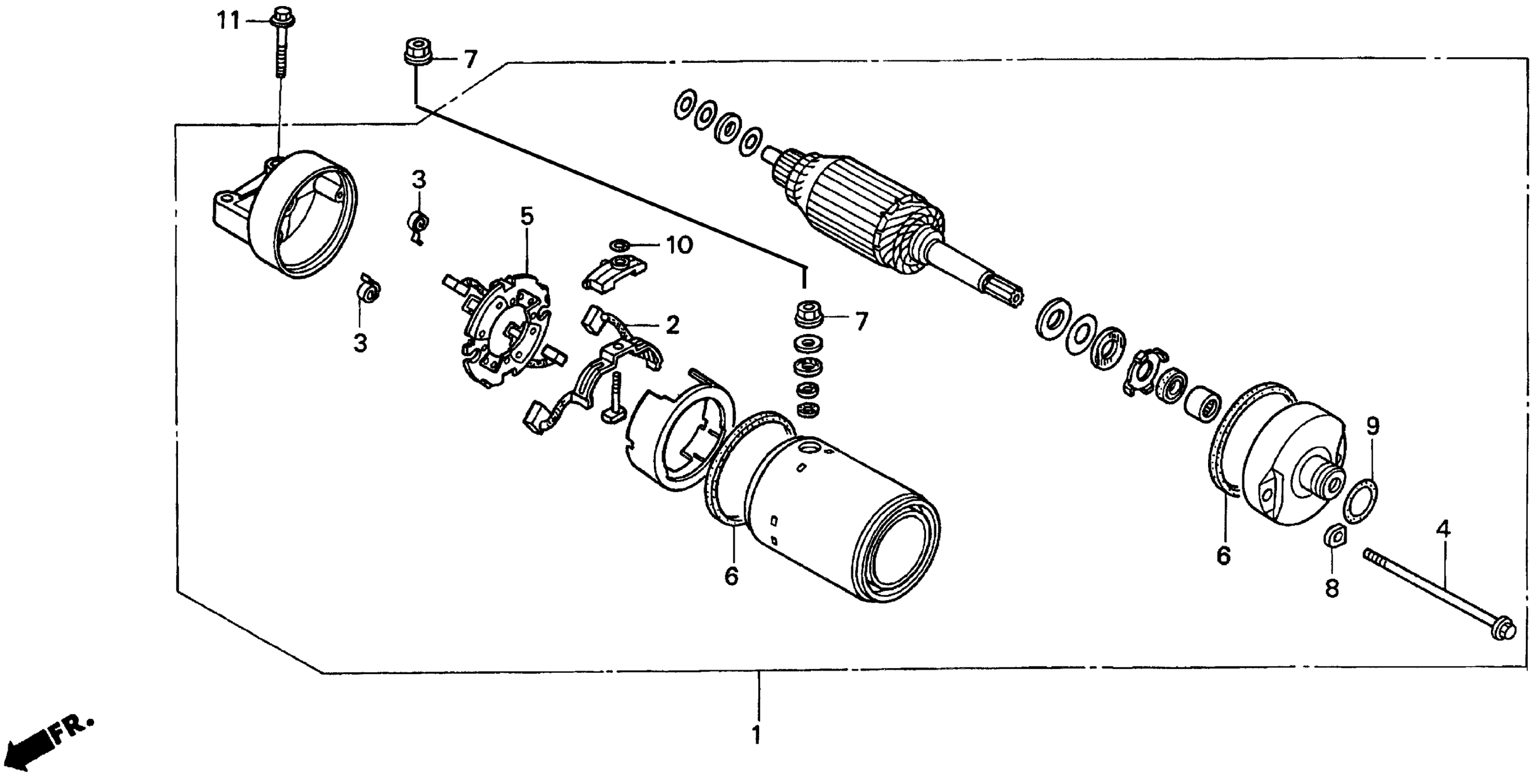

Honda CBR600F3A (98) MOTORCYCLE, JPN, VIN# JH2PC250-WM700001 STARTER MOTOR Diagram

STARTER MOTOR ASSY.

31200-MAL-E01

Unavailable

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.19

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

HOLDER SET, BRUSH

31206-MN4-008

$20.95

RING

31207-KS5-901

$2.90

NUT-WASHER (6MM)

90071-MB0-000

$1.88

WASHER, STEEL PLATE

90122-MN4-008

$2.80

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING (4X2)

91320-MB0-000

$2.20

BOLT, FLANGE (6X28)

95701-06028-00

$1.65
