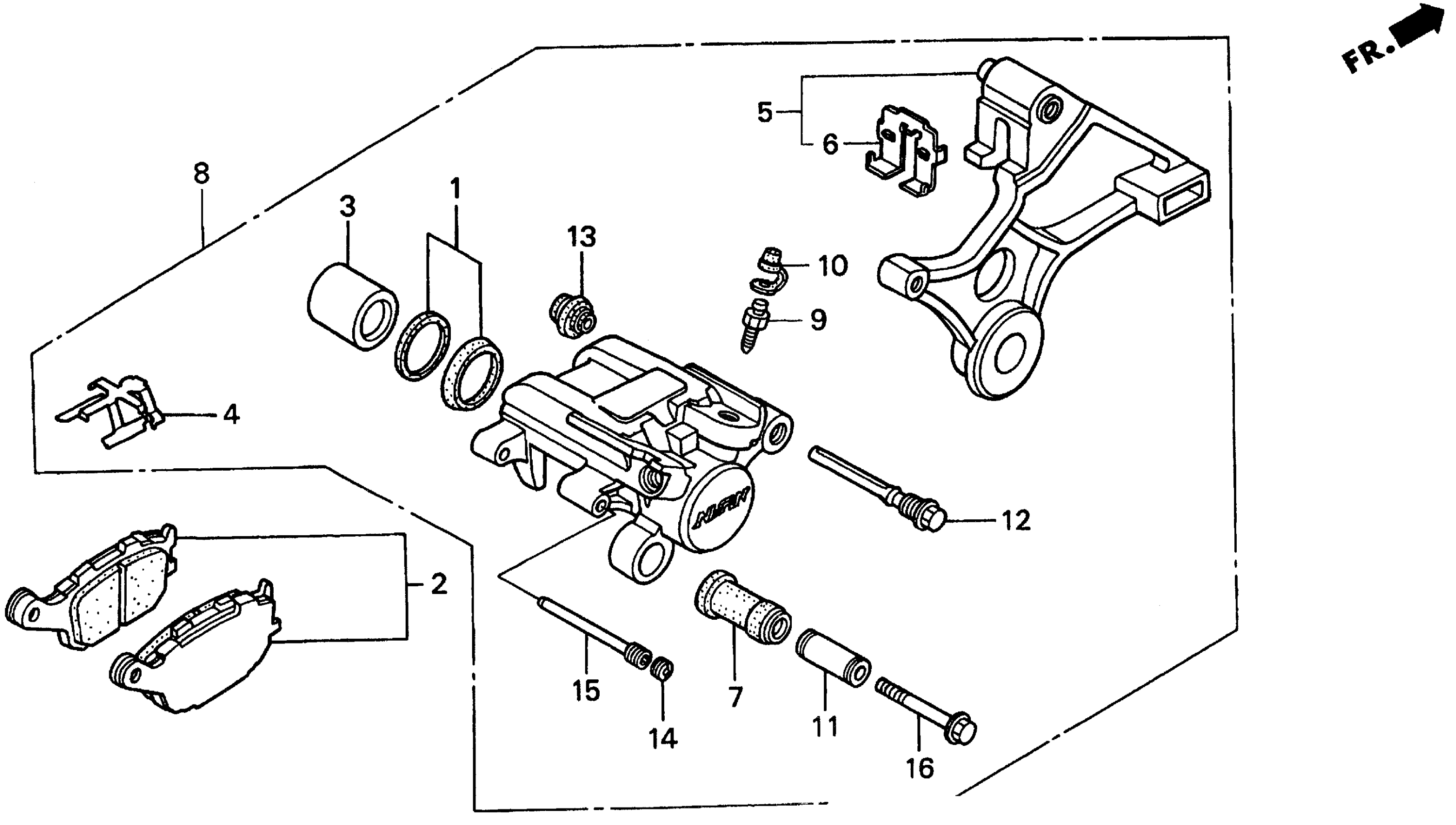

Honda CBR600F3A (98) MOTORCYCLE, JPN, VIN# JH2PC250-WM700001 REAR BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-443-405

$12.15

PAD SET, RR. This part replaces 43105-MW0-405.

43105-MW0-425

$47.63

PAD SET, RR. This part replaces 43105-MW0-415.

43105-MW0-425

$47.63

PISTON

43107-KT7-761

$34.77

SPRING, PAD

43108-KT7-761

$7.99

BRACKET, RR. (NISSIN)

43110-MV9-006

Unavailable

RETAINER

43112-MV9-016

$9.79

BOOT, SLEEVE

43132-KT7-761

$7.85

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MV9-305

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

SLEEVE

45111-MA3-006

$12.28

BOLT, PIN

45131-MN9-006

$14.66

BOOT B

45133-MA3-006

$5.21

PLUG, PIN

45203-MG3-016

$4.88

PIN, HANGER

45215-ML7-922

$9.79

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$5.80

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80
