Description

Price

1

PEDAL, GEARSHIFT

24705-MAL-E00

Unavailable

2

RUBBER, DUST SEAL

24706-MK3-770

$4.48

3

ARM, GEARSHIFT This part replaces 24710-MAL-600.

24710-MBZ-610

Unavailable

3

ARM, GEARSHIFT

24710-MBZ-610

Unavailable

4

COVER, DUST

24724-422-000

$6.68

5

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

6

SWITCH ASSY., RR. STOP

35350-KA2-405

$16.22

6

SWITCH ASSY., RR. STOP This part replaces 35350-MV9-000.

35350-KA2-405

$16.22

7

SPRING, STOP SWITCH

35357-KE1-000

$6.16

8

PEDAL, RR. BRAKE

46500-MAL-600

Unavailable

9

SPRING ASSY., BRAKE PEDAL

46515-MV9-000

$5.16

10

WASHER, BUSH

53312-657-000

$6.70

11

BOLT, FLANGE (6X20)

90014-MN5-000

$5.43

12

BOLT, TIE ROD

90065-MAL-600

Unavailable

13

BOLT, CHANGE PIVOT

90115-MAL-600

$14.82

14

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

15

WASHER (8MM)

90514-921-000

$1.49

16

CLIP, SWITCH COVER

90601-KAF-003

$2.67

17

NUT, HEX. (6MM)

94002-06020-0S

$1.49

18

CIRCLIP, OUTER (15MM)

94511-15000

$1.49

19

BULK HOSE, VINYL (13X15X8000) (13X15X20)

95003-43008-10M

$60.69

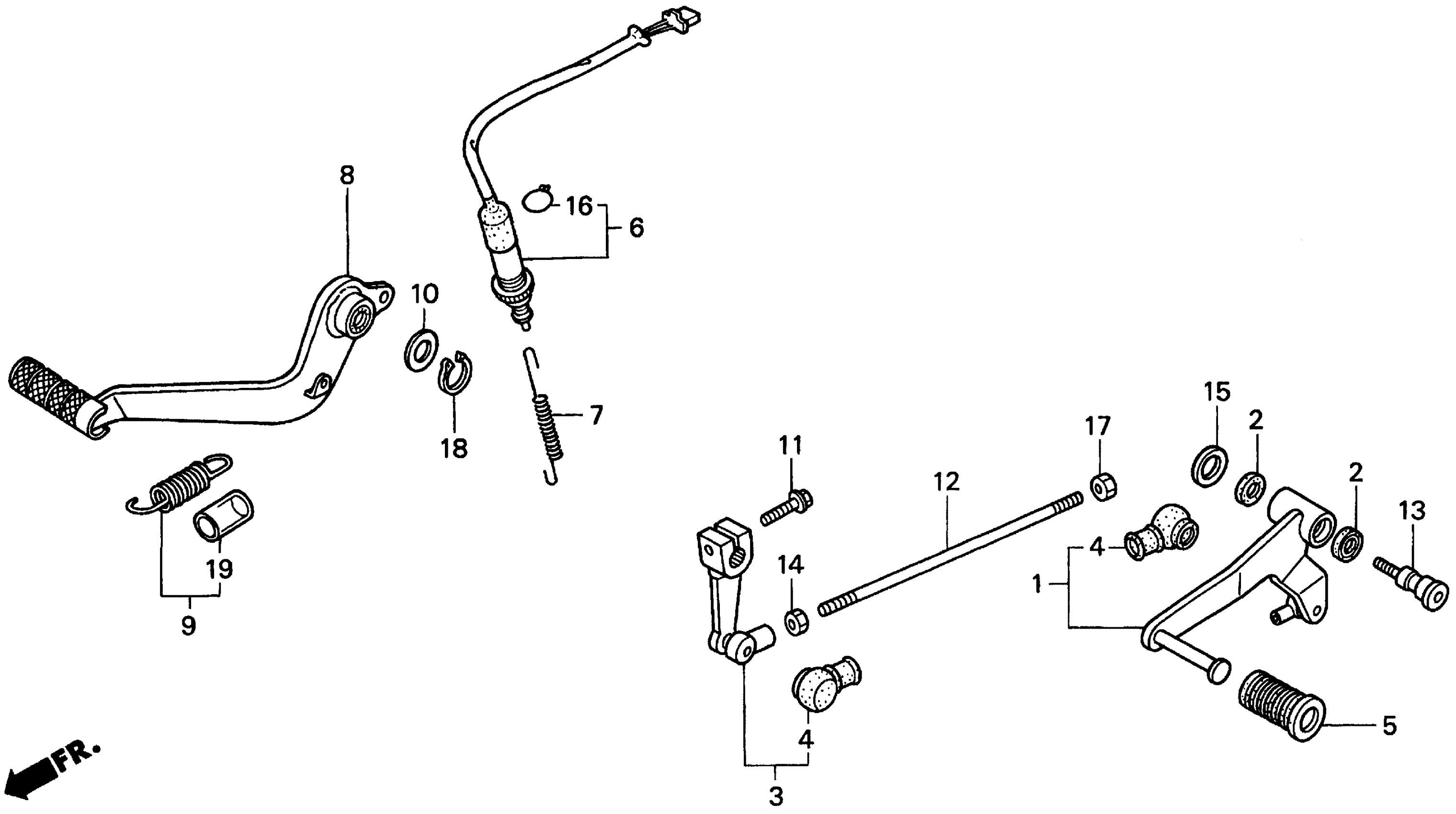

Honda CBR600F3A (98) MOTORCYCLE, JPN, VIN# JH2PC250-WM700001 PEDAL Diagram

PEDAL, GEARSHIFT

RUBBER, DUST SEAL

ARM, GEARSHIFT This part replaces 24710-MAL-600.

ARM, GEARSHIFT

COVER, DUST

RUBBER, GEARSHIFT PEDAL

SWITCH ASSY., RR. STOP

SWITCH ASSY., RR. STOP This part replaces 35350-MV9-000.

SPRING, STOP SWITCH

PEDAL, RR. BRAKE

SPRING ASSY., BRAKE PEDAL

WASHER, BUSH

BOLT, FLANGE (6X20)

BOLT, TIE ROD

BOLT, CHANGE PIVOT

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

WASHER (8MM)

CLIP, SWITCH COVER

NUT, HEX. (6MM)

CIRCLIP, OUTER (15MM)

BULK HOSE, VINYL (13X15X8000) (13X15X20)
