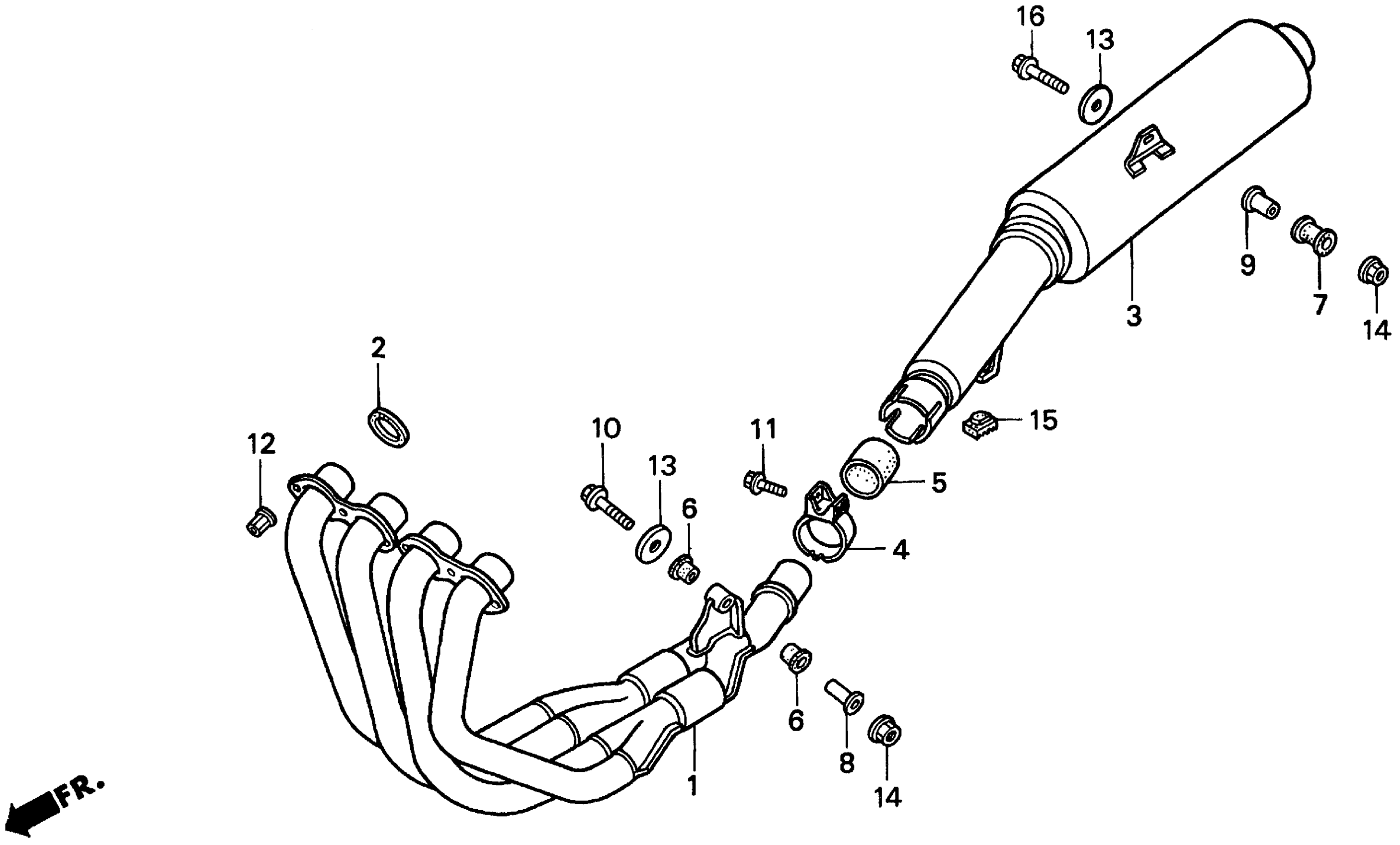

Honda CBR600F3A (98) MOTORCYCLE, JPN, VIN# JH2PC250-WM700001 MUFFLER Diagram

PIPE, EX.

18150-MAL-602

Unavailable

GASKET, EX. PIPE

18291-MV9-000

$4.72

MUFFLER

18310-MAL-A00

Unavailable

BAND, MUFFLER

18371-MAL-602

Unavailable

GASKET, MUFFLER

18391-ML0-003

$29.28

RUBBER, MUFFLER MOUNTING

18421-KAF-000

$3.13

RUBBER, MUFFLER MOUNTING

18421-MB0-000

$6.34

COLLAR, MUFFLER MOUNTING

18422-MAL-600

$5.92

COLLAR, MUFFLER SETTING

18422-MB0-000

$6.61

BOLT, KNOCK (8X46)

90032-752-000

Unavailable

BOLT, FLANGE (8X35)

90161-ML7-000

$3.67

NUT, FLANGE (7MM)

90304-MM5-000

$4.94

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

RUBBER A, STAND STOPPER | (Optional).

95011-61000

$1.49

BOLT, FLANGE (8X45)

95801-08045-00

$1.80
