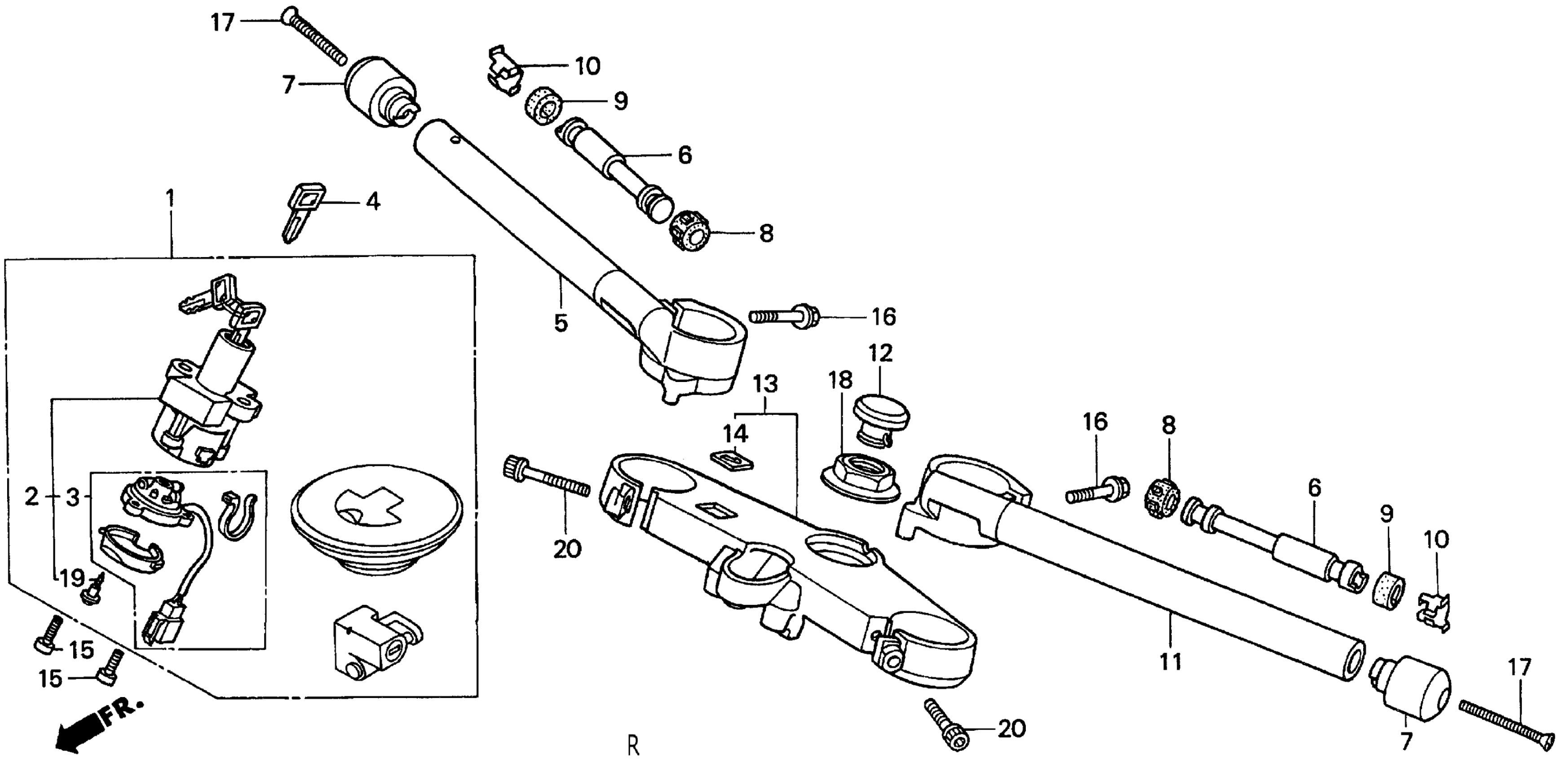

Honda CBR600F3A (98) MOTORCYCLE, JPN, VIN# JH2PC250-WM700001 HANDLEBAR Diagram

#

Description
Price

1

LOCK SET This part replaces 06350-MAL-505.

06350-MAL-515

Unavailable

1

LOCK SET

06350-MAL-515

Unavailable

1

LOCK SET This part replaces 35010-MAL-A20.

06350-MAL-515

Unavailable

1

LOCK SET This part replaces 35010-MAL-A21.

06350-MAL-515

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK

35012-MAL-505

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-MAL-A21.

35012-MAL-505

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-MAL-G01.

35012-MAL-505

Unavailable

3

BASE, CONTACT This part replaces 35101-MAL-A21.

35101-MAL-601

Unavailable

3

BASE, CONTACT

35101-MAL-601

Unavailable

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$9.08

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$9.08

5

HANDLEBAR, R.

53100-MV9-000

Unavailable

6

WEIGHT B, HANDLEBAR

53104-MV4-000

$23.20

7

WEIGHT, HANDLEBAR This part replaces 53105-MN4-000.

53105-MN4-010

$19.51

7

WEIGHT, HANDLEBAR

53105-MN4-010

$19.51

8

RUBBER A, HANDLE WEIGHT

53106-MJ0-000

$3.66

9

RUBBER A, HANDLE WEIGHT

53106-MV9-000

$3.13

10

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$4.78

11

HANDLEBAR, L.

53150-MV9-000

Unavailable

12

CAP, STEERING STEM NUT

53232-MJ4-670

$12.06

13

BRIDGE, FORK TOP

53300-MAL-600

Unavailable

14

EMBLEM, WING MARK

86150-MR8-300

Unavailable

15

BOLT, SOCKET (8MM)

90100-MN8-910

$4.70

16

BOLT, SPECIAL FLANGE (8X35)

90108-KT8-710

Unavailable

17

SCREW, OVAL (6X55)

90191-MK4-000

$4.70

18

NUT, STEERING STEM

90304-MJ4-670

$13.83

19

SCREW, TAPPING (3X16)

91059-KY2-711

$2.80

20

BOLT, SOCKET (8X40)

96700-08040-07

Unavailable
