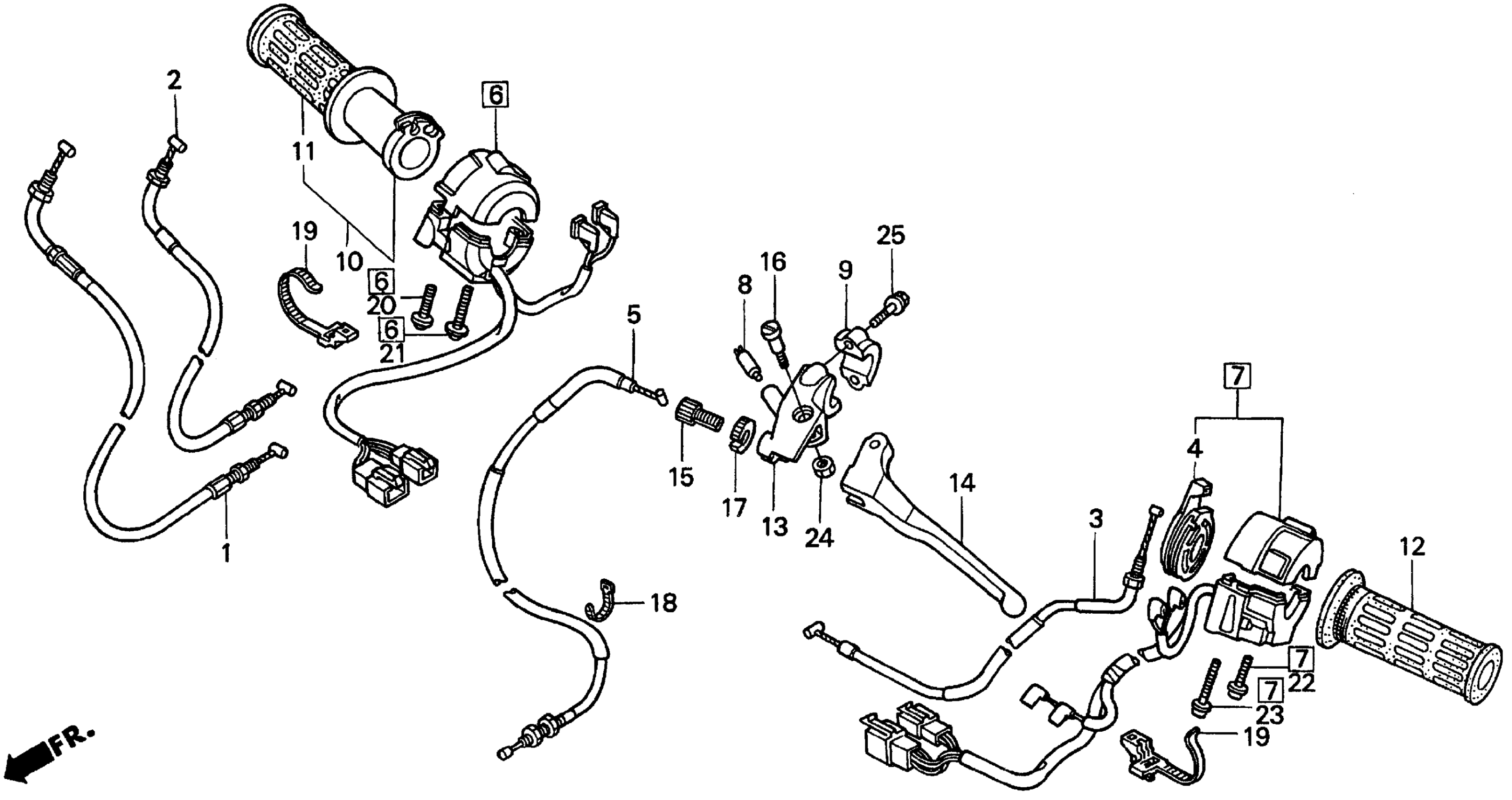

Honda CBR600F3A (98) MOTORCYCLE, JPN, VIN# JH2PC250-WM700001 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE This part replaces 17910-MAL-600.

17910-MV9-000

Unavailable

1

CABLE A, THROTTLE

17910-MV9-000

Unavailable

2

CABLE B, THROTTLE

17920-MAL-E00

Unavailable

3

CABLE, CHOKE

17950-MAL-600

Unavailable

4

LEVER, CHOKE

17962-MN8-003

$20.13

5

CABLE, CLUTCH

22870-MAL-E00

Unavailable

6

SWITCH SET, STARTER STOP This part replaces 35013-MAL-A20.

35013-MAL-A22

Unavailable

6

SWITCH SET, STARTER STOP This part replaces 35013-MAL-A21.

35013-MAL-A22

Unavailable

6

SWITCH SET, STARTER STOP

35013-MAL-A22

Unavailable

7

SWITCH SET, TURN SIGNAL (NOT AVAILABLE)

35020-MAL-A00

$90.11

8

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$21.91

9

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

10

GRIP, R.

53140-ML7-000

$31.72

11

GRIP, R. HANDLE

53165-ML7-010

$16.09

12

GRIP, L. HANDLE

53166-ML7-000

$16.09

13

BRACKET, HANDLEBAR

53172-KT8-710

$34.54

14

LEVER, L. HANDLE

53178-KV3-000

$20.30

15

BOLT, CLUTCH WIRE ADJUSTING

53192-349-690

$7.04

16

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

17

NUT, FIXING

90321-MR8-000

$5.79

18

BAND, WIRE HARNESS

90652-MA6-910

Unavailable

19

CLIP, HARNESS BAND (15)

90690-GHB-601

$2.26

20

SCREW-WASHER (5X20)

93892-05020-07

$1.49

21

SCREW-WASHER (5X25)

93892-05025-07

$1.49

22

SCREW-WASHER (5X35)

93892-05035-07

$1.49

23

SCREW-WASHER (5X45)

93892-05045-07

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
