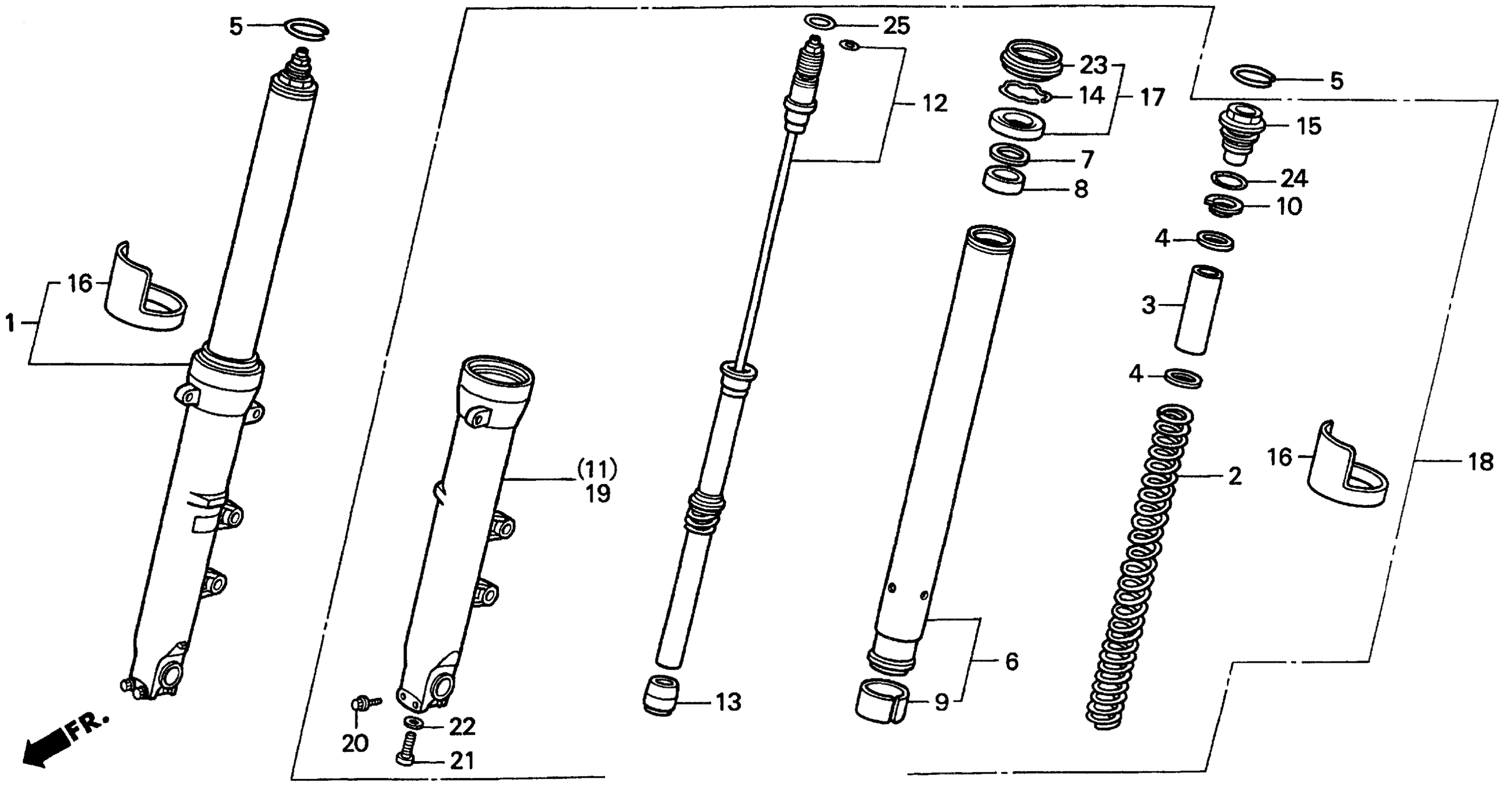

Honda CBR600F3A (98) MOTORCYCLE, JPN, VIN# JH2PC250-WM700001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-MAL-G01

Unavailable

2

SPRING, FR. FORK

51401-MAL-G01

Unavailable

3

COLLAR, SPRING

51402-MS2-003

$16.22

4

SEAT, SPRING (SHOWA)

51403-KF0-003

$4.47

5

RING, STOPPER

51405-MB4-003

$5.66

6

PIPE, FR. FORK

51410-MAL-601

Unavailable

7

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.66

8

BUSH, GUIDE (SHOWA)

51414-KCR-003

$12.58

8

BUSH, GUIDE (SHOWA) This part replaces 51414-MN5-003.

51414-KCR-003

$12.58

9

BUSH, SLIDER (SHOWA)

51415-KCR-003

$11.02

9

BUSH, SLIDER (SHOWA) This part replaces 51415-MM8-003.

51415-KCR-003

$11.02

10

SEAT, SPRING

51415-MS2-003

$11.90

11

CASE, R. (LOWER)

51420-MAL-G01

Unavailable

12

DAMPER, FR.

51430-MAL-G01

Unavailable

13

PIECE, OIL LOCK

51432-MS2-003

$29.04

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.20

15

BOLT, FR. FORK

51454-KV3-781

$53.46

16

PROTECTOR, FORK PIPE

51460-MT3-611

$10.59

17

SEAL SET, FR. FORK

51490-MN8-305

$31.62

18

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-MAL-G01

Unavailable

19

CASE, L. (LOWER)

51520-MAL-G01

Unavailable

20

BOLT, FLANGE (8X45)

90109-MR7-000

$4.60

21

BOLT, SOCKET (8X27)

90116-383-721

$4.77

22

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

23

DUST SEAL

91254-MM8-003

$16.06

24

O-RING (13.8X2.4) (NOK) This part replaces 91311-MR7-003.

91311-PH7-003

$2.22

24

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.22

25

O-RING (33.2X2.4)

91356-KF0-003

$3.51
