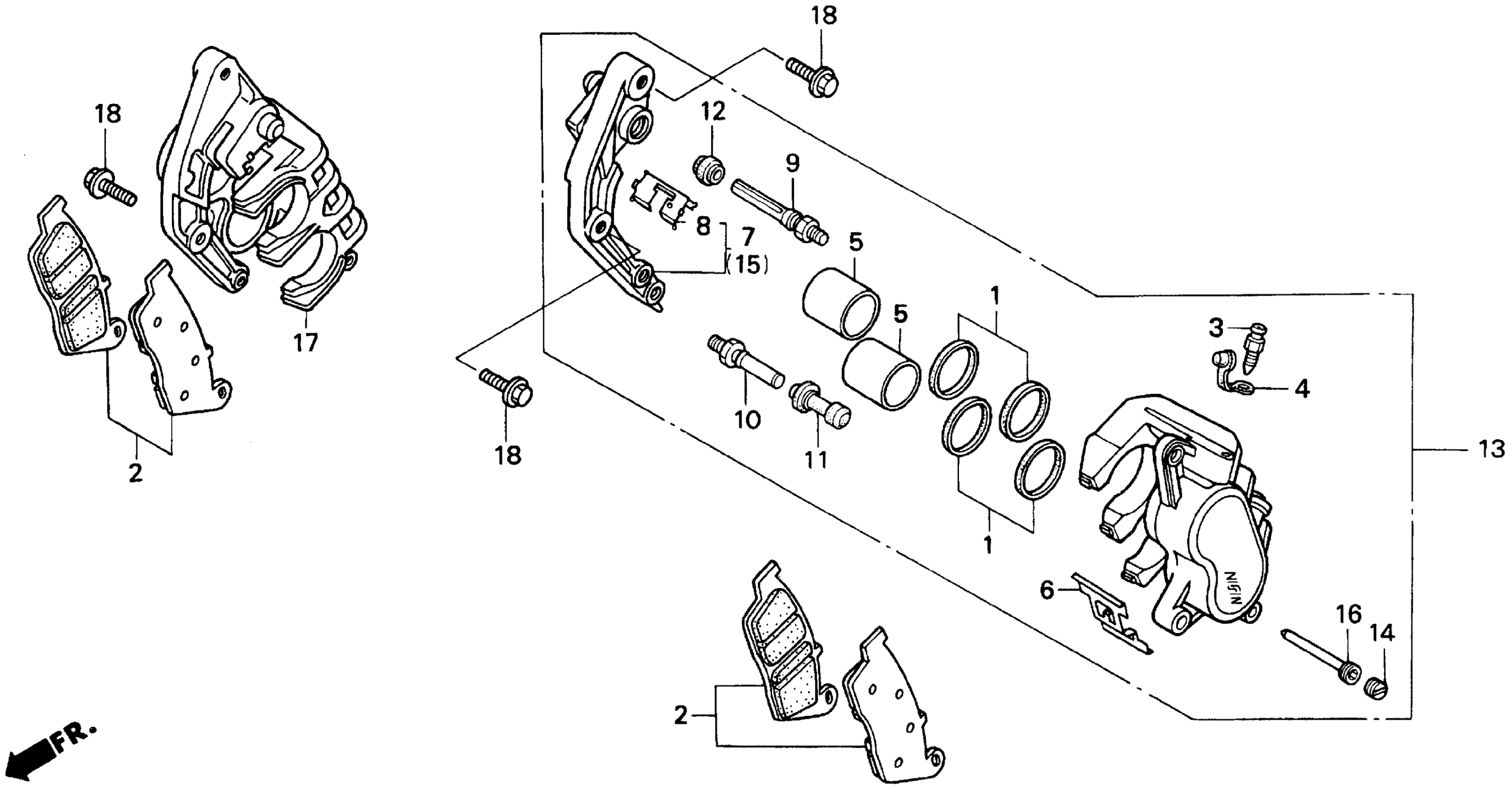

Honda CBR600F3A (98) MOTORCYCLE, JPN, VIN# JH2PC250-WM700001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-GE2-405

$11.41

PAD SET, FR. This part replaces 06455-MAL-G01.

06455-MAL-G03

$50.52

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-MN5-006

$37.88

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

BRACKET, L.

45110-MAL-601

Unavailable

RETAINER

45112-ML7-921

$5.46

BOLT A, PIN

45131-ML7-921

$15.44

BOLT, PIN

45131-166-016

$7.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-MAL-601

Unavailable

PLUG, PIN

45203-MG3-016

$5.12

BRACKET, R. FR.

45210-MAL-601

Unavailable

PIN, HANGER

45215-ML7-922

$10.67

CALIPER SUB-ASSY., R. FR. BRAKE (NISSIN)

45250-MAL-601

$467.02

BOLT, FLANGE (8X32)

90107-MT3-003

$4.49
