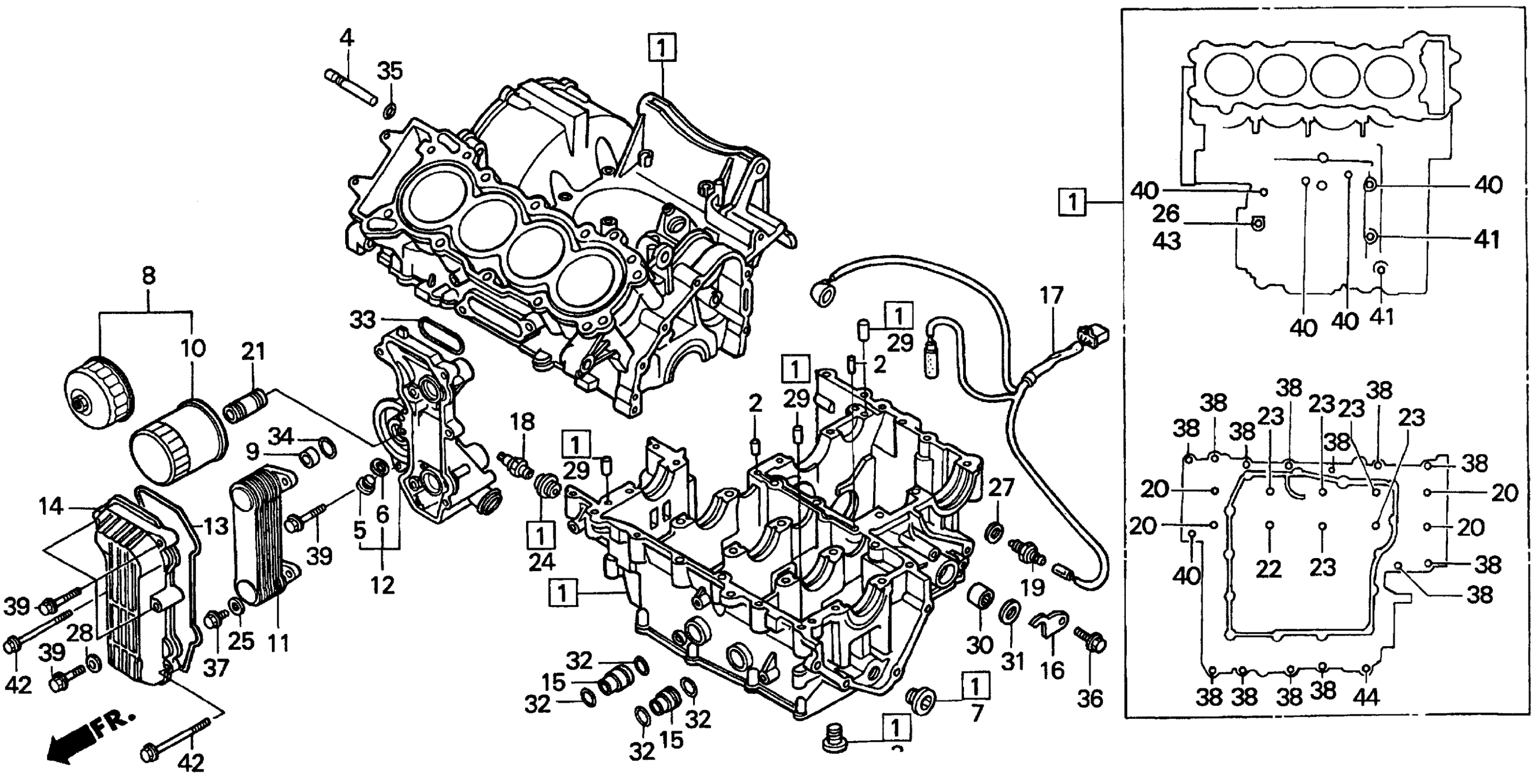

Honda CBR600F3A (98) MOTORCYCLE, JPN, VIN# JH2PC250-WM700001 CRANKCASE SET Diagram

#

Description
Price

1

CRANKCASE SET

11000-MAL-A00

Unavailable

2

ORIFICE (1.2MM)

11104-MW0-000

$19.30

3

BOLT, SEALING

11106-657-320

$9.16

4

ORIFICE (2MM)

11208-MAL-600

Unavailable

5

BOLT, SEALING (18MM)

12206-ML8-300

$9.11

6

WASHER, SEALING BOLT

12207-611-300

Unavailable

7

BOLT, SEALING (20MM)

12208-PR3-000

$9.11

8

FILTER SET, OIL | (Optional). This part replaces 15010-MW0-000.

15010-MKR-305

$20.30

9

COLLAR, OIL PASSAGE (20MM)

15328-MV9-670

$4.15

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

11

CORE, OIL COOLER

15600-MAL-601

Unavailable

12

BODY, OIL COOLER

15610-MAL-600

Unavailable

13

GASKET, OIL COOLER COVER

15615-MV9-670

$11.84

14

COVER, OIL COOLER

15621-MV9-670

Unavailable

15

COLLAR, OIL COOLER

15622-MV9-670

Unavailable

16

PLATE, SPINDLE

24612-MAL-600

$9.75

17

SUB-WIRE A

32101-MAL-J00

Unavailable

18

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

19

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$18.90

20

BOLT, UBS (8X100)

90004-MAL-A00

$7.82

21

BOSS, OIL FILTER

90019-MB0-000

$8.61

22

BOLT, UBS (8X88)

90024-MAL-A00

$7.48

23

BOLT, UBS (8X75)

90041-MAL-A00

$7.44

24

BOLT, SEALING (20MM)

90048-MAL-600

$11.87

25

WASHER, PLAIN (6.5X15)

90401-ZA0-000

$1.49

26

WASHER, SEALING (8MM)

90442-028-000

$1.77

27

WASHER, NEUTRAL

90443-MJ6-000

$1.92

28

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

29

PIN, DOWEL (10X16)

90701-MV9-670

$4.30

30

BEARING, NEEDLE (14X22X16)

91106-KM1-013

$19.13

31

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

32

O-RING (17.3X2.4)

91304-PS5-003

$3.21

33

O-RING (50X2.5)

91305-KK3-830

$5.05

34

O-RING (19.8X2.4)

91310-PH7-000

$3.11

35

O-RING (6X1.5) (N0K)

91315-PC9-004

$1.69

36

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

37

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

38

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

39

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

39

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

40

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

41

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

42

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

43

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

44

BOLT, FLANGE (10X75)

95701-10075-00

$2.44
