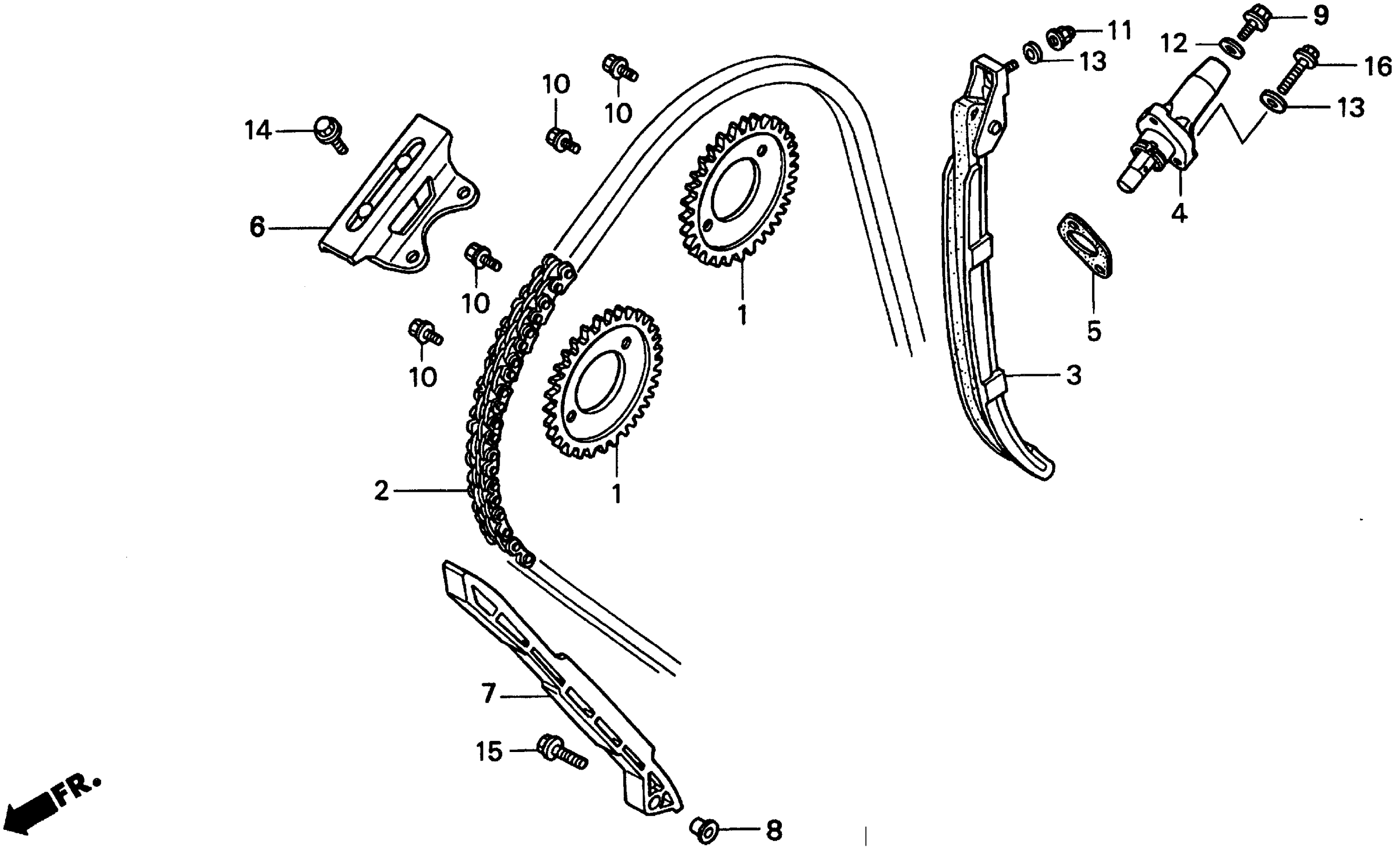

Honda CBR600F3A (98) MOTORCYCLE, JPN, VIN# JH2PC250-WM700001 CAM CHAIN Diagram

#

Description
Price

1

SPROCKET, CAM

14321-MAL-A00

Unavailable

2

CHAIN, CAM (116L) (BORG WARNER) This part replaces 14401-MAL-602.

14401-MEE-003

$67.76

2

CHAIN, CAM (116L) (BORG WARNER)

14401-MEE-003

$67.76

3

TENSIONER, CAM CHAIN

14510-MAL-601

$89.44

4

LIFTER ASSY., TENSIONER This part replaces 14520-MAL-A01.

14520-MBZ-K01

$77.07

4

LIFTER ASSY., TENSIONER This part replaces 14520-MBZ-K00.

14520-MBZ-K01

$77.07

4

LIFTER ASSY., TENSIONER

14520-MBZ-K01

$77.07

5

GSKT, TENSIONER HOLE This part replaces 14523-MAL-A00.

14523-MAL-A02

$2.80

5

GSKT, TENSIONER HOLE This part replaces 14523-MAL-A01.

14523-MAL-A02

$2.80

6

GUIDE B, CAM CHAIN

14546-MAL-600

$59.53

7

GUIDE, CAM CHAIN

14620-MV9-671

Unavailable

8

COLLAR (8MM)

14626-MV9-670

Unavailable

9

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$2.95

10

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.82

11

NUT, CAP (6MM)

90201-415-000

$1.99

12

WASHER, SEALING (6MM)

90442-397-000

$2.60

13

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

14

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

15

BOLT, FLANGE (8X32)

95801-08032-00

$1.91

16

BOLT, SOCKET (6X25)

96600-06025-00

$1.74
