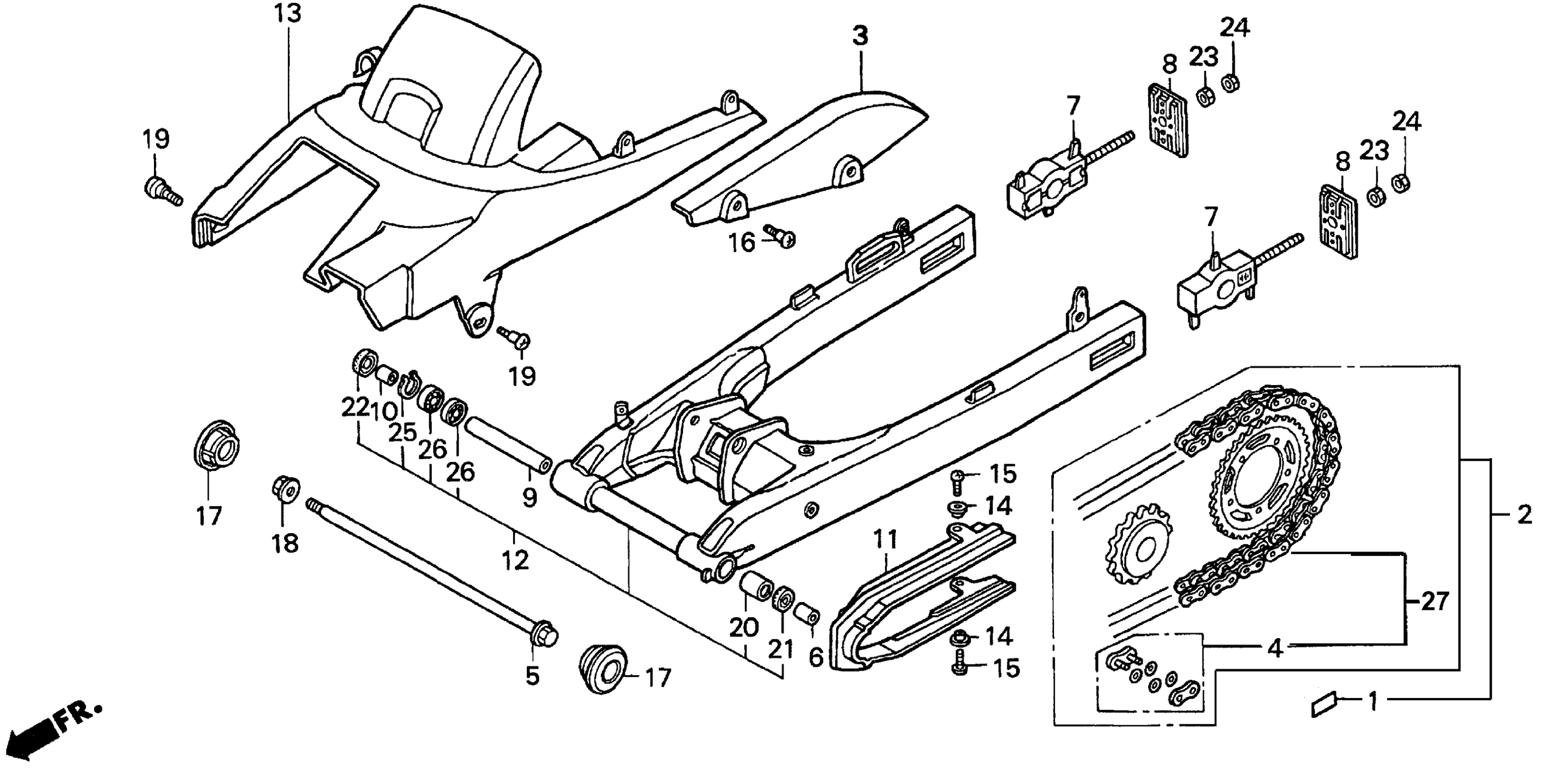

Honda CBR600F3A (97) MOTORCYCLE, JPN, VIN# JH2PC250-VM600001 SWINGARM Diagram

#

Description
Price

2

CHAIN KIT, DRIVE (102L-120L) This part replaces 06406-MAL-G00.

06406-MAL-G02

Unavailable

2

CHAIN KIT, DRIVE (102L-120L) This part replaces 06406-MAL-G01.

06406-MAL-G02

Unavailable

2

CHAIN KIT, DRIVE (102L-120L)

06406-MAL-G02

Unavailable

3

CASE, DRIVE CHAIN (A)

40510-KY2-700

Unavailable

4

MASTER LINK SET (DAIDO)

40535-MAL-G01

$7.98

4

MASTER LINK SET (RK EXCEL)

40535-MAL-G02

$8.49

5

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

52101-MAL-600

Unavailable

6

COLLAR, L. PIVOT

52106-MT7-000

Unavailable

7

TENSIONER, CHAIN

52120-MV9-010

$29.40

8

PLATE, CHAIN TENSIONER

52121-MV9-000

Unavailable

9

COLLAR, PIVOT DISTANCE CENTER

52141-MAL-600

Unavailable

10

COLLAR, R. PIVOT

52142-MAL-600

Unavailable

11

SLIDER, CHAIN

52170-MAL-600

Unavailable

12

SWINGARM SET *NH146M* (ACCURATE SILVER METALLIC)

52200-MAL-305ZA

Unavailable

13

FENDER, RR.

80201-MAL-A00

Unavailable

14

COLLAR

81312-GJ5-000

$3.31

15

SCREW, PAN (6X16)

90156-MV9-000

Unavailable

16

SCREW, SPECIAL (6X10)

90165-MV9-000

$4.99

17

CAP, R. SWINGARM PIVOT

90302-MN4-781

$11.69

18

NUT, U (14MM)

90305-GE8-003

$3.86

19

SCREW, SPECIAL (6X11)

90381-MB2-000

$3.60

20

BEARING, NEEDLE (NTN)

91071-MT7-003

$24.23

21

DUST SEAL (25X33X4)

91202-MAL-601

$6.96

22

DUST SEAL (23X35X5)

91214-MAL-601

$8.21

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

NUT, HEX. (8MM)

94030-08000

$1.49

25

CIRCLIP, INNER (35MM)

94520-35000

$1.84

26

BEARING, RADIAL BALL (6003)

96100-60030-10

$14.15

27

CHAIN SET, DRIVE (DID525HV-112L-120L) (DAIDO) (NA USE ALT:40540-MAL-G02)

06405-MAL-P00

Unavailable

27

CHAIN SET, DRIVE (RK525ROZ1) (112L-120L) (RK EXCEL) (NA USE ALT:40540-MAS-003)

06405-MAL-P10

Unavailable
